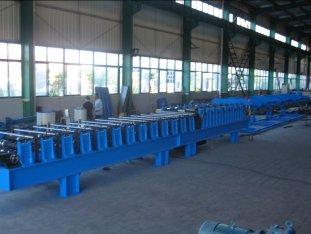

5.5kw Hydraulic Station Power Steel Sheet Forming Machine for IBR Roof in One Line
5.5kw Hydraulic Station Power Steel Sheet Forming Machine for IBR Roof in One Line
5.5kw Hydraulic Station Power Steel Sheet Forming Machine for IBR Roof in One Line
5.5kw Hydraulic Station Power Steel Sheet Forming Machine for IBR Roof in One Line
5.5kw Hydraulic Station Power Steel Sheet Forming Machine for IBR Roof in One Line
5.5kw Hydraulic Station Power Steel Sheet Forming Machine for IBR Roof in One Line
5.5kw Hydraulic Station Power Steel Sheet Forming Machine for IBR Roof in One Line
5.5kw Hydraulic Station Power Steel Sheet Forming Machine for IBR Roof in One Line
5.5kw Hydraulic Station Power Steel Sheet Forming Machine for IBR Roof in One Line
5.5kw Hydraulic Station Power Steel Sheet Forming Machine for IBR Roof in One Line
Specifications
Place of Origin :
China
Brand Name :
DB
Model Number :
According to profile
Certification :
CE & SGS
MOQ :
1
Packaging Details :
1.nude package and fixed by steel rope. 2.A full set of 40GP container.
Delivery Time :
35days
Payment Terms :
TT/LC
Supply Ability :
5 sets/month
Price :
USD20000-35000/set
Voltage :
380V 50Hz 3phases
Tile type :
Colored Steel
Use :
Roof
Condition :
New
Weight :
4.5tons
Raw material :
Color Steel Sheet
Description

5.5kw Hydraulic Station Power Steel Sheet Forming Machine for IBR Roof in One Line

Application:

The products are widely used in building the steel-structure large-scale warehouse, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses.

Technical Parameters:

1) Hydraulic uncoiler with coil car (depend on customer)

a. Single arm Hydraulic expanding

b. Moto power of hydraulic uncoiler: 5.5KW

c. Moto power of coil car: 2.2KW

d. Working distance of coil car: 500mm

e. Hydraulic station power: 4KW

f. Capacity (Max):5MT

g. Coil Width(Max.):1300mm

2) Roll forming system

a) Main motor power: 5.5kw

b) Drive: Chain

c) Main shaft dia: ￠76mm, material: 45# refined forge steel

d) Roller material: 45# forge steel, quenched treatment, chrome coated 0.05mm

e) Roll station:16stations

f) Raw material: Color steel and galvanized steel

g) Thickness of raw material: 0.3-0.9mm

h) Width of material: 1219mm and 1220mm

i) Working Switch: Adopt clutch to switch the roll forming machine upper or below running.

j) Working speed: 10m--15m/min(Exclude punching time)

k) PLC: YASKAWA made in Japan. 380V 50HZ

l) Computer operating panel: touching screen

3) Hydtraulic Cutting system

a) Hydraulic cutting

b) Hydraulic power:3KW

c) Blade material: Cr12mov, quenched 58°-62°

d) Working pressure:16mpa

Advantage:

First in quality
First in time
First in price
First in services
