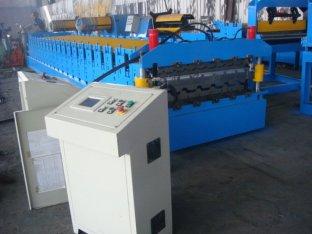

Customized 380V 50Hz Double Layer For IBR &Corrugated Roll Forming Machine
Customized 380V 50Hz Double Layer For IBR &Corrugated Roll Forming Machine
Customized 380V 50Hz Double Layer For IBR &Corrugated Roll Forming Machine
Customized 380V 50Hz Double Layer For IBR &Corrugated Roll Forming Machine
Customized 380V 50Hz Double Layer For IBR &Corrugated Roll Forming Machine
Customized 380V 50Hz Double Layer For IBR &Corrugated Roll Forming Machine
Customized 380V 50Hz Double Layer For IBR &Corrugated Roll Forming Machine
Customized 380V 50Hz Double Layer For IBR &Corrugated Roll Forming Machine
Specifications
Place of Origin :
China
Brand Name :
DB
Model Number :
According to profile
Certification :
CE/ISO
MOQ :
1
Packaging Details :
1.nude package and fixed by steel rope. 2.A full set of 40GP container.
Delivery Time :
35days
Payment Terms :
TT/LC
Supply Ability :
5sets/month
Price :
USD20000-35000/set
Voltage :
or as the customer's requirement
Use :
Roof/wall
Condition :
New
Dimension(l*w*h) :
depend on design
Cutting blade material :
Cr 12 Mov
Roller stations :
14-20 stations
Description

Customize Double Layer Roll Forming Machine with 10 - 12Mpa Hydraulic Pressure
Application:
Double Layer Roll Forming Machine can separate produce corrugated roof and IBR roof in one line or similar two profiles.
The products are widely used in building the steel-structure large-scale warehouse, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses.


Technical Parameters:

Material Spec: Colored Steel Sheet; Galvanized Steel Sheet
Thickness of Coil Sheet: 0.3-0.8mm
Main Motor Power: 5.5KW
Forming Speed: 15-18M/MIN
Hydraulic Station Power: 5.5 KW
Quantity of Stands: 17 Stands
Total Weight: About 80000KGS
Controlling System: PLC
Hydraulic Pressure: 10-12Mpa
Index Error of Length: 10M ± 2mm
Voltage: 380V 3 Phase 60Hz or At Buyers Requirement


Main component:

  • Decoiler ---------------------------------------------- 1 Unit
  • Feeding guide ---------------------------------------1 Unit
  • main roll forming machine ------------------------ 1 Unit
  • Hydraulic cutting device -------------------------- 1 Unit
  • Hydraulic Station ------------------------------------1 Unit
  • PLC computer control ------------------------------1 Unit
  • Output table ----------------------------------------- 1 Unit


Advantage:

available for two profiles roof panel shared one frame, save the cost.
1) Used to produce different roof panels and wall panels
2) Produced panels have such advantages as below:
a) Fine profile
b) Attractive color
c) Agile connecting
d) Slightly curved
3) dual-level roll forming machine
4) We can design and manufacture different type of it to hit your particular profiles

Machine for refer:

Customized 380V 50Hz Double Layer For IBR &Corrugated Roll Forming Machine
