Highway Guardrail Roll Forming Machine Equipment 20m / Min Speed
Highway Guardrail Roll Forming Machine Equipment 20m / Min Speed
Highway Guardrail Roll Forming Machine Equipment 20m / Min Speed
Highway Guardrail Roll Forming Machine Equipment 20m / Min Speed
Highway Guardrail Roll Forming Machine Equipment 20m / Min Speed
Highway Guardrail Roll Forming Machine Equipment 20m / Min Speed
Highway Guardrail Roll Forming Machine Equipment 20m / Min Speed
Highway Guardrail Roll Forming Machine Equipment 20m / Min Speed
Highway Guardrail Roll Forming Machine Equipment 20m / Min Speed
Highway Guardrail Roll Forming Machine Equipment 20m / Min Speed
Highway Guardrail Roll Forming Machine Equipment 20m / Min Speed
Highway Guardrail Roll Forming Machine Equipment 20m / Min Speed
Specifications
Brand Name :
Dingbo
Model Number :
MZ2017021801
Certification :
ISO CE SGS
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
60,000 USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :
20 sets/month
Delivery Time :
55 days after receiving the deposit
Packaging Details :
nude package in 40 GP container
Voltage :
380v 50Hz, 380V 3phase
Material width :
depends on your requirements
Payment :
T/T or L/C
Line speed :
Up to 12m/min
Dimension :
8100*2230*2400mm
Type :
cold roll forming
Material :
PPGI
After sale service :
technician served overseas
Thickness :
3mm
Power(W) :
3KW-20.5KW
Description

Highway Guardrail Roll Forming Machine Equipment 20m / Min Speed

Production intruction

The line includes hydraulic decoiler, feeding guiding platform, leveling system, shear
device, punching system, roll forming system, cutting equipment, hydraulic station,
controlling system and two output tables for product.

Main technical parameters

1). Forming speed: about 20m/min
2). Decoiler Capacity: for optional
3). Coil Inner diameter: 500mm,600mm
4). Coil out diameter: 1700mm
5). Shearing motor: 2 X 1.1 KW
6). Pump Motor: 18.5 KW
7). Main Motor: 45KW(6phases)
8). Total Power: about 65 KW.
9). Material of forming rollers: D2 with quenched treatment
10). Material of shaft: High quality 45# steel with heat treatment.

After-sale serviecs

  • Engineer will give free training lessons to labors in buyer’s factory.
  • The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD50 for engineer.
  • During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
  • We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

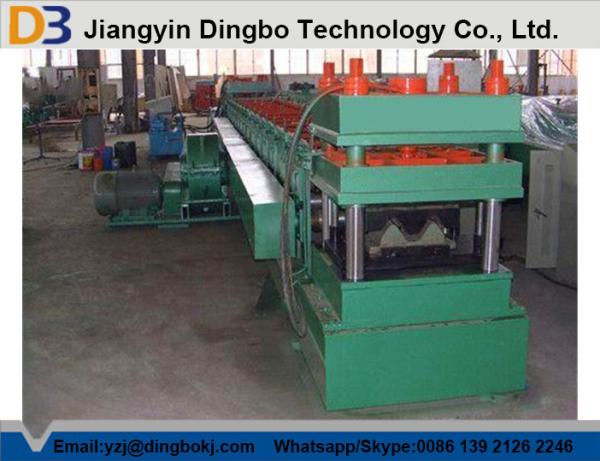

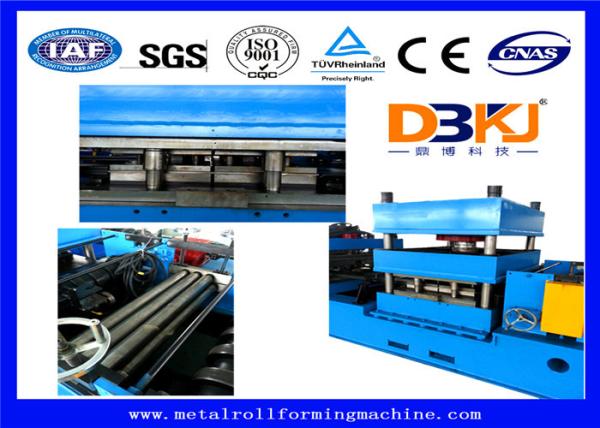

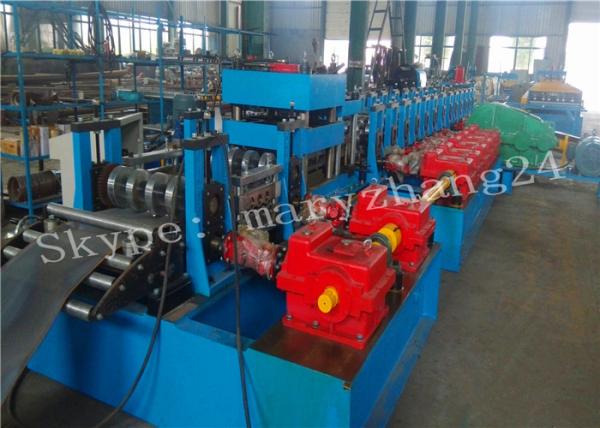

Pictures for reference

Highway Guardrail Roll Forming Machine Equipment 20m / Min Speed
