2 Years Warranty W-beam Guardrail Roll Forming Machine with CE.SGS Certificated

Description of W-beam guardrails:
W-beam guardrails are cost-effective longitudinal highway barriers designed to reduce the severity of run-off-road (ROR) collisions, prevent vehicular impact with roadside objects, and lessen the likelihood of vehicle overturning.
W-beam highway guardrails are the most common crash barrier used on Chinese highways due to their high effectiveness and inexpensive production costs.
Layout of guardrail rollformer:

Roll forming process for W-beam guardrail:
Two-head decoiler----11 roller straightening machine-----four pillar hydraulic punching & shearing machine----feeding mahine----12 passages forming machine----recoiler----collecting table----electrical cabinet
Technical parameters of two waves guardrail roll forming line:
1.Two head decoiler
Loading weight: 10T; Inner diameter: 550mm; Motor power: 7.5kw; Overall dimension: 2500*1300*2300mm;
2.Straightening machine
Roller diameter:100mm; Motor type:frequency; Number of the roller:11; Motor power:7.5kw; Overall size:1600*2300*1200mm;
3.Hydraulic punching and shearing machine
Cutting pressure:180T; Hydraulic motor power:7.5kw; Overall size:1600*1300*2000mm;
4.Feeding machine
Motor power:4kw; Overall size:3700*1800*1300mm;
5.Forming machine
Roller diameter: 80mm; Main motor power: 55kw; Overall size: 8600*3200*1400mm;
6.Collecting table
Overall size: 4500*500*730mm;
7.Main reducer model: ZQ650;
8.Forming mould material: GCr15;
9.Material of the punching head: T10; Material of shearing mould: Cr12;
10.Needed space of the production line(L*W*H): 26000*3700*2500mm;
11.Weight of full production line: 35T;
12.Total speed: 12m/s;
13.Workers required: 3 workers;
Finished guardrail:

Packed W-beam guardrails Steel guardrails Two waves guardrail


W-beam guardrails W-beam guardrails on highway W-beam highway guardrails

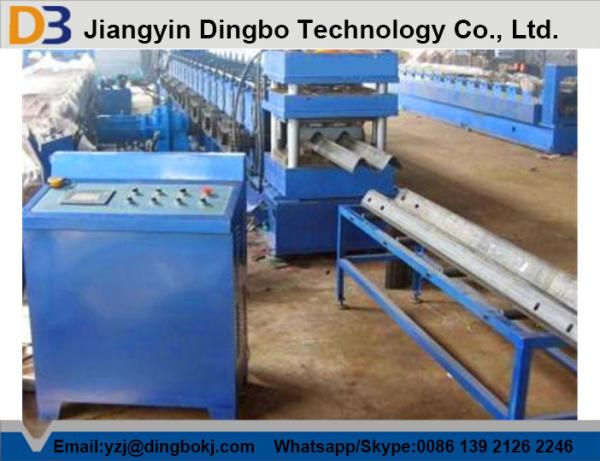

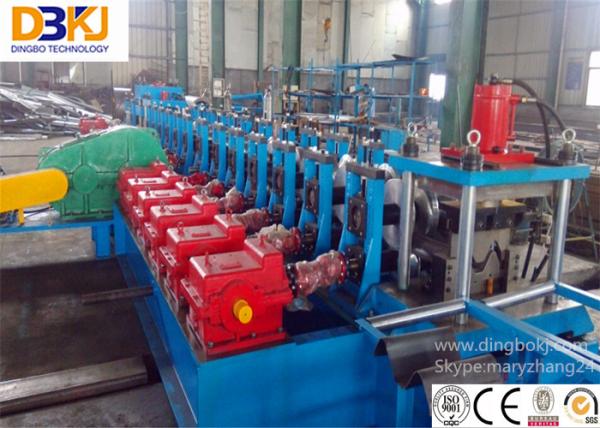

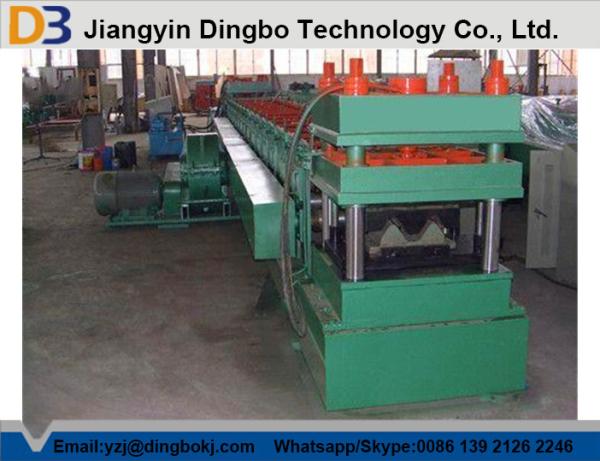

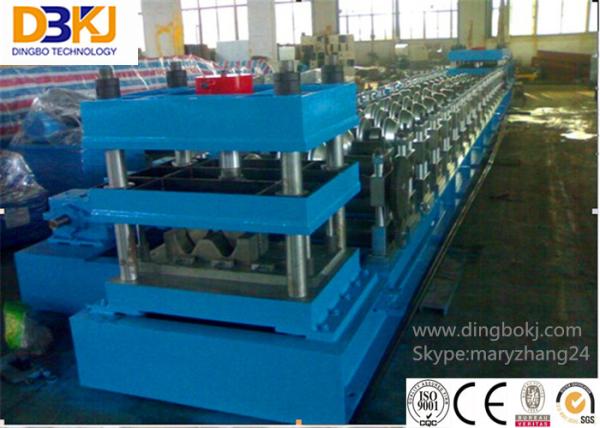

Pictures to refer

Certificates

Company Scene

After sales service:

1.Engineer will give free training lessons to labors in buyer’s factory.
2.The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer per day.
3.During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4.We will charge the buyer cost price of spare parts beyond 2 years and provide long-term technical guide.
