Specifications
Brand Name :
DB
Model Number :
YX25-250-1000
Certification :
CE.SGS.ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set
Price :
US $19,999 - 40,000 / Set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
10 Set/Sets per Month
Packaging Details :
nude package in 40 GP container
Color :
depend on your needs
Condition :
New
Tile type :
Colored Steel
Raw material :
PPGI/Galvanized Sheet
Cutting blade material :
Cr12 Mould Steel
Production capacity :
8-12m/min
Description

High Speed Double layer Roll Forming Machine with PLC control system

Product discription

1. Processing technique and deployment

Flow chart : Decoiler-- Roll Forming--PLC System—Hydraulic System –Pressing --Cutting —Output Table

Double Layer Roof Panel Roll Forming Machine Exhibition Halls Use

2. Components of line:

No.

Name

Unit

Qty

1

Decoiler

set

1

2

Main Machine for roll forming

set

1

3

Control System(PLC)

set

1

4

Pressing System

set

1

5

Cutting System

set

1

6

Output Table

set

1

3. Product data

NO.

Item

Parameter

Remark

1

Suitable material

Type

Galvanised/Color steel sheet

Thickness(mm)

0.3-0.8

Yield stress(Mpa)

550

Width (mm)

925

2

Forming speed (m/min)

35

Not including the time of cutting

3

Main machine motor(KW)

3?3

Depend on actual design

4

Cutting motor power(KW)

3

Depend on actual design

5

Decoiler motor power(KW)

2.2

Depend on actual design

6

Decoiler hydraulic station motor power (KW)

7

Depend on actual design

7

Pre-slitting motor power

0.55*2

8

Total power(KW)

23

Depend on actual design

9

Power

AC380V,50HZ, 3P

10

External dimensions(L×W×H,m)

24×3×2

Depend on actual desig

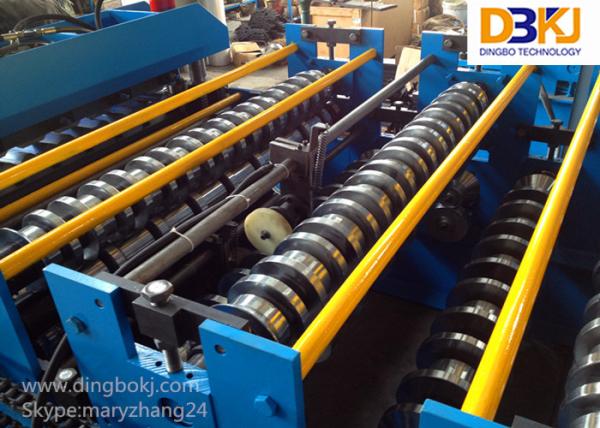

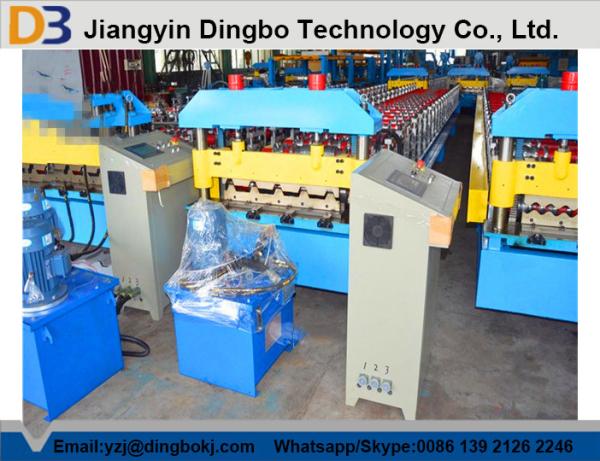

Pictures for Referrence

Double Layer Roof Panel Roll Forming Machine Exhibition Halls Use

Double Layer Roof Panel Roll Forming Machine Exhibition Halls Use

Double Layer Roof Panel Roll Forming Machine Exhibition Halls Use

Double Layer Roof Panel Roll Forming Machine Exhibition Halls Use

Double Layer Roof Panel Roll Forming Machine Exhibition Halls Use

Certificates

Double Layer Roof Panel Roll Forming Machine Exhibition Halls Use

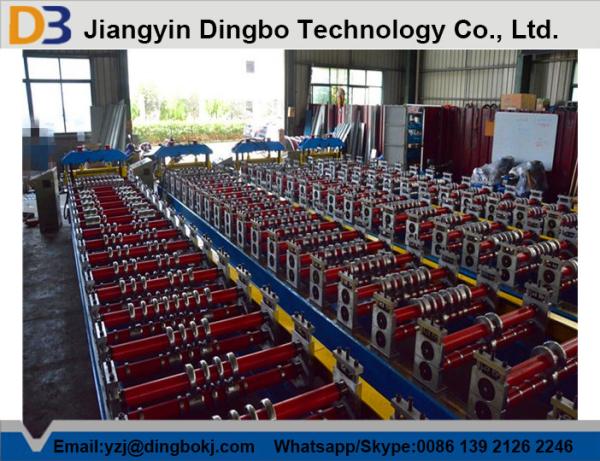

Company Scene

Double Layer Roof Panel Roll Forming Machine Exhibition Halls Use

FAQ

Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

Q: Once we've bought a machine from you, are you able to supply us with material?

A: We can assist you in finding the appropriate materials to suit your machine

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components

Q: What size decoiler can you supply us with?

A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler

Q: Do you have a warranty on your machines?

A: One year warranty excluding electrical components.

Q: What sales terms do you have?

A: Terms mutually agreed on and we do accept Letter of Credit by pre arrangement.

Q: Do you have instruction manuals?

A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings

Q: Once a machine arrives at our factory what happens then?

A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.

Q: What do I need to offload my machine from the container?

A: You are responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.

Q: My current machine rollers need to be replaced. Would you be able to assist me?

A: Yes. Send us your profile and specifications then we will manufacture the rollers for you

Q: What kind of controls do you use on your machines?

A: AMS, Delta, Schneider, Siemens, and Mitsubishi

Q: What is your delivery time?

A: Depending on the type of machine, duration of 25 days to 185 days from date of order.

Q: Do we receive any updates while machine is in the manufacturing process?

A: Yes.Regular updates on progress will be sent to you.
