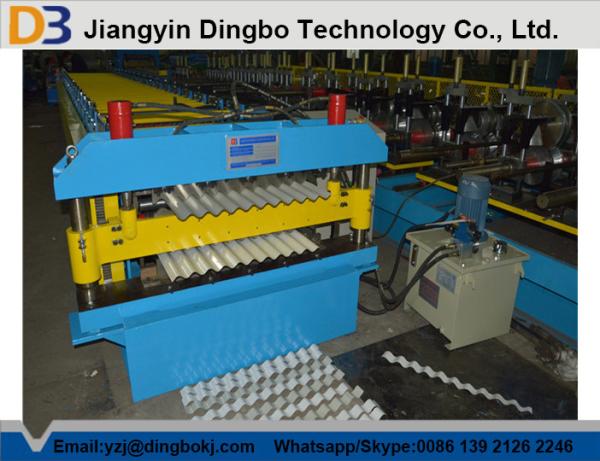

Three Phase Roof Corrugated Roll Forming Machine With High Production Speed
Three Phase Roof Corrugated Roll Forming Machine With High Production Speed
Three Phase Roof Corrugated Roll Forming Machine With High Production Speed
Three Phase Roof Corrugated Roll Forming Machine With High Production Speed
Three Phase Roof Corrugated Roll Forming Machine With High Production Speed
Three Phase Roof Corrugated Roll Forming Machine With High Production Speed
Three Phase Roof Corrugated Roll Forming Machine With High Production Speed
Three Phase Roof Corrugated Roll Forming Machine With High Production Speed
Specifications
Brand Name :
Dingbo
Model Number :
DBRP
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
10000~20000 USD/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets /month
Delivery Time :
Shipped in 30-70 days after payment
Packaging Details :
Export standard sea package with film and steel
Voltage :
380V,50HZ,3 phase
Weight :
5T
After-sales service provided :
Engineers available to service machinery overseas
Condition :
New
Tile type :
Colored Steel
Dimension(l*w*h) :
8700mm*1500mm*1500mm
Use :
Roof
Warranty :
1 Year
Control system :
PLC with touch screen
Roller material :
45#steel Chrome Plated
Product name :
price double layer steel roof and wall sheet roller machine
Color :
as customer's requir
Raw material :
Galvanized Sheet
Power(w) :
5.5kw
Shaft material :
high grade 45# steel
Cutting blade material :
Cr 12 high grade steel
Step of rollers :
16
Type :
Roll Forming Machine
Production capacity :
10-15m/min
Description

Corrugated roll forming machine

Product Descriptions

The corrugated roll forming machine can produce roofing, wallboard, building appliances and corrugated tiles for transportation. The corrugated roll forming machine can use galvanized coils, pre-painted rolls or aluminum coils as the board.
1. The whole machine adopts PLC control, which has high work efficiency and can be used for mass production without operation.
2. The thickness of the formed plate has multiple dimensions, and the application range is wide, which can meet the needs of different users.
3.Adopt advanced hydraulic drive, automatic cutting after forming, no deformation, no waste, high safety factor

Version to design

Three Phase Roof Corrugated Roll Forming Machine With High Production Speed

Working Flow

Decoiler --Forming system -- Cutting device-- Output table

Three Phase Roof Corrugated Roll Forming Machine With High Production Speed

Product Parameters

Suitable material Color steel sheet
Material thickness 0.3-0.8mm
Forming speed 10-15m/min
Main motor power 5.5 Kw(Depend on final design)
Hydraulic cutting power 3 Kw(Depend on final design)
Roller material 45#steel Chrome Plated
Cutting blade material Cr12 Mould Steel
Shaft material

High quality 45# steel with heat treatment.
Shaft diameter 76mm
Control system PLC with touch screen(Panasonic/Siemens)
Machine’s size About 10.5m×1.8m× 1.5m (Depend on final design)

Main Components

No. Name Qty
1 Decoiler 1
2 Main roll forming machine 1
3 PLC Control box 1
4 Hydraulic station 1
5 Output table 2

Machine pic

Three Phase Roof Corrugated Roll Forming Machine With High Production Speed

Three Phase Roof Corrugated Roll Forming Machine With High Production Speed

Three Phase Roof Corrugated Roll Forming Machine With High Production Speed

Application

Three Phase Roof Corrugated Roll Forming Machine With High Production Speed

Our service

Designing:

After order confirmation, we start to design the machine, such as the basement, structure, rollers, shafts, power, cutting device, programs and so on.

Making:

The main parts, like rollers and shafts are produced by ourselves. We have several high-precision CNC lathe and other kinds of new machine tools, so that the quality and precision can be controlled.

Assembling:

The machines are assembled by technicians with years of experience, which can help workers improve the production efficiency and machine’s quality.

Testing:

Raw material of different specifications are prepared for testing. And during test, long enough material is used. Because if the material is not long enough, some defects can not be exposed.

Delivery:

Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.

Main features

1. We can make and design all kinds of roll forming machine according to customer's requests.


2. This is a very perfect and durable equipment. We have more than 20 years experiences.


3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.


4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.


5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
