Hydraulic Hot Roll Mild Steel Simple Coil Slitting Machine Speed 0-30M / Min High Precision
Hydraulic Hot Roll Mild Steel Simple Coil Slitting Machine Speed 0-30M / Min High Precision
Hydraulic Hot Roll Mild Steel Simple Coil Slitting Machine Speed 0-30M / Min High Precision
Hydraulic Hot Roll Mild Steel Simple Coil Slitting Machine Speed 0-30M / Min High Precision
Specifications
Brand Name :
Dingbo
Model Number :
DBSL
Certification :
ISO CE SGS
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
100000 USD/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :
10 sets /month
Delivery Time :
Shipped in 30-70 days after payment
Packaging Details :
Export standard sea package with film and steel
Raw material :
Steel coil
Roller material :
45# Steel
Warranty :
2 Years
Control system :
PLC ( Panasonic)
Production Capacity :
0-30m/min
Accuracy :
±0.05
Product name :
Industrial Speed 0-30M/min Precision Hydraulic Hot Roll Mild Steel Simple Slitting Line
Color :
Customers Requirement
Description

Hydraulic Hot Roll Mild Steel Simple Coil Slitting Machine Speed 0-30M / Min High Precision


Brief descriptions

Simple slitting line is a length ways cutting production line, for cutting metal sheet strip.
Slitting line can uncoil metal sheet strip coil, then slit(cut) the metal sheet strip longitudinal, then rewind the stilted metal sheet strips, for getting narrow metal sheet strip coils.Slitting line are for metal sheet strip coil cutting service center, press machine stamping & punching, metal sheet strip processing,etc.


Working flow

From right to left are: Entry coil car→Hydraulic decoiler →Hydraulic press and pinch device→Hydraulic cutter→Looper 1→Side guide device→ Slitter→Scrap winder→Looper 2→Tension stand →Recoielr→Exit coil car

Main technical parameter

Material Color-coated/Galvanized,/Alu-zinc steel sheet
Material yield stress 235-345Mpa
Coil thickness 0.40-3.00mm
Coil width 400-1300mm
Working speed 0-120m/min
Power requirement Main motor power 7Kw
Decoiler 5 tons hydraulic decoiler with coil dia. 508mm
Slitting blades max.9 set blades
Max.slitting strips 10 strips

Machine components

No Name Quantity
1 Entry coil car 1 set
2 Hydraulic decoiler 1 set
3 Hydraulic press and pinch device 1 set
4 Hydraulic cutter 1 set
5 Looper 1 1 set
6 Side guide device 1 set
7 Slitter 1 set
8 Scrap winder 1 set
9 Looper 2 1 set
10 Tension stand 1 set
11 Recoiler 1 set
12 Exit coil car 1 set
13 Hydraulic system 1 set
14 Electrical system 1 set

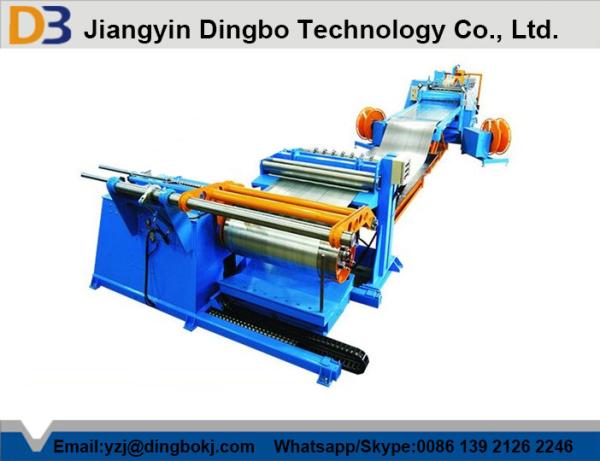

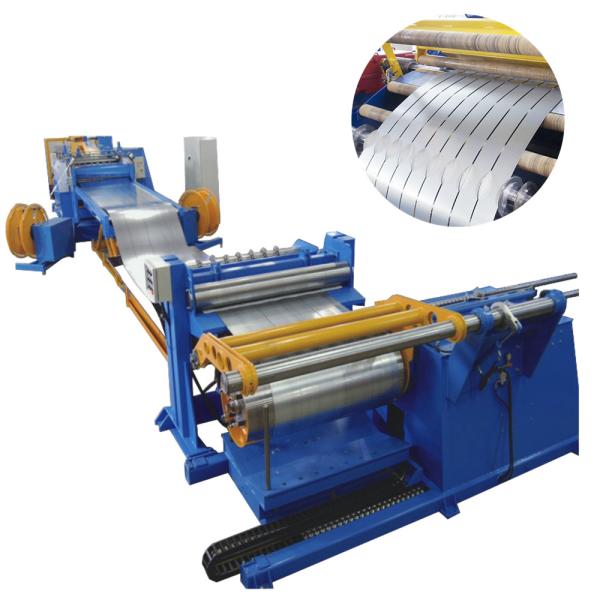

Machine picture

Hydraulic Hot Roll Mild Steel Simple Coil Slitting Machine Speed 0-30M / Min High Precision

Our company

Jiangyin Dingbo Technology Co., Ltd. is professional manufacturer and exporter specializing in designing, manufacturing, technology developing, sales and services in building materials machinery whcih mainly include all kinds of roll forming machine, tube making machine, slitting line and cut to length line,and discontinuous PU sandwich panel production line and embossing machine.

The main products of our factory is color steel roofing and wall roll forming machine, pre-painted steel forming machine, floor deck forming machine, automatical C/Z Purlin forming machine, Guardrail forming machine, Racking roll forming machine, cable tray roll forming machine, Glazed Tile forming machine, DownPipe forming machine, Roller shutter door machine,tube mill, steell and aluminum embossing machine,steel slitting and cut to length line, PU sandwich panel line and so on.

The products are widely used in such as building structure, steel structure warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.

Dingbo Technology is located in Wuxi city, Jiangsu province which is very close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.


FAQ

1. Does one machine can only produce one size?

Not exactly, it depends on which profile the customer want to produce.

2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.

4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.

5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.

7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8.What's the warranty period?

12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.


9.Can we arrange shipment?

Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
