Full Automatic High Speed Guard Pin Gear Box Foof Tile Roll Forming Machine

Profile Drawing

Working Flow

A.Main Data

1)Main motor power: 5.5kw
2)Drive: gear box
3)Main shaft dia: 76mm material: 45 forge steel and quenched
4)Roller material: 45# forge steel ,chrome coated 0.05mm
5)Roll station: 20 steps
6)Type of forming machine: roof panel
7)Raw material: GI steel 0.3-0.8mm
8)Width of feeding material: 1250mm
9)Working speed: 10-15m/min(Exclude cutting time)
10)Length Tolerance: ±1.5mm
11)Weight of machine: about 5ton
12)Size of machine: About 7500×1800×1500mm L x W x H
13)cof machine: yellow and blue
14)Coder: Omron, made in Japan
15)Control: PLC Panasonic, made in Japan. 380V 50HZ(Also depend on customer requirement)
16)Computer operating panel: touching screen
17)Cutting: Hydraulic cutting
18)Auto cutting when reach the set length. Hydraulic power: 3KW
19)Blade material: Cr12,quenched 55°-58°
20)Working pressure:16mpa

B. Manual Decoiler
1)Capacity: 5ton
2)Feeding width: MAX 1250mm
3)Expanding range: 480-520mm

C. Passive Output Table
1) Valid length: MAX 4m
2) Capacity: 3ton
3) Max loading height: 100mm
4) Transport: by roller passively

Character of Main Structure:

a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency.

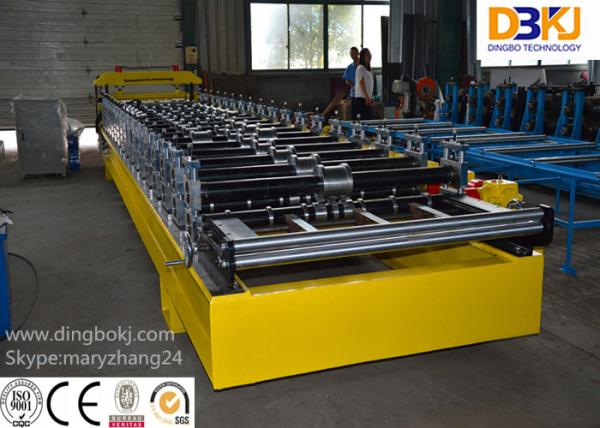

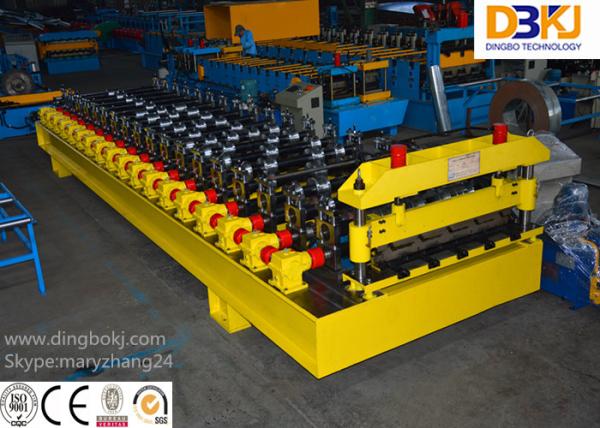

Photos for Refer:
