Specifications
Brand Name :
Dingbo
Model Number :
According to the Profile
Certification :
ISO SGS CE
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
US$ 15,000~50,000
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 Sets per Month
Delivery Time :
30 ~50 Days After Receiving the Deposit
Packaging Details :
Nude Package in 40 GP Container
Color :
Depends on Customers
Condition :
New
Use :
Roof/wall
Warranty :
1 Year
Raw material :
PPGI/Galvanized Sheet
Voltage :
380v/50 Hz
Description

CE Certificated Steel C Purlin Roll Forming Machine in 15m/min Forming Speed

The profile drawing

The thickness of Material: 2.0-3.0mm

Customized roof making machine Galvanized Steel Roof Panel Roll Forming Machine With 15m / Min Forming Speed

Working flow

Customized roof making machine Galvanized Steel Roof Panel Roll Forming Machine With 15m / Min Forming Speed

Main Specification

Manual uncoiler
Capacity 5ton
Feeding width MAX 600mm
Expanding range 460-520mm

Main roll forming system
Main motor power 15kw
Main shaft dia 76mm material: 45forge steel and quenched
Roller material Gcr15 bearing steel forge steel and quench treatment hardness 58-62, chrome coated 0.05mm
Roll station 12 groups
Raw material Galvanized steel 2.0-3.0mm thick
Width of purlin 100-300mm adjustable
Working speed 10m--15m/min(Exclude cutting time)
Weight of machine about 6ton
Size of machine About 9500×1000×1500mm L x W x H
Color of machine up to you
Coder Omron
Omron PLC Panasonic, made in Japan. 380V 50HZ, 3 phases
Computer operating panel touching screen
Punching Hydraulic punching before roll forming
Cutting Hydraulic cutting after roll forming, cutting when reach the set length.
Hydraulic power 5.5KW
Blade material Cr12,quenched 58°-62°
Working pressure 20mpa
Cutting tolerance +/- 1.5mm
Random 3 pieces of cutters

Photo for refer

Manual uncoiler: 1 SET

Customized roof making machine Galvanized Steel Roof Panel Roll Forming Machine With 15m / Min Forming Speed

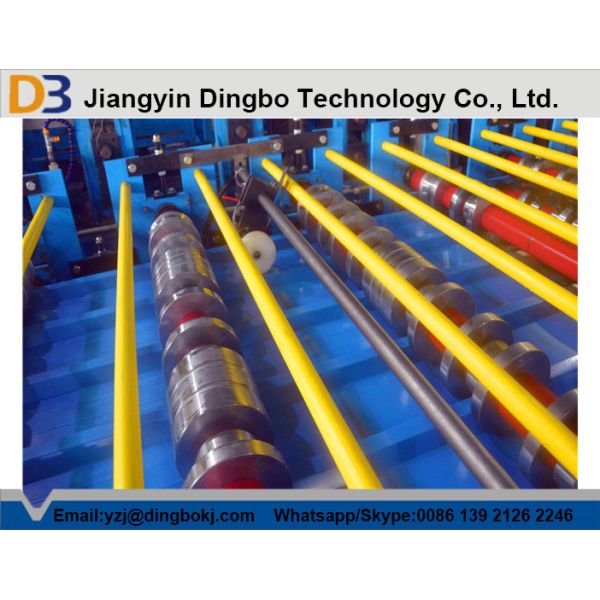

Rollers:
material: Gcr15 bearing steel forge steel and quench treatment hardness 58-62, chrome coated0.05mm.

Customized roof making machine Galvanized Steel Roof Panel Roll Forming Machine With 15m / Min Forming Speed

Hydraulic Station: 1 SET
Hydraulic power: 5.5KW, Chinese Top Brand with CE certificate.

Customized roof making machine Galvanized Steel Roof Panel Roll Forming Machine With 15m / Min Forming Speed

PLC operation control platform: 1 SET. Panasonic, made in Japan.

Customized roof making machine Galvanized Steel Roof Panel Roll Forming Machine With 15m / Min Forming Speed

Operation panel of PLC: Touch Screen

Customized roof making machine Galvanized Steel Roof Panel Roll Forming Machine With 15m / Min Forming Speed

Electricals of PLC: Converter: YASKAWA, made in Japan. 380V, 50HZ, 3 Phases

Customized roof making machine Galvanized Steel Roof Panel Roll Forming Machine With 15m / Min Forming Speed

Coder: Omron, made in Japan.

Customized roof making machine Galvanized Steel Roof Panel Roll Forming Machine With 15m / Min Forming Speed

Certificates:

Customized roof making machine Galvanized Steel Roof Panel Roll Forming Machine With 15m / Min Forming Speed

After sale survice

1.Engineer will give free training lessons to labors in buyer’s factory.
2.The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer per day.
3.During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4.We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
