Solar PV Bracket Roll Forming Equipment With Simense PLC Control For Solar Panel
Solar PV Bracket Roll Forming Equipment With Simense PLC Control For Solar Panel
Solar PV Bracket Roll Forming Equipment With Simense PLC Control For Solar Panel
Solar PV Bracket Roll Forming Equipment With Simense PLC Control For Solar Panel
Solar PV Bracket Roll Forming Equipment With Simense PLC Control For Solar Panel
Solar PV Bracket Roll Forming Equipment With Simense PLC Control For Solar Panel
Solar PV Bracket Roll Forming Equipment With Simense PLC Control For Solar Panel
Solar PV Bracket Roll Forming Equipment With Simense PLC Control For Solar Panel
Specifications
Brand Name :
DINGBO
Model Number :
DBCU
Certification :
CE ISO SGS
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
30000~50000 USD/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets /month
Delivery Time :
Shipped in 30-70 days after payment
Packaging Details :
Export standard sea package with film and steel
Use :
strut channel roll forming machine
Raw material :
Galvanized Steel
After-sales Service Provided :
Engineers available to service machinery overseas
Roller material :
GCr15
Shaft material :
High Grade No.45 Forged
Control system :
PLC with touch screen
Description

Solar PV bracket roll forming machine with Simense PLC control

Product Descriptions

Solar PV bracket roll forming machine produced solar strut can be moved according to the sun's rays and seasons. Just as in the first installation, the inclined plane of each solar panel can be fixed on the specified position by moving the fastener to adjust the bevel to meet the different angles of the light.

Working Flow

Decoiler ----- feeding ------ punching ------ roll forming ----- cutting ---- output table

Solar PV Bracket Roll Forming Equipment With Simense PLC Control For Solar Panel

Product Parameters

Item Parameters
According to your requirements
Model Type PPGI, GI, CR , Steel Coil
Thickness(mm) 1.0-3.0 mm
Yield strength(Mpa) 345
Forming speed(m/min) 0-25
Punching Device 1 Unit
Roller Stations About 17 stations; According to the final design
Roller material GCR15 steel, coated with chrome
Roller driven type Chain transmission
Control System PLC (Panasonic) as list in the note
Operation type Touch screen + button
Hydraulic system pressure( MPa ) 25
Hydraulic motor power ( KW ) 5.5
Main motor power(KW) 22
Shaft Material and DIA 80 mm, material is 45 # forge steel
Cutting Way Tracking hydraulic mould cutting
Electric Source 380V, 50HZ,3 phase; According to customer’s require
Way Of Drive Chain transmission
Dimension(L*W*H) Forming Section about 9m*0.8m*1.2m

Main models


No.		 Size Thickness

Surface Treatment

mm Inch Thickness Gauge
A 41x21 1-5/8x13/16" 1.0,1.5,2.0,2.5,2.75.3.0 19,16,14,12 HDG,PG,PC
B 41x22 1-5/8x7/8" 1.0,1.5,2.0,2.5,2.75.3.0 19,16,14,12 HDG,PG,PC
C 41x25 1-5/8x1" 1.0,1.5,2.0,2.5,2.75.3.0 19,16,14,12 HDG,PG,PC
D 41x41 1-5/8x1-5/8" 1.0,1.5,2.0,2.5,2.75.3.0 19,16,14,12 HDG,PG,PC
E 41x62 1-5/8x27/16" 1.0,1.5,2.0,2.5,2.75.3.0 19,16,14,12 HDG,PG,PC
F 41x82 1-5/8x3-1/4" 1.0,1.5,2.0,2.5,2.75.3.0 19,16,14,12 HDG,PG,PC

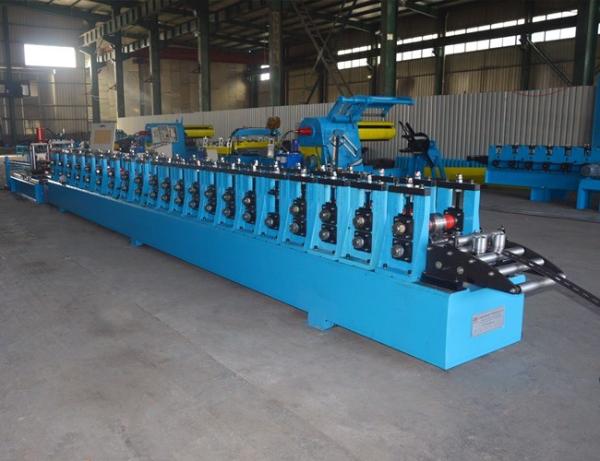

Machine pic

Solar PV Bracket Roll Forming Equipment With Simense PLC Control For Solar Panel

Our service

Designing:

After order confirmation, we start to design the machine, such as the basement, structure, rollers, shafts, power, cutting device, programs and so on.

Making:

The main parts, like rollers and shafts are produced by ourselves. We have several high-precision CNC lathe and other kinds of new machine tools, so that the quality and precision can be controlled.

Assembling:

The machines are assembled by technicians with years of experience, which can help workers improve the production efficiency and machine’s quality.

Testing:

Raw material of different specifications are prepared for testing. And during test, long enough material is used. Because if the material is not long enough, some defects can not be exposed.

Delivery:

Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.

Main features

1. We can make and design all kinds of roll forming machine according to customer's requests.
2. This is a very perfect and durable equipment. We have more than 20 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
