DBSL-8x1600 Steel Sheet Coil Slitting Machine Production Line with Hydraulic Decoiler
Brief description
The DBSL-8x1600 production slitting line is used for the metal plate decoiling, slitting and winding into several volumes needed width coil plate. Suitable for processing of cold rolled and hot rolled carbon steel,silicon steel, tinplate, stainless steel and the surface of all kinds of metal plate after plating. The Slitting Line PLC control, human-machine interface, according to a high degree of automation,simple operation and reliable.
Main technical parameter
1.raw material : stainless steel ,carbon steel
2.width of the material :600-1600mm
3.thickness of the material :2-8mm
4.inner diameter of the coil :508mm
5.outer diameter of the coil :900mm--1600mm
6.weight of the coil :according to customer need
7.working speed:40m-120m/ min (adjustable)
8.slitting numbers:according to customer requirements
Main components
1.Coil loading car (coil trolley)

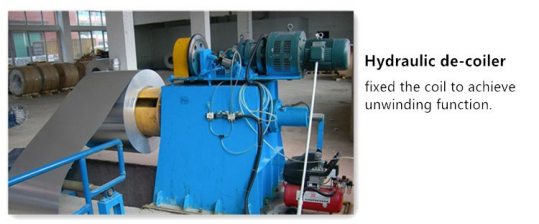

2.Decoiler
3.Peeler entry table
4.Straightener.

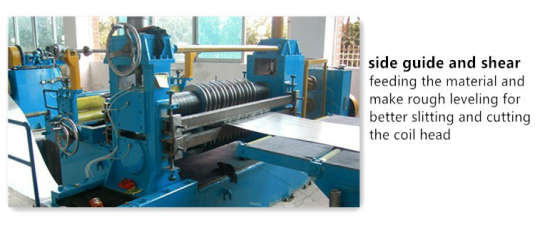

5.Shearing machine
6.Loop table
7.Coil guide and pinch roll

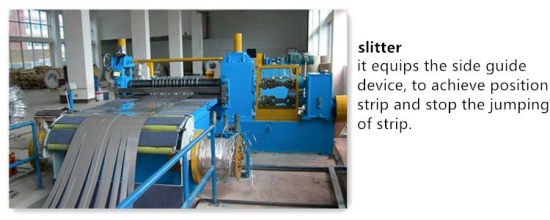

8.Slitting machine
9.Scrap winder (both sides)
10.Loop table

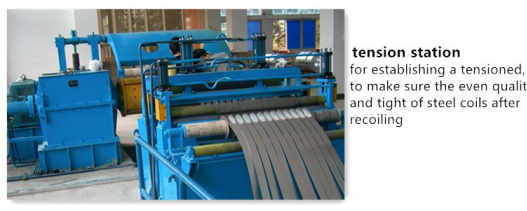

11.Separator and tension table
12.Deflector roll and exit threading table

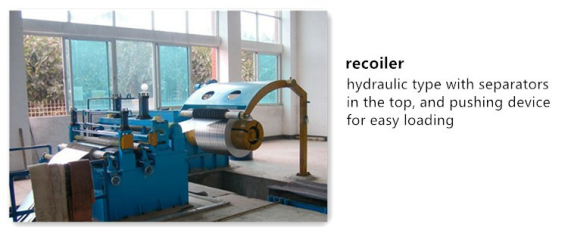

13.Recoiler
14.Over arm separator in the recoiler.
15.Exit coil car for recoiler
16.Hydraulic system
17.Pneumatic system
18.Electrical control system
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 13 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
Jiangyin Dingbo Technology Co., Ltd. is professional manufacturer and exporter specializing in designing, manufacturing,technology developing, sales and services in building materials machinery whcih mainly include all kinds of roll forming machine, tube making machine, slitting line and cut to length line,and discontinuous PU sandwich panel production line and embossing machine.
The main products of our factory is color steel roofing and wall roll forming machine, pre-painted steel forming machine, floor deck forming machine, automatical C/Z Purlin forming machine, Guardrail forming machine, Racking roll forming machine, cable tray roll forming machine, Glazed Tile forming machine, DownPipe forming machine, Roller shutter door machine,tube mill, steell and aluminum embossing machine,steel slitting and cut to length line, PU sandwich panel line and so on.
The products are widely used in such as building structure, steel structure warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.
Dingbo Technology is located in Wuxi city, Jiangsu province which is very close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
FAQ
1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.
2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.
7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.
8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
9.Can we arrange shipment?
Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
