Specifications
Brand Name :
DB
Model Number :
0.2~2.0mm*1250mm
Certification :
CE.SGS.ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set
Price :
US $30,000 - 50,000 / Set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 Set/Sets per Month
Delivery Time :
30-50 days after receiving the deposit
Packaging Details :
nude package in 40 GP container
After-sales Service Provided :
Engineers available to service machinery overseas
Description

Full Automatic Steel Slitting Machine for Cutting/Steel Cutter Machine

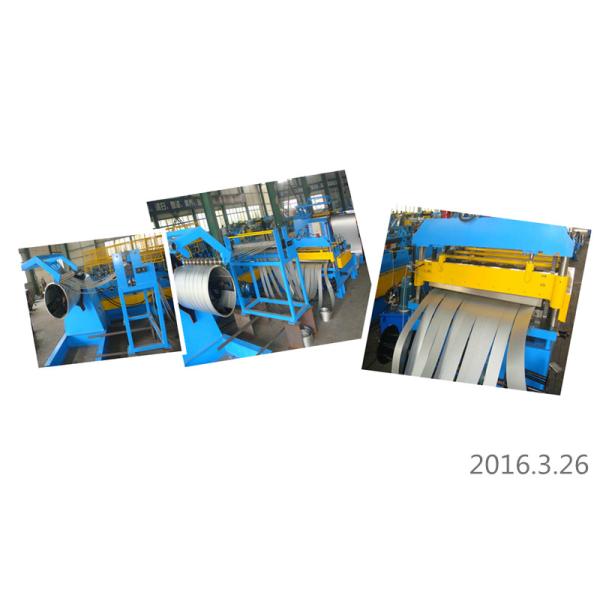

Working flow:

Motor decoiler—transmission---slitting----correcting and damping—Auto hydraulic recoiler

Components of equipment
Motor decoiler 1 set
Slitting 1 set
Correcting and damping 1 set
Auto hydraulic recoiler 1 set
Electrical control cabinet 1 set

Detailed information

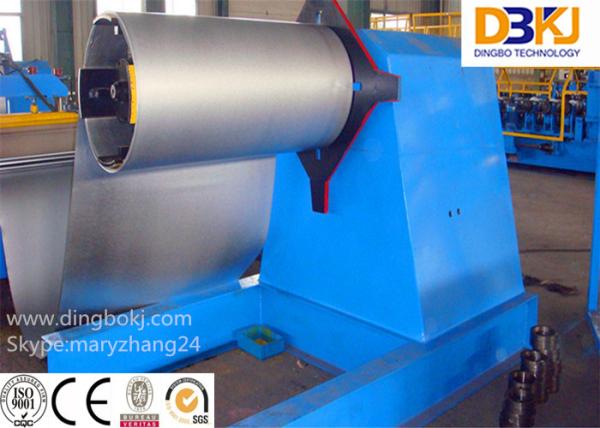

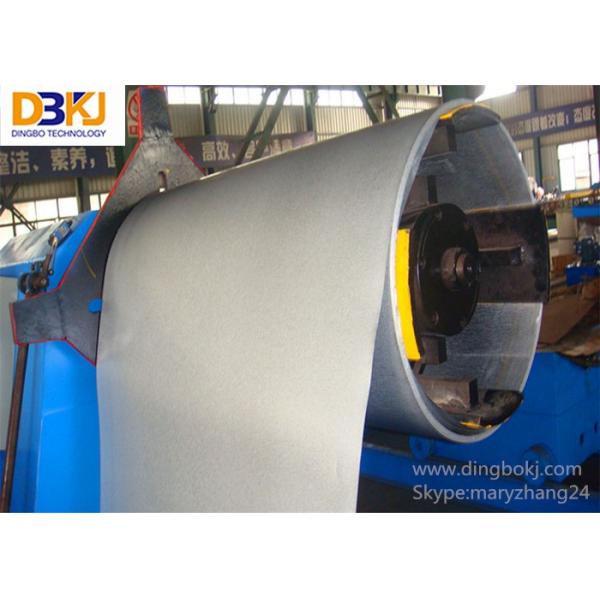

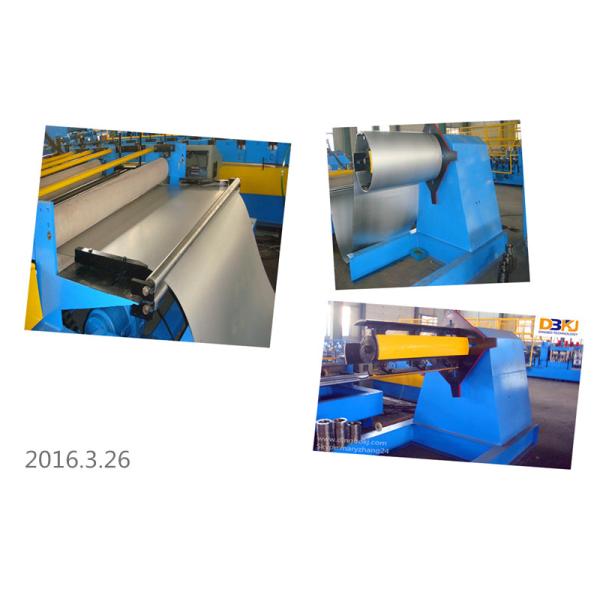

1.Motor decoiler
Motor 5.5kw
Capacity (Max) 8 Tons
Inner diameter 450-550mm
Coil Width (Max.) 1250mm

2. Coil transmission
Transport roller 45# forge steel, quenched and chrome coated 0.05mm
Width of roller 1500mm
Motor power 3KW

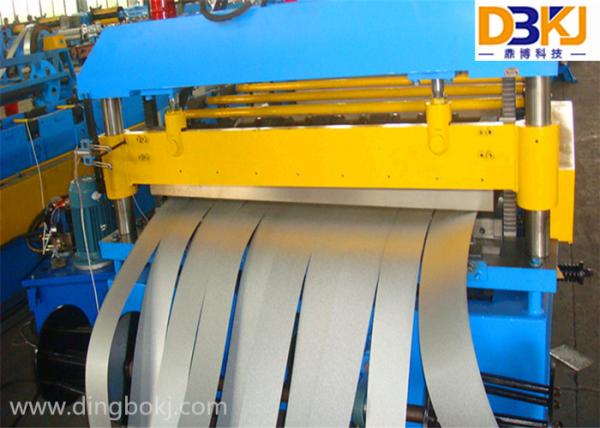

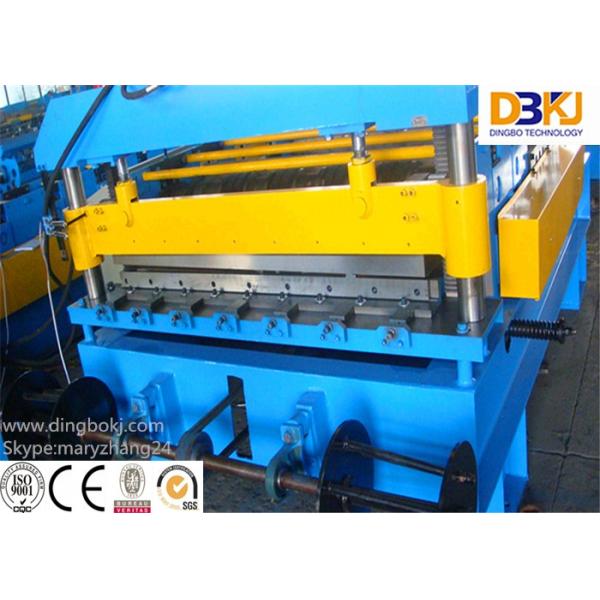

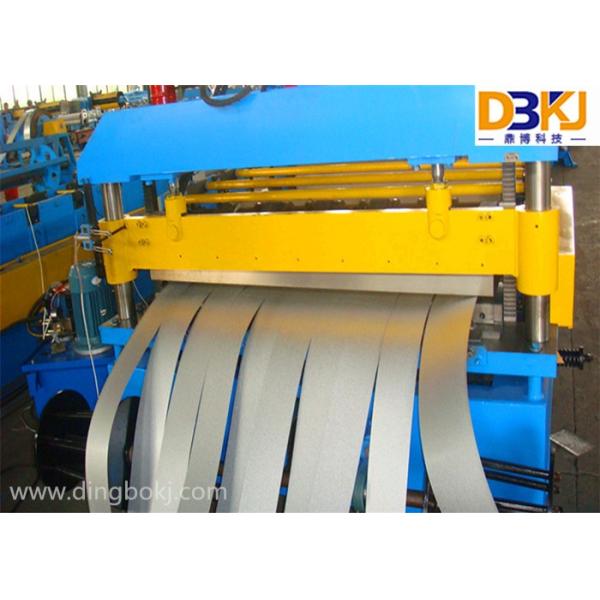

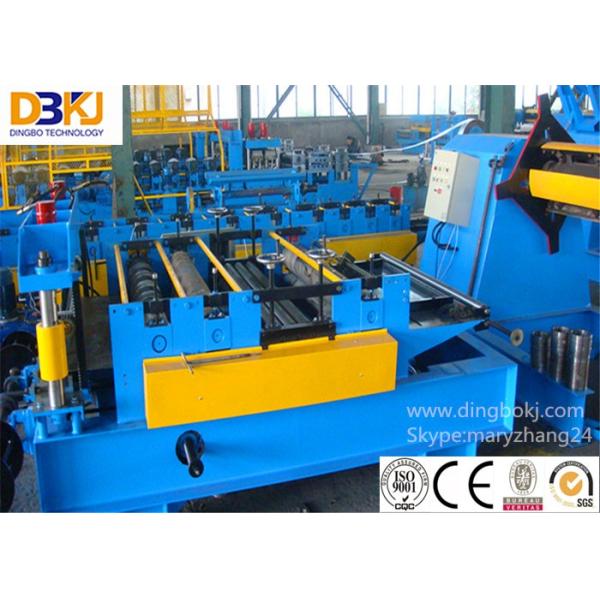

3. slitting part
Disc slitting blade
Number of disc blade 11groups(as customer require)
Material of disc blade Cr12mov
Material of main shaft steel and Rubber covered
Slitting speed 20-30m/min
Motor power 11KW
Scrape recoiler
Rotary according to slitting device

4. correcting and damping
Correcting rollers three rollers, 45#forge steel and chrome coated 0.05mm

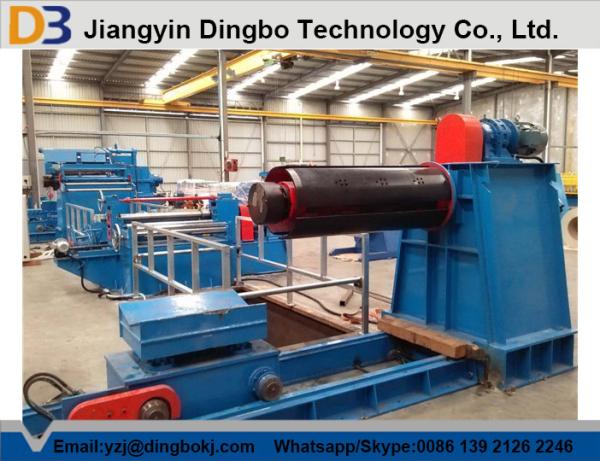

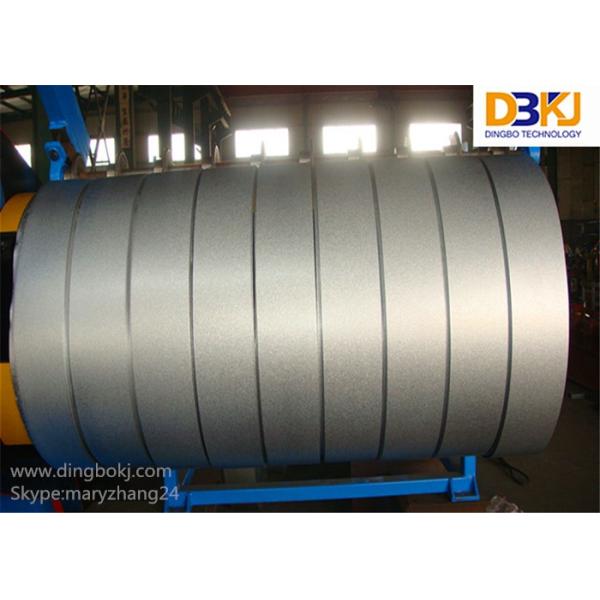

5. Recoil system with correcting device
Expanding hydraulic
Capacity 5 Tons
Hydraulic power 5.5KW
Motor power 7.5KW
Inner diameter 450-550mm
Recoiler width 50-1250mm(adjustable)
Automatic recoil with correcting device

6.Electrical control cabinet
Electrical system: PLC Panasonic 380V, 50HZ, 3 phase(also depend on customer demand)
Transducer Quartet Brand
Weight 10.5 tons
Production area 18.5x3.5x2.1meters

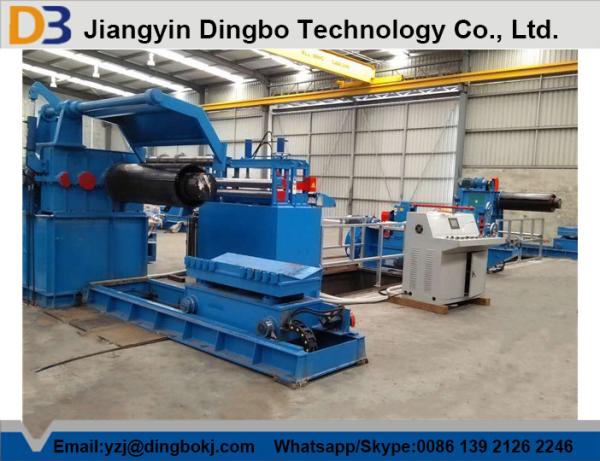

Pictures for Reference

0.2-2mm Thick Slitting Line Machine For Cutting / Steel Cutter Machine

0.2-2mm Thick Slitting Line Machine For Cutting / Steel Cutter Machine

0.2-2mm Thick Slitting Line Machine For Cutting / Steel Cutter Machine

0.2-2mm Thick Slitting Line Machine For Cutting / Steel Cutter Machine

0.2-2mm Thick Slitting Line Machine For Cutting / Steel Cutter Machine

0.2-2mm Thick Slitting Line Machine For Cutting / Steel Cutter Machine

0.2-2mm Thick Slitting Line Machine For Cutting / Steel Cutter Machine

Certificates

0.2-2mm Thick Slitting Line Machine For Cutting / Steel Cutter Machine

Company Scene

0.2-2mm Thick Slitting Line Machine For Cutting / Steel Cutter Machine

1, Pre-sale service : Confirm details with customer, to make the most suitable Offer to them according to their real needs in production

2, Mid-sale service: Track and report production progress to Customers

3, After-sale service: 1 Year free quality garantee, after 1 year we offer lifetime garantee but just charge basic cost for comsumable parts
