Hydraulic Punching 1-2mm Thickness Gearbox Transmission Door Frame Roll Forming Machine

Door Frame Roll Forming Machine Descriptions

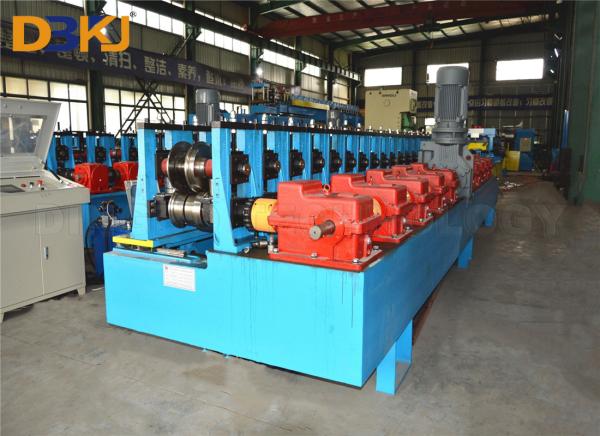

Door frame roll forming machine from DINGBO technology company can produce door frame for house, Door frame roll forming machine consists of hydraulic uncoiler, leveler, punching device, roll forming unit, shearing, run-out table, hydraulic station and electric control cabinet. The hydraulic station of the door frame roll forming machine adopts accumulator and PLC controller to generate a fast punching and shearing speed. When this cold roll forming line runs automatically, the maximum speed can reach up to 20 m/min with a stable and reliable performance.

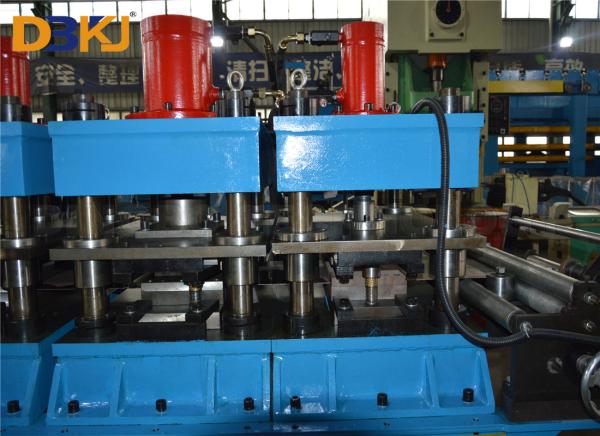

Equipped with various hydraulic punching and notching unit, the machine can cut/ punch all the necessary holes/ notches online. After that, one piece of final product can be easily bend to a complete door or window frame, no need any further processing.

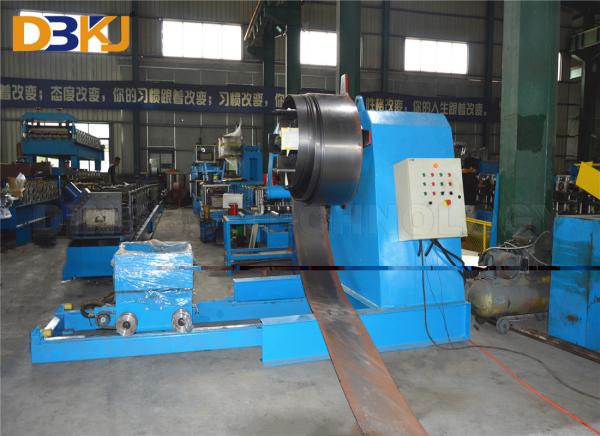

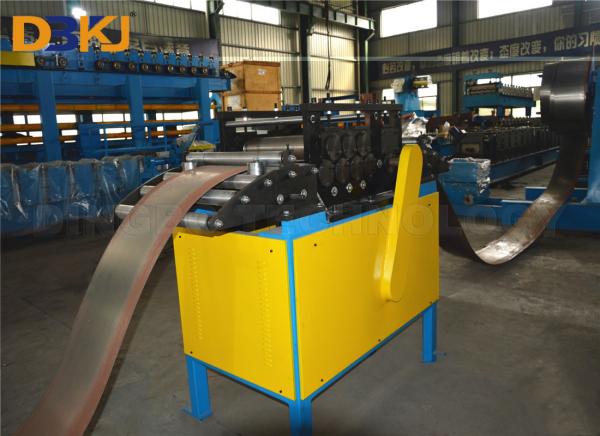

This machine use to produce metal door frame, from a coil to finished finished door frame product only finished by one production line, the machine line has 3in1 equipment which has de-coiler for coil hold, leveling machine for making coil sheet flat, and then use servo feeder to feed sheet length to punching machine as PLC program setting, hydraulic punching machine has several individual cyliner which could be seperately controlled by PLC, so it's easy to achieve punching any hole or slot or notching at any length side of sheet. After finish holes punching on sheet, then do length cut-off, and then use automatic convey belt to transfer the sheet to roll forming machine. Roll forming machine will forming the door frame profile as the drawing requirement step by step. After profile forming there has straightening device for adjusting the straightness of finished door frame.

Door Frame Roll Forming Machine Parameters

Door Frame Roll Forming Machine Profile drawing



Door Frame Roll Forming Machine Working Flow



Door Frame Roll Forming Machine Main Components

Door Frame Roll Forming Machine pictures

Door Frame Roll Forming Machine Our service
Designing:
After order confirmation, we start to design the machine, such as the basement, structure, rollers, shafts, power, cutting device, programs and so on.
Making:
The main parts, like rollers and shafts are produced by ourselves. We have several high-precision CNC lathe and other kinds of new machine tools, so that the quality and precision can be controlled.
Assembling:
The machines are assembled by technicians with years of experience, which can help workers improve the production efficiency and machine’s quality.
Testing:
Raw material of different specifications are prepared for testing. And during test, long enough material is used. Because if the material is not long enough, some defects can not be exposed.
Delivery:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
