1250MM Feeding Steel Granary Silo Forming Machine 15kw Less Residues
1250MM Feeding Steel Granary Silo Forming Machine 15kw Less Residues
Specifications
Brand Name :
ZBR
Model Number :
ZBR-S-1068
Certification :
CE BV
Place of Origin :
Jiangsu
MOQ :
1 SET
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
export package
Type :
silo making machine
Max. Feeding :
1250mm
OEM Service :
Available
Power(W) :
15kw
Raw material :
Galvanized Steel
Description

1250MM Feeding Steel Granary Silo Forming Machine 15kw Less Residues ​

Specification:

Features:

1. Large capacity

One single-silo capacity is up to 17,000 tons with comprehensive configurations to meet customers’ different requirements.

2. High accuracy

Complete advanced processing equipment and technology are introduced from USA to effectively ensure working accuracy and reduce damage to galvanized layer.

3. Less residues

External installable stiffeners contribute to less grain residues on silo walls.

4. Detachable and movable

With standardized and modularized production, components and parts have a high standardization and good interchangeability, thus can be partially replaced or completely transferred.

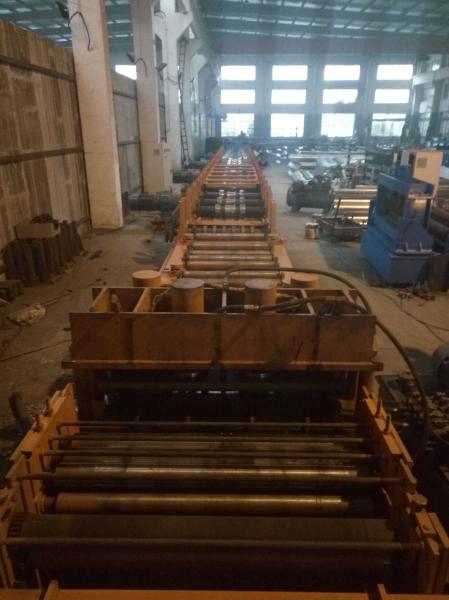

Component:

De coiler

Material width adjusting and guiding equipment

Roll former

Curving equipment

Cutting machine

Hydraulic control system

Technical process:

Decoiling →Guiding→Cutting→Roll forming→Curving equipment

Technical parameter:

Suitable Raw Material galvanized sheet, zinc aluminum sheet
Material’s Strength 310MPa
Material’s Thickness 1.2-4.5mm
Forming Stations 18
Max. Feeding Width 1250mm
Diameter of Roller’s Shaft 120mm
Producing Speed 4-8m/min
Material of Roller GCr15 quenching HRC 58-62°
Drive Mode gearbox
Main Power about 180KW
Electrical Control System PLC frequency control
Power Supply AC 440V & 50HZ & 3PH
Dimension(L*W*H) 35m*4.5m*4.5m
Total Weight approx 70T
