Semi Automatic Roll Forming Equipment 350 H Steel Pipe Bending Machine Chain Drive
Semi Automatic Roll Forming Equipment 350 H Steel Pipe Bending Machine Chain Drive
Semi Automatic Roll Forming Equipment 350 H Steel Pipe Bending Machine Chain Drive
Semi Automatic Roll Forming Equipment 350 H Steel Pipe Bending Machine Chain Drive
Specifications
Brand Name :
ZBR
Model Number :
ZBR-R-1106
Certification :
ISO9001:2008
Place of Origin :
Jiangsu China
MOQ :
1 SET
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
10 Stes Per Month
Delivery Time :
30-45 days
Packaging Details :
Export Package
Level system :
five-roller leveler.
machine :
pipe welding equipment
inner diameter of coil :
φ460-550mm
Main Frame :
350 H Steel
Type :
Chain Drive
Controlling Mode :
PLC+Touch Screen
Description

Semi Automatic Roll Forming Equipment 350 H Steel Pipe Bending Machine Chain Drive​

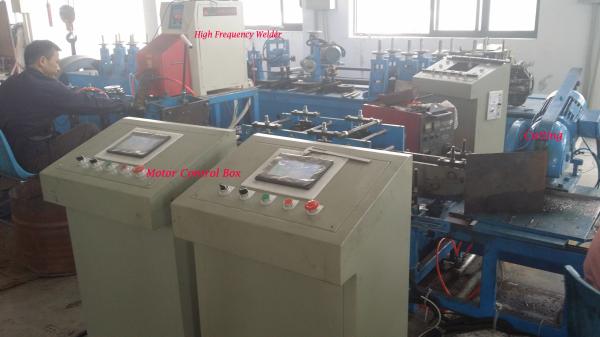

pipe forming machine / High frequency carbon welded pipe welding machine is designed to produce weld pipes of Φ 48~ Φ 140mm in diameter and 2.0~5.5mm in wall thickness as well as square and rectangular pipes and formed sections of the corresponding size.

Roll forming machine

1.Main Technical Specification

(1) Round pipe diameter: Φ 48~ Φ 140 mm Wall thickness: 2.0~5.5mm

(2) Square pipe diameter: 40*40-90*90mm Wall thickness: 1.5~5.5mm

(3) Pipe length: 4~12m

(4) To-length accuracy 0~6mm

2.Raw Material Conditions/ pipe forming machine

(1) Low carbon steel and low alloy constructional steel (hot or cold formed steel coil)

(2) Mechanical characteristics: δb≤500 MPa, δs≤300 MPa

(3) Width of strip: 140~360mm

(4) Thickness of strip: 2.0~5.0mm

(5) Weight of coil: ≤ 5t

(6) Forming speed: 20~65m/min

(7) Total power: 1000kw

Model Φ20 Φ32 Φ50 Φ60 Φ76 Φ89 Φ114
Range of
processing		 Φ8-25 Φ12-32 Φ12-50 Φ16-60 Φ20-76 Φ32-89 Φ10-114
Wall thickness 0.4-1.25 0.5-2.5 0.6-3.25 0.8-3.5 1-4.0 1-4.5 1.5-5
Steel strip
material		 δb≤590Mpa δs≤350Mpa
Main motor
power		 30(75)Kw 55(75)Kw 75(90)Kw 110Kw 132Kw 160Kw 200Kw
Welding speed 20-100
m/min		 20-100
m/min		 20-100
m/min		 20-100
m/min		 20-100
m/min		 20-100
m/min		 20-100
m/min

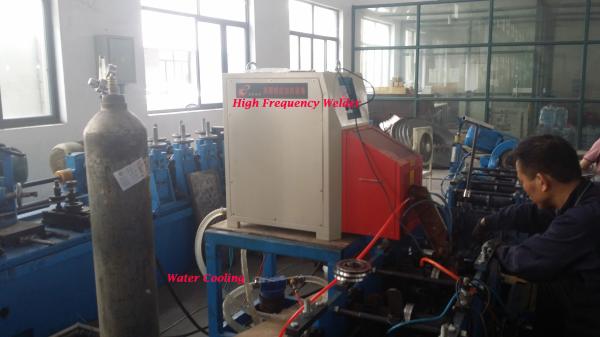

High frequency
equipment		 1000Kw 1000Kw
2000Kw		 2000Kw 2000Kw 2000Kw 3000Kw 3000Kw 3000Kw
4000Kw

Model Φ165 Φ219 Φ273 Φ325 Φ508
Range of
processing		 Φ60-Φ165 Φ108-Φ219 Φ114-273 Φ165-Φ325 Φ219-Φ508
Wall thickness 2-6mm 3-8mm 3-10mm 4-12.5mm 6-16mm
Steel strip
material		 δb≤590Mpa δs≤350Mpa,X≤70 level
Main motor
power		 250Kw 400Kw 450Kw 640Kw 900Kw
Welding speed 20-50
m/min		 15-45
m/min		 15-35
m/min		 15-30
m/min 		15-25
m/min
High frequency
equipment		 400Kw
600Kw		 600Kw
800Kw		 800Kw 1000Kw 12000Kw

Cold forming pipe bending machine
