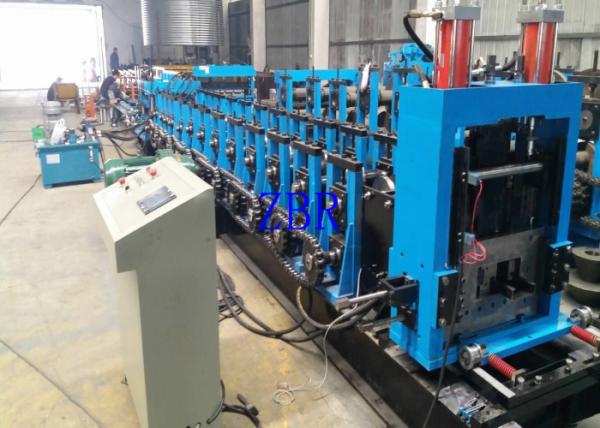

22Kw - 1000Kw Color Steel Roll Forming Machine 1220 MM Max Feeding Width
22Kw - 1000Kw Color Steel Roll Forming Machine 1220 MM Max Feeding Width
22Kw - 1000Kw Color Steel Roll Forming Machine 1220 MM Max Feeding Width
22Kw - 1000Kw Color Steel Roll Forming Machine 1220 MM Max Feeding Width
Specifications
Brand Name :
ZBR
Model Number :
ZBR-R-1102
Certification :
ISO9001:2008
Place of Origin :
Jiangsu China
MOQ :
1 SET
Price :
good price and quality
Payment Terms :
Negotiated
Supply Ability :
10 Stes Per Month
Delivery Time :
30-45 days
Packaging Details :
Export Package
Sprocket :
P-25.4 or as clients' need
Type :
Cold Rolling Mill
Production :
according to customers' request
Power(W) :
22kw-1000kw
Controlling Mode :
PLC+Touch Screen
Description

22Kw - 1000Kw Color Steel Roll Forming Machine 1220 MM Max Feeding Width​

Product Description

The roof & wall panel forming machine is rolled or cold-rolled strip steel, metal plate, galvanized plate, color steel as raw materials. Light metal profiles of different section shapes are obtained by bending at room temperature. Production of color steel products with different sections, production flexibility, easy to use, strong adaptability, save a lot of manpower and material resources, so the world's industrial developed countries are very seriously.

Manual Un-coiler
◊ Max Capacity: 5000kgs ◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
Leveling Device
◊ Ensure the material level and straight
◊ The width can be adjusted

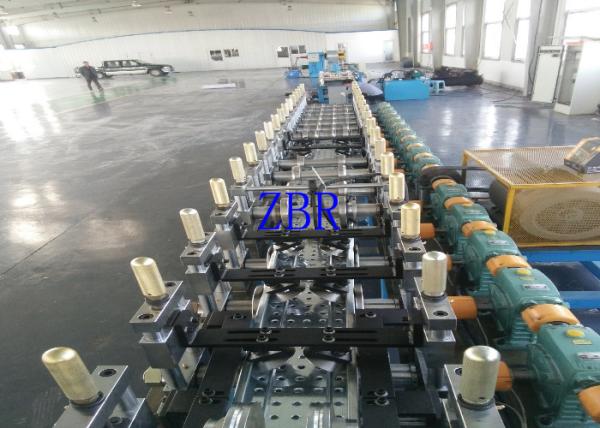

Auto Main Forming System
◊ Max Feeding width:1220 mm
◊ Product width: 1000 & 1020 mm
◊ Thickness of sheet: 0.2-1.0mm
◊ Motor Power: 5.5 kw forming system
◊ Roller material: C45 steel
◊ Diameter of shaft: Upper level 95 mm
◊ Forming station: Upper level 12 stations.
◊ Base Frame: 360 H steel welded..
Hydraulic Cutting Device
◊ Cutting way: pause to cut.
◊ Oil pump station 1set.
◊ Hydraulic power: 4 kw hydraulic system.
◊ Blade Material: CR12 with heat treatment HRC60-62.
Electrical System
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement)
Run-out Table
◊ Frame: 8# steel groove welded
◊ Roller type.
◊ Quantity: 1 pc

Guide four column type

The guide four column type high speed fine structure, pressure cylinder and die by the guide sleeve binding in 120 mm four solid oriented hydraulic prop, the mold under the vertical operation, will not produce the vertical deviation, especially on the tile die vulnerability, to absolute protection, but also greatly prolong the service life of the die

Rollers

High quality rollers will help to produce the beautiful and high quality profile. That will satisfy your customers.

Using high quality 95mm thick shaft, the strength is more durable.

Machine body

The main body of the body without welding, all the use of cast steel, the whole machine will not produce stress and lead to the host body deformation.

PLC Control System

Usually we prodvide the Delta PLC control system, but we can make that according to your need. You need which brand, then we send to you which brand.But the long life of that will bring you great benefit .
