Automatic C Purlin Roll Forming Equipment 3 Phase 15 Meters Per Minute
Automatic C Purlin Roll Forming Equipment 3 Phase 15 Meters Per Minute
Automatic C Purlin Roll Forming Equipment 3 Phase 15 Meters Per Minute
Automatic C Purlin Roll Forming Equipment 3 Phase 15 Meters Per Minute
Specifications
Brand Name :
ZBR
Model Number :
ZBR-P-411
Certification :
CE, SGS, ISO9001
Place of Origin :
Jiangsu
MOQ :
1 SET
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
export package
After-Sales Service Provided :
Engineer Available to Go Abroad
Forming profile :
C Z purlin 100-300mm
Yield strength :
245-550Mpa
Punching :
single hole and dual holes
Output :
about 15meters per minute
Decoiler :
Manual or Hydraulic for options
Description

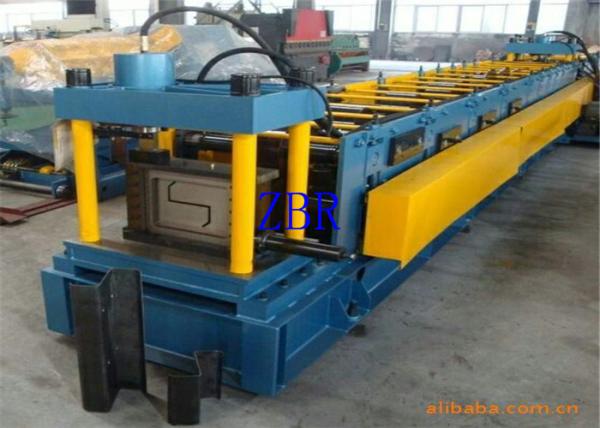

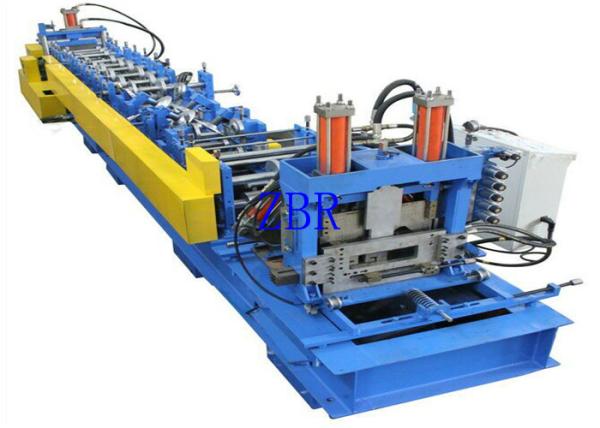

Automatic C Purlin Roll Forming Equipment 3 Phase 15 Meters Per Minute

SPECIFICATIONS FOR 80-300 Automatic C Purlin Quick Change Size Roll Forming Machine
DECOILER
Manual type
no power,5Ton*500mm
coil inner–diameter=508mm；
Load capacity= MAX.5.0Ton, Coiler Width= 500mm
Hydraulic type
5Ton*600mm
Load capacity= MAX.5Ton;
Hydraulic system expand coil inner hole, Pump motor: 3KW;Coil inner–diameter=470-510mm;
Coil Width= MAX.600mm;
Drag-off rotation type
Main performance parameters of MAIN ROLL FORMING MILL
Main motor capacity
kw/h
18.5
Forming station
with extra 5rollers (upper 3 and 2 down))for pre-leveling
16
Forming speed(not incl.punching&cutting)
meter per minute
about 15-18
Hydraulic Punching and Cutting system
Hydraulic system
MPa
16(max.)
Hydraulic drive
kw/h
7.5
Cutting tool material
Tool steel
Cr12

Advantages of our C Z purlin roll forming machine

  • Strictly based on customer's drawings
  • World famous brand componets
  • High Quality, Reliable,Durable
  • Reasonable Price and Good after Service
  • 1 Year Warranty
  • More Expertise

Machine's components:
Uncoiler, coil sheet flattening equipment, hole punching department, C/Z shap main forming system, cutting deparment, hydraulic station, PLC control table, final product run out table.

Main technical parameter:
- Suitable raw meterial: Cold rolled strip or heat-treated galvanized steel strip
- Suitable thickness: 1.5-3.0mm
- Forming speed: About 10-12m/min
- Main motor power: 15kw; Hydraulic power: 5.5kw(depend on final design)
- Voltage: 380V, 3 phase, 60HZ or at buyer's requirment
- PLC control and transfered by chain
- Machine's dimension: About 18m*1.8m*1.6m

Meterial of main department:
- Forming roller: Cr15 bearing steel with quenched treatment
- Cutting blade: Cr12 mould steel with quenched treatment

Working flow:
Uncoil the strip-guiding and flattening the sheet-hole punching-main roll forming-cutting-final products run out to table
