15Kw Guardrail Roll Forming Machine 20Mpa 2 Inch Single Row Chain Drive​

We design and manufactured products combined with our years of experience and according to the technical requirements provided by the equipment demand side, and according to the national quality standard in GB6723-86 "the allowable deviation of size and shape in common cold opening steel" and in GB6724-86 " the allowable deviation of shape and quality and tolerance in cold-formed corrugated steel ".

The quality of product is completely in line with the standard of JT / T281- 2007 two-wave guardrail and JT/T457-2007 guardrail issued by the Ministry of Transportation of the People's Republic of China,

This machine type is identified and recommended by the Ministry of Quality Inspection Center

1. Cutting: the material will sent into the unit guide wheel

2. The material is leveled by three roller grinding machine and four roller grinding machine.

The diameter of forming shaft is Φ80mm (material # 45 will be quenched), the roll materials is GCR15,

quenched to HRC58 ° -62 °, surface is plated hard chrome .

3. Profiles: Profile Thickness: 2.0mm-4.0mm; width of profiles unfold: 482 mm; profiles Material: Q235

4. Punching: hydraulic punching (material Cr12 steel mold will be quenched, and it can be adjusted all around)

5. Cutting off: hydraulic shearing knife mold, materials:Cr12, quenching:HRC60-62

6. Host Power: 15KW

7. Cycloid reducer power: 15KW

8. Drive: Gear (high frequency hardened), 2-inch single row chain

9. Hydraulic station motor power: 15KW, pressure:20Mpa

10. The unit uses frequency conversion adjusting speed in 5m-10m / min

11. The electronic control part: PLC NC frequency electrical boxes, touch-screen. Counting by encoder,

can arbitrary control the length and the number of profiles,

Accuracy:± 1.0mm, automatic hydraulic shear, the system with punching center side hold machine and punching center hole machine.

12. Dimension of equipment: Length 18m ×Width 1.2m ×High 1.5m

The discharge of high-speed guardrail cold-roll forming machine:

Simple discharge rack:

1, The rack is made of 60mm * 40mm square tube welding (can be adjusted up and down).

2, The sliding wheel is arranged on the rack.

3. Specifications: Length 0.9m ×Width 1.5m × High 0.6m

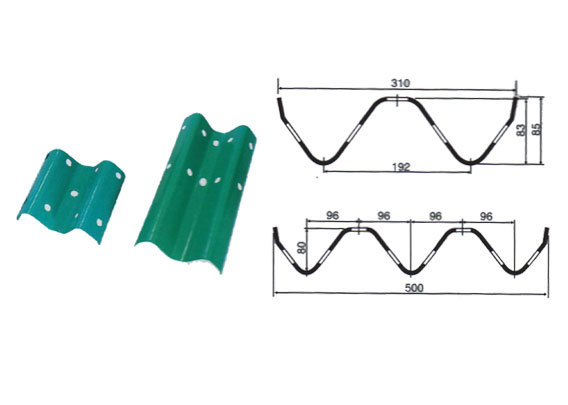

Highway Guardrail Roll Forming Machine: mainly used for highway guardrail cold-roll forming plate,

guardrail products which it produced are high strength. According to customer demand, customer can custom

two or three waves, or other different specifications of cold-formed sheet .

Highway Guardrail Roll Forming Machine consists of decoiler, leveler, punching center side hold machine,

punching center hole machine, forming host machine, forming cutting device, hydraulic station, finished brackets and other parts.

Components of the machine
