High Speed Guardrail Roll Forming Machine Shaft Dia 90MM 10Mpa Working Pressure
High Speed Guardrail Roll Forming Machine Shaft Dia 90MM 10Mpa Working Pressure
High Speed Guardrail Roll Forming Machine Shaft Dia 90MM 10Mpa Working Pressure
High Speed Guardrail Roll Forming Machine Shaft Dia 90MM 10Mpa Working Pressure
Specifications
Brand Name :
ZBR
Model Number :
ZBR-G-308
Certification :
CE, SGS, ISO9001
Place of Origin :
Jiangsu
MOQ :
1 SET
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
export package
Roller material :
bearing steel
Dricing of Machine :
Gear&Chain or Universal Joint
Material of Cutter :
Cr12 with Heat Treatment
Diameter of Shaft :
90mm
Index Error of Length :
±2mm
Voltage :
AC380V 50hz or as u need
Description

High Speed Guardrail Roll Forming Machine Shaft Dia 90MM 10Mpa Working Pressure​

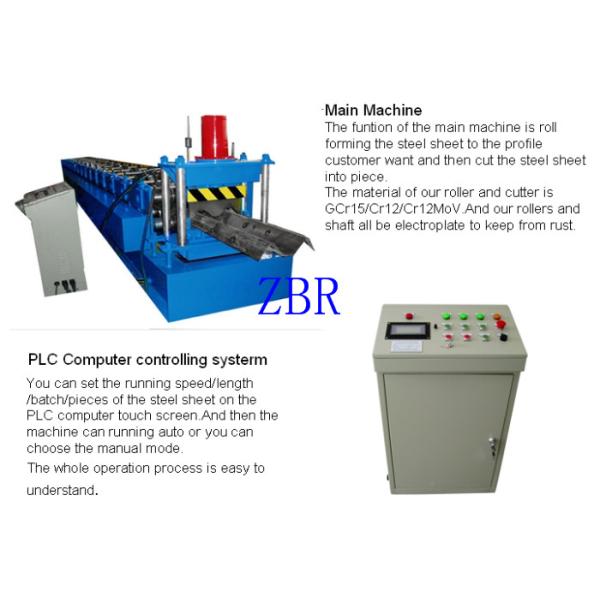

The machine is the special forming equipment for producing the speedway guide rail. The machine adopts the cold forming, cold punching, automatic stack, industrial automation controlling system and precision machining technology, therefore is can run full automatically, including decoiling, forming, cutting to length and stacking. One shift every month can produce 600 tons (max).

High-speed guardrail roll forming machine process flow

Uncoil-feeding-leveling-punching-red in the hole-forming-cutting-discharge


Steel Specification:

Plate Thickness:2.5-3.0 mm
Plate material: Q235
Plate unfold width:482mm

Feeding
1. single-sheet open-book machine, side discharge.
2. adopt tension within the use of automatic hydraulic
3. the maximum weight of loaded volume:5000KG
4. the maximum diameter of installation: 2200mm
5. hydraulic power:3KW
6. cylinder diameter:120mm, working pressure:10Mpa
7. the maximum width of installation:500mm

Forming
1. material into the leading wheel set to open.
2. Level for the next three to four roll, forming shaft diameter Φ80mm(material 45# by quenching), roll material is GCR15, quenching to HRC58°-62°, hard chromium plated, suppression of thickness 2.5m-3.0m.
3. punching:adopt hydraulic punching(material Cr12 model steel quenching, can be adjusted left and right, front and back)
4. cut off hydraulic shear(material Cr12 quenching HRC60-62)
5. main power:18.5KW
6. Cycoidal reducer power: 15KW
7. Transmission: chain drive, 2-inch single-row chain
8. Coil width: 482mm
9. Hydraulic motor power: 15KW, pression: 20Mpa
10. Unit with frequency control: 5m-12m/min
11. Computer adopt Delta PLC
12. Equipment dimension: 17.5m*1.2m*1.5m


Technical Datas Roll Forming Machine

1
Material Width
500-1000mm

2
Effective Width
480-680mm

3
Thickness of Coil
1.8-3mm

4
Application
Highway Guardrail

5
Estimated Dimension
11000mmX1500mmX1300mm

6
Total Weight
10 Tons

7
Main Power
30 KW

8
Decoiler
Manual or Hydraulic Decoiler

9
Inner Diameter
508mm

10
Outer Diameter
1200mm

11
Loading Weight
5T

12
Forming Speed
0-15m/min

13
Forming Station
12-15

14
Bracket
Welded with 36 # I-steel

15
Material of Shaft
High Grade forged 45# Steel with 1st Rough Finished and
then 2th Refined Finished

16
Diameter of the Roll
100mm

17
Material of Roller
High Quality
Cr12 Quenched HRC58-62 °

18
Processing Technology
Rough Processing ---Refined Processing--Hard Chromium Plating.

19
Material of Rack
Complete Welded Structure of A3 Steel
Plate 20 mm Thickness

20
Transmission
Chain or Gear Box or universal joint

21
Material of cutting blade
Cr12 with Quenched Treatment 60-62 °

22
Cutting system
Hydraulic Stop or Tracking Cutting

23
Voltage
380V/50HZ/3 Phase or as Customer Require


High Speed Guardrail Roll Forming Machine Shaft Dia 90MM 10Mpa Working Pressure
