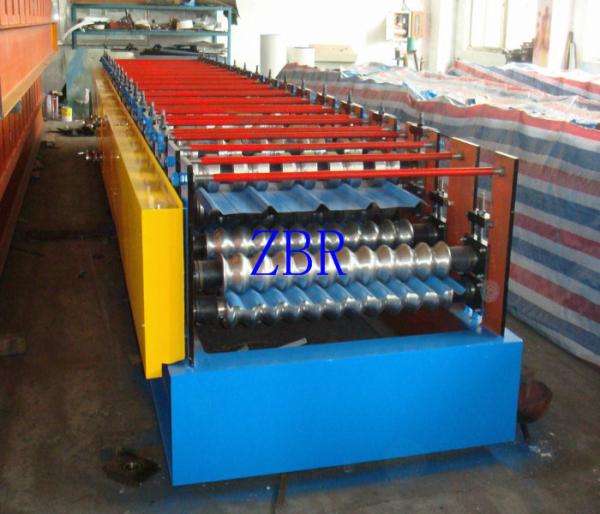

Three Phase Steel Plate Metal Roof Roll Forming Machine 235-350 Mpa Yield Stress
Three Phase Steel Plate Metal Roof Roll Forming Machine 235-350 Mpa Yield Stress
Three Phase Steel Plate Metal Roof Roll Forming Machine 235-350 Mpa Yield Stress
Three Phase Steel Plate Metal Roof Roll Forming Machine 235-350 Mpa Yield Stress
Specifications
Brand Name :
ZBR
Model Number :
ZBR-b-111
Certification :
CE, SGS, ISO9001
Place of Origin :
Jiangsu
MOQ :
1 SET
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
export package
Yield Stress :
235-350 MPa
Customized :
Customized
Main Frame :
300 H Steel Welded
Forming Speed :
8-12m/min
Transport Package :
Sea Worthy Fixed by Wire Rope, Wooden Blocks
Control system :
Totally automatic PLC control system
Description

Three Phase Steel Plate Metal Roof Roll Forming Machine 235-350 Mpa Yield Stress​

Technical Parameters

Material

galvanized steel, pre-painted steel, and aluminum.

Thickness

From 0.3 mm to 0.7mm.

Main Motor Power

7.5 kw.

Hydraulic Power

3 kw.

Feeding Width

1200/1250mm.

Cover Width

900mm and 110mm.

Yield Stress

235Mpa (33KSI) ~ 350Mpa (50KSI).

Total Speed

20 m/minute for trapezoidal profile; 5m/minute for tile profile.

Cutting Tolerance

+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).

Manual Uncoiler

capacity is 5 tons.

Coil Inner Diameter

508mm or 610mm.

Voltage

380V, 3 phase, 50 HZ, or customized.

Numbers of Station

17~18 stations.

Type of Cutting

roll-formed and length-set profile cutting.


Material of Main Equipment

Roller Material

High grade S45C forged steel, coated with hard chrome.

Active Shaft Material

High grade S45C carbon wrought steel, diameter 80mm.

Electric Elements

PLC control console, touch screen and transducer,
from Siemens, Germany. It has data storage function.
Other electrical parts, from Schneider Electric, Germany.

Cutter Blades

Cr12MoV steel with quenched treatment, hardness HRC58~61,
wear-resistance, good steel structure, long life.

Process Sketch
Uncoiling the sheet -Pre-cut -Material feeding ðRoll forming - Measure the length -Cutting the panel -Panels running out to the supporter (optional: automatic stacker)

Standard Equipment of Machine

1)

Manual Uncoiler

1 set

6)

Hydraulic Station

1 set

2)

Pre-cuter

1 set

7)

PLC Control Console

1 set

3)

Infeed Guide

1 set

8)

Safety Cover

1 set

4)

Roll Forming Station

1 set

9)

Product Support Table

1 set

5)

Post-cut Equipment

1 set

10)

Spare Parts

1 set

FAQ

1. Do you have overseas engineers?
Yes, we not only provide overseas engineers, but also provide technical training.

2. What`s the machines` production rate?
Between 8-20m/min by control.

3. Do you provide customized?
Sure,we can design the equipment according to the data of the structural section you provide.

We are professional sheet metal forming machine designer and manufacturer.
