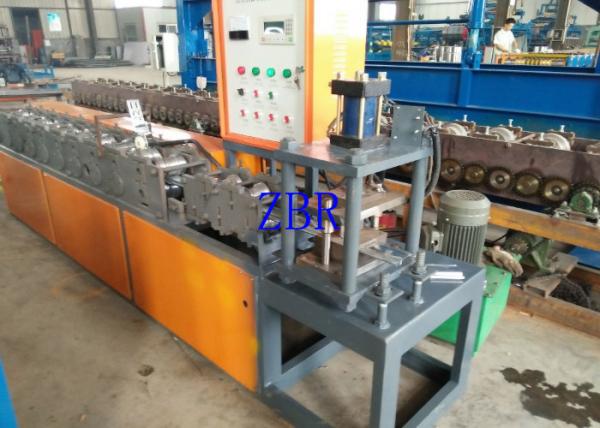

Pneumatic Steel Frame Roll Forming Machine 508mm Coil Inner Diameter
Pneumatic Steel Frame Roll Forming Machine 508mm Coil Inner Diameter
Pneumatic Steel Frame Roll Forming Machine 508mm Coil Inner Diameter
Pneumatic Steel Frame Roll Forming Machine 508mm Coil Inner Diameter
Specifications
Brand Name :
ZBR
Model Number :
ZBR-D-32
Certification :
CE, SGS, ISO9001
Place of Origin :
Jiangsu
MOQ :
1 SET
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
export package
Tile Type :
Glazed Steel
Productivity :
10-15 M/Min
Coil Inner Diameter :
508mm
Line Speed :
About 10m/Min
Transmission Method :
Pneumatic
Name :
Door Frame Metal Machine
Description

Pneumatic Steel Frame Roll Forming Machine 508mm Coil Inner Diameter​

Technical Specification:

Item Specification

Material		 Type Pre-painted steel coil & galvanized coils
Thickness(mm) 0.5-0.6
Yield strength(mpa) 235
Roller material 45#Chrome steel
Forming speed(m/min) About 15-20
Output speed(m/min) 6
Speed adjusting mode AC Frequency
Roller drive Decelerating motor + Chain drive
Cutting mode Hydraulic cutting
Cutter material Cr12 mould steel
Length measurement Encoder
Control mode Mitsubishi PLC
Operating mode Button + Mitsubishi Touch screen
Main motor power(kw) 5.5KW
Total power(kw) 11KW

Components of machine
Decoiler 1set
Feeding & guiding device 1set

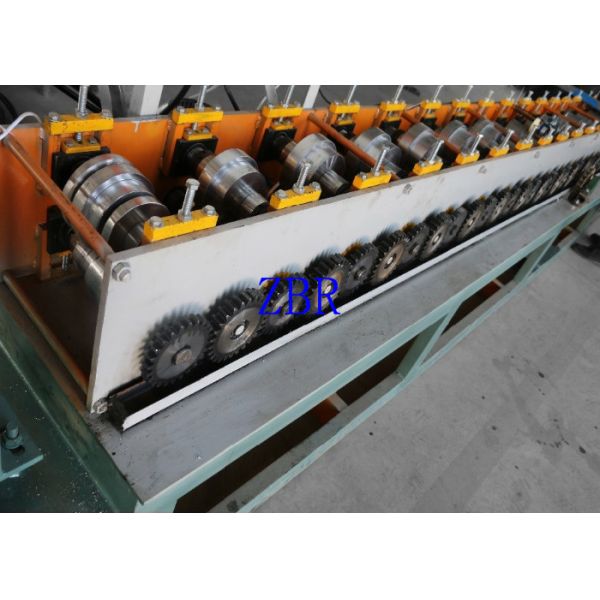

Main roll forming machine 1set
Hydraulic pressing system 1set
Hydraulic cutting system 1set
Controlling system 1set
Run out table 1set
Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting - product to run out table


Feature
The PLC controller is the "CPU" of forming machine. Machine excellence performance need the supports of excellence PLC.
With touch screen mode, let your workers enjoy the easy operation; with auto working mode, let your workers free their hands!

1. Lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. One worker operation (minimum)
4. Lifetime>10years: roller cover with 0.05mm chrome
72mm diameter solid steel shaft
Cutting blade with heat treatment.
5. Cr12 mould steel cutter with quenched treatment.
6. Product cut-to-length.
8.Technician overseas installing and training available
