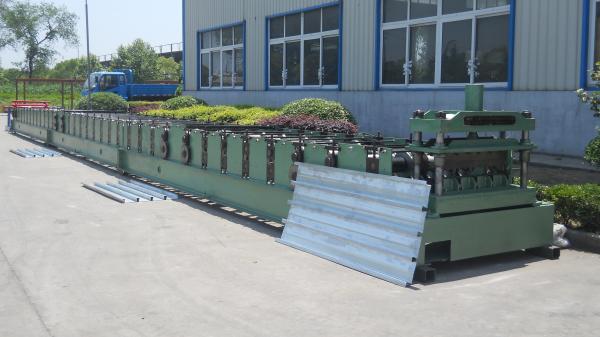

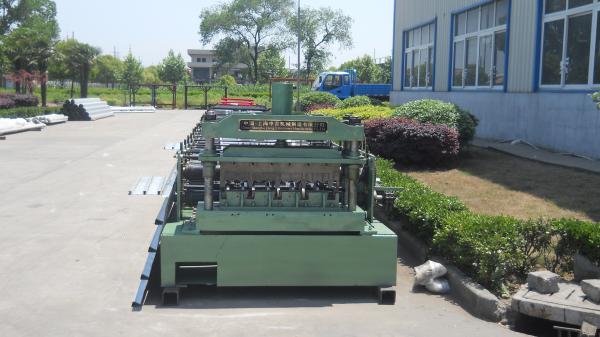

Metal Roll Forming Equipment , Galvanized Floor Decking Forming Machine
Metal Roll Forming Equipment , Galvanized Floor Decking Forming Machine
Metal Roll Forming Equipment , Galvanized Floor Decking Forming Machine
Metal Roll Forming Equipment , Galvanized Floor Decking Forming Machine
Specifications
Brand Name :
ZBR
Model Number :
915
Certification :
ISO9001:2008
Place of Origin :
Jiangsu China
MOQ :
1 SET
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
10 Stes Per Month
Delivery Time :
30-45 days
Packaging Details :
Export Package
Raw material processed :
Pre-painted plate/ galvanized plate 0.5-1.2mm
Accessories included :
punching system
Active shaft material :
high grade No.45 carbon wrought
Diameter of shaft :
95mm
Cr-Plating Size :
0.05mm
Description

Metal Roll Forming Equipment , Galvanized Floor Decking Forming Machine​

Specifications of the equipment

No Deck Metal Floor Tile Glazing Machine
1 Dimensions (L*W*H) 14000*1500*1300mm
2 Total power

Motor power-22kw

Hydraulic power-4kw
3 Rows of rollers 24 rows
4 Productivity 10-12m/min
5 Diameter of shaft 95mm
6 Voltage 380V 50Hz 3Phases
7 Machine body 450mm H-model Steel
8 Middle plate 22mm steel
9 Weight 14000kg
10 Shafts 45# steel quenching treatment
11 Rollers 45# steel plated with chrome
12 Raw material processed

Pre-painted plate/ galvanized plate

0.5-1.2mm
13 Accessories included punching system

PS: the above are for reference; customized design is provided.

Specification of the raw material

No
1 Suitable material pre-painted coil, galvanized coil,
2

Width of the raw material/

feeding width

 1000mm
3 cover width/ effective width 688mm
4 Thickness 0.5-1.2mm

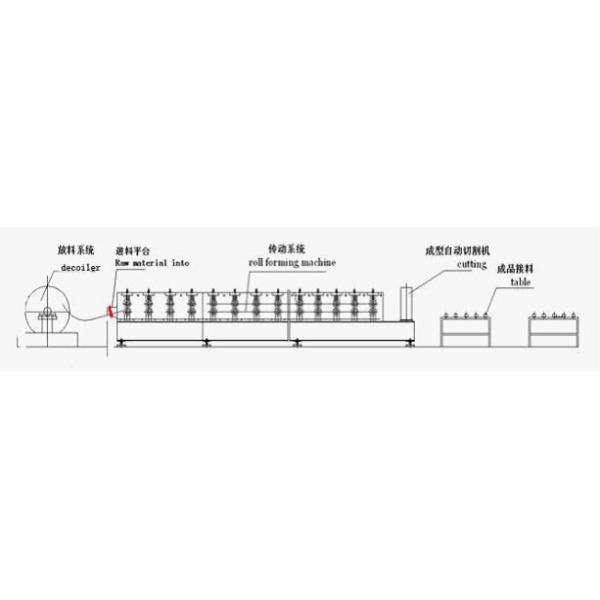

Work flow

Metal Roll Forming Equipment , Galvanized Floor Decking Forming Machine

Standard Equipment of Machine

1) Manual Uncoiler 1 set
2) Infeed Guide 1 set
3) Embossing Roller 1 set
4) Roll Forming Station 1 set
5) Post-cut Equipment 1 set
6) Hydraulic Station 1 set
7) PLC Control Console 1 set
8) Product Support Table 2 sets
9) Spare Parts 1 box

FAQ
1) Q:Can you make machine according to my design?
A:Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.
2) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
3) Q:What payment terms you accept?
A:Commonly is TT, 30% deposit and 70% before shipment, and sometimes we can consider more for you as per your request.
4) Q:What is the warranty for our machine?
A:We have one year guarantee, and provide whole life's technical support.

Metal Roll Forming Equipment , Galvanized Floor Decking Forming Machine
