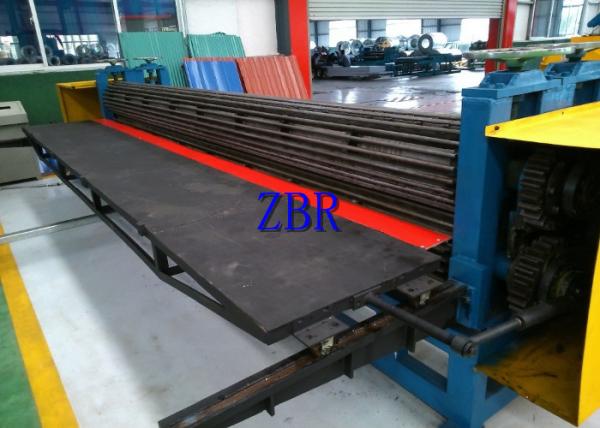

Roofing Barrel Corrugated Sheet Metal Roll Forming Machines/Barrel Corrugation Machine
Roofing Barrel Corrugated Sheet Metal Roll Forming Machines/Barrel Corrugation Machine
Roofing Barrel Corrugated Sheet Metal Roll Forming Machines/Barrel Corrugation Machine
Roofing Barrel Corrugated Sheet Metal Roll Forming Machines/Barrel Corrugation Machine
Specifications
Brand Name :
ZBR
Model Number :
ZBR-B-13
Certification :
SGS/BV
Place of Origin :
Jiangsu
MOQ :
1 SET
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
10 sets
Delivery Time :
30 days
Packaging Details :
export package
Material Thickness :
0.15-0.4mm
Power(W) :
4+4KW
Output Roller Diameter :
330mm
Hydraulic :
40#
Machine Size :
5000X 2000X1650
Color :
Client's Request
Description

Roofing Barrel Corrugated Sheet Metal Roll Forming Machines/Barrel Corrugation Machine

Technical Parameters
Technical Specifications:
Length Of The Sheet : 2500mm/3000mm/3660mm/4267mm. Max
Width Of The Sheet : 762/914/1000 mm. To 1250 mm
Thickness Range Of Sheet : 0.15 Mm To 0.45 Mm
Material To Be Corrugated : Full Hard, Semi-Hard, Soft Galvanised Sheets, Alu-Zinc Alloy & Ppgi Sheet
Drive : 22kw, Ac, For Type A 3 Phase
O.D. Of Corrugation Rolls : 380 mm (20mm Diameter Rod)
O.D. Of Pinch Rolls : 317 mm.
Corugation Parameters : As Per 3316 To Jis-Sgch –1987.
Wt. Of The Machine : 6 Tonnes Approx .
Production Capacity : 1.5-18 Meter Per Minute.

Sheets thickness and machine capacity
Sheet Thickness(mm) Nature of Sheets No. of Sheet
Per Pass		 Output Rate (sheets/8 hrs)
100% 80%
.65 - .40 Annealed 1 5,760 4,600
.40 - .35 Unannealed 1 5,760 4,600
.35 - .25 Unannealed 2 11,250 9,200
.25 - .20 Unannealed 3 17,280 13,800
.20 - .14 Unannealed 4 23,040 18,400
Specification
Models Roll Revolution Corrugation Sheet length (max.) Motor Floor space Net weight
(Solid Corrugation roll)
RE-82 12rpm Large 8 ft 7.5kw 4,080 x 2,400 8,300
2.5m
RE-102 10 ft 11kw 4,765 x 2,400 9,500
3.1m
RE-122 12 ft 15kw 5,545 x 2,400 11,000
3.7m

Roofing Barrel Corrugated Sheet Metal Roll Forming Machines/Barrel Corrugation Machine
Roofing Barrel Corrugated Sheet Metal Roll Forming Machines/Barrel Corrugation Machine
