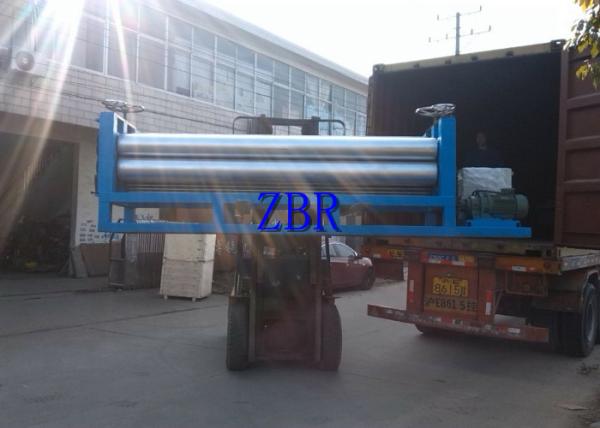

6Kw Round Wave Roof Making Machine Barrel Drum Type 5000X 2000X1650 mm​

Round wave machine Barrel Drum type metal sheet corrugated machine is a kind of roofing sheet roll forming machine for making roofing panel sheet made by colour steel or PPGI.round wave is a kind of description of metal sheet, it is also called metal sheet roll former.round waveroofing sheet is quite popular in South African, Vietnam , Dominica repubilic, Ethiopia and other areas.

Why some sheet panel need the round wave machine while some sheet panel machine need the cold roll forming machine?
The difference is that, the sheet panel made by the round waveroofing sheet machine is much thinner and with hardness up to 550 Mpa.The thickness range is: 0.2-0.6. But the thickness of the cold roll forming machine coil is 0.3-1.0mm as usual.
Which machine with higher capacity between the round wave machine and cold roll forming machine?
The capacity of the round wave machine and cold roll forming machine is more or less similar capacity, the round wave machine can press several pieces of the sheet at one time.
For more information about the round wve machine
please refer t bebow informtion

Round wave machine Barrel Drum type metal sheet corrugated machine

Technical Information

Length of the sheet: 2500mm/3000mm/3660mm/4267mm. MAX

Width of the sheet: 762/914/1000/1250 mm(+25-10)

Thickness of range of sheet: 0.14 MM TO 0.60 MM

Material to be corrugated: Full hard, semi-hard, soft galvanized sheet, Alu-zinc alloy & PPGI sheet

Drive: 11 KW~15KW, 1440 RPMAC, for type as 3 phase

O.D. of corrugated rollers: 380-390mm

O.D. of pinch rollers: 260-270 mm

Speed: 12-15 Strokes per min (can be adjusted by pulley)

Corrugated Parameters: As per 3316 to JIS-SGCH-1987

WT. of the machine: 5.5T APPROX.

Production Capacity: 24.30 sheets from 0.15 to 0.20 mm & 12-15 sheet from 0.22 to 0.63 mm per minute.
