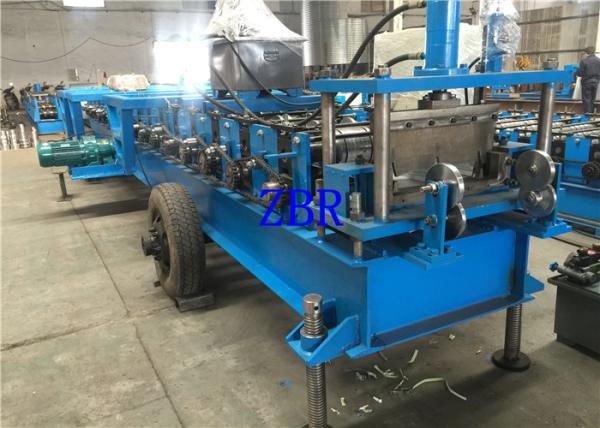

Mold Forging Cold Roll Forming Machine OD 600-1000 mm Roof Tile Production Line
Mold Forging Cold Roll Forming Machine OD 600-1000 mm Roof Tile Production Line
Mold Forging Cold Roll Forming Machine OD 600-1000 mm Roof Tile Production Line
Mold Forging Cold Roll Forming Machine OD 600-1000 mm Roof Tile Production Line
Specifications
Brand Name :
ZBR
Model Number :
ZBR-G-504
Certification :
CE, SGS, ISO9001
Place of Origin :
Jiangsu
MOQ :
1 SET
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
export package
Forging Forming Method :
Mold Forging
I.D :
Φ350~Φ450mm
Advantage :
Simple Structure
O.D :
Φ600~1000mm
Type :
Forging Operation
Transport Package :
Seaworth Package
Description

Mold Forging Cold Roll Forming Machine OD 600-1000 mm Roof Tile Production Line

Cold Roll Forming Machine Advantage
1. PLC computer control
2. No noise, no shake
3. Hydraulic system, long operating
4. Easy operation
5. Maintenance-free

Cold Roll Forming Machine Main Parts
1.1 Feeding width: 1000mm
1.2 Effective width: 910mm
1.3 Material thickness: 0.3-0.8mm

2. Process flow: Decoiling--feeding---forming---cutting---production

3. Manual Decoiler:
3.1 Material coil inner diameter: 450mm-700mm
3.2 Max coil width: 1200mm
3.3 Carrying capacity: 5T

4. Forming Device:
4.1 Number of forming steps: 13 steps
4.2 Shaft material: 45# steel with harden treatment, outer diameter 75mm
4.3 Roller material: 45# steel
4.4 Main motor power: 3kw
4.5 Forming speed: 8-10m/min
4.6 Voltage: 380V/50Hz/3 phase

5. Cutting Device:
5.1 hydraulic cutter
5.2 blade, puncher and mold material: Cr12 steel with quenched treated 60-62C
5.3 cutting system: Advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.

6. Controlling Device:
6.1 screen: 5.7 inch Taida screen from Taiwan
6.2 PLC: Taida DVP14ES from Taiwan
6.3 coder: Japanese Omron E6C2

7. Hydraulic:
7.1 Advanced hydraulic system from Taiwan
7.2 Power: 3kw
No. Main parameter of Cold Roll Forming Machine
1 Suitable to process Color steel plate
2 Width of the plate 1000/1200mm
3 Rollers Up layer: 10 rows,
Down layer: 11 rows
4 Dimensions 7.2*1.55*1.71m
5 Power 4+4kw
6 Thickness of the plate 0.3-0.6mm
7 Productivity 8-10m/min
8 Material of the cutting blade Cr12
9 Diameter of the roller Φ 70mm
10 Weight About 5.6T
11 Voltage 380V 50Hz 3phases
15 Control system PLC control

Why choose us?
1. We can make and design all kinds of roll forming machine according to customer's requests.
2. This is a very perfect and durable equipment. We have more than 10 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
