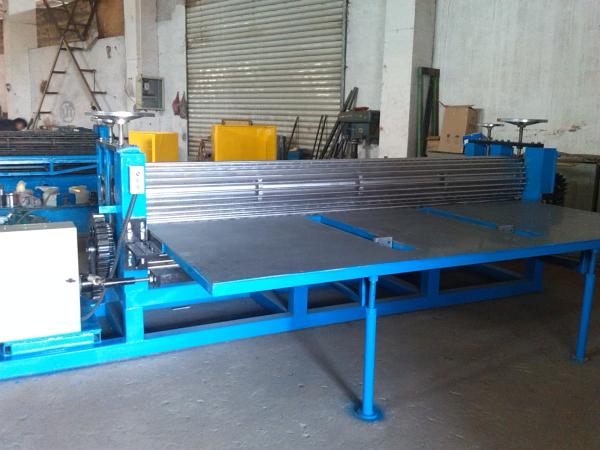

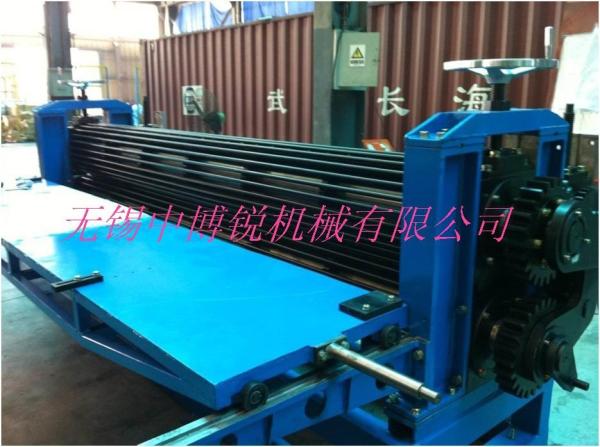

Blue Barrel Type Roof Making Machine / Corrugated Sheet Making Machine
Blue Barrel Type Roof Making Machine / Corrugated Sheet Making Machine
Blue Barrel Type Roof Making Machine / Corrugated Sheet Making Machine
Blue Barrel Type Roof Making Machine / Corrugated Sheet Making Machine
Specifications
Brand Name :
ZBR
Model Number :
ZBR-B-11
Certification :
SGS/BV
Place of Origin :
Jiangsu
MOQ :
1 SET
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
10 sets
Delivery Time :
30 days
Packaging Details :
export package
Roller material :
45# Forged Steel
Color :
Blue
Shaft diameter :
75mm
Thickness :
0.3-0.8mm
Working Table Height: :
2500mm
Machine Weight :
4T
Description

Blue Barrel Type Roof Making Machine / Corrugated Sheet Making Machine​

1. Advantage:
1.1 CE and ISO certificate
1.2 Easy operation
1.3 Low price and high quality
1.4 High productivity
1.5 PLC control system
Blue Barrel Type Roof Making Machine / Corrugated Sheet Making Machine

2. Technical Parameter

1) Barrel roll revolving speed: 1.5r/min (min),

16r/min (max) (frequency converting control)

2) Panel output speed: 1.5-18m/min (frequency converting control)

3) Max sheet length: 3660 mm (+ 50-0)

4) Max sheet width: 762/914/1000/1250 mm(+25-10)

5) Panel height of corrugation: 18 mm± 1.5

6) Panel pitch of corrugation: 76.2 mm± 2

7) Barrel roll diameter: φ380mm

8) Rod quantity of barrel roll: 25

9) Rod diameter: φ20mm (bearing steel with heat treatment)

10) Output roller diameter: φ330 mm

11) Barrel roll adjustment stroke: 80mm

12) Output roller adjustment stroke: 60mm

13) Working table height: 850mm

14) Machine weight: about 5.5T

15) Total power: 5.5KW


Blue Barrel Type Roof Making Machine / Corrugated Sheet Making Machine
