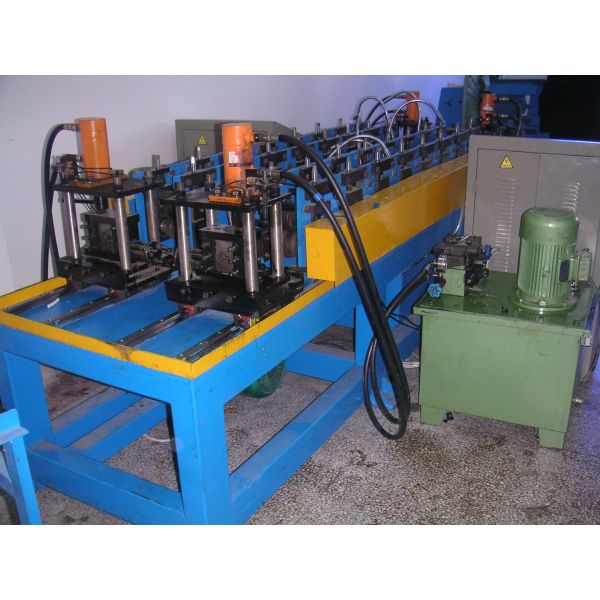

Metal Cold Roll Forming Process Totally Automatic Stud And Track Roll Forming Machine
Metal Cold Roll Forming Process Totally Automatic Stud And Track Roll Forming Machine
Specifications
Brand Name :
ZBR
Model Number :
ZBR-G-510
Certification :
CE, SGS, ISO9001
Place of Origin :
Jiangsu
MOQ :
1 SET
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
export package
Usage :
Ceiling
The shaft :
70mm Solid steel keel Roll Forming Machine
shaft material :
#45 steel
Max.Forming Speed :
12-15 M/Min
Control system :
Totally Automatic
Weight :
6.5T
Description

Metal Cold Roll Forming Process Totally Automatic Stud And Track Roll Forming Machine


Features of Cold Roll Forming Machine:


The cold roll forming machine is mainly composed of a uncoiler, straightener, molding main machine, and cutting machine, punch, controller of electric apparatus, etc. It can be classified into chain transmission cold roll forming machine and gear-driven cold roll forming machine as per drive modes; According to external structure, gantry-type and hanging type are available.

Applications of Cold Roll Forming Machine:


The cold roll forming machine are more and more widely used in various fields. It can produce door & window rolling profiles, corrugated plates, C/Z profile steel, sandwich panels etc. For construction industries, make car door& window frames, cabinet boards, frames, girder frames for auto industries, and produce elevator profiles or highway barriers, store shelves, and electric control box frames etc.
We are a China roll forming machine manufacturer, specializing in developing and manufacturing of panel forming machine, metal roof forming machine, roof panel forming machine, sandwich panel machine and sheet metal forming machine. We are a leading exporter in the field of steel structure construction, can provide high quality roll forming machine through customer design, we also provide good after sale service and installation in customer needs. We are Chinese forming machine supplier, our metal forming equipment is also for making steel tile, C and Z purlin, steel plate, door panel, floor deck, spiral duct and wave panel. Our cold formed profile equipment is of stable performance, high production yield and easy operation, we sure to provide quality and low price roll forming machine for you. Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefit.

Features of Cold Roll Forming Machine:


The cold roll forming machine is mainly composed of a uncoiler, straightener, molding main machine, and cutting machine, punch, controller of electric apparatus, etc. It can be classified into chain transmission cold roll forming machine and gear-driven cold roll forming machine as per drive modes; According to external structure, gantry-type and hanging type are available.


Components and Technical Specification

No. item Parameter (all is subject to our final design)
1 Suitable raw material Type Common galvanized & pre-painted steel
Yield strength 235MPa (or other high strength steel)
Thickness(mm) 0.4-0.7
width(mm) According to final design
2 Manual uncoiler's capacity Max.5tons
3 Forming speed(m/min) About 18-20m/min
4 Main motor power(KW) 4 kw
5 Hydraulic power(KW) 3kw
6 Forming roller groups Around19-20 groups
7 Raw material of forming roller High quality No.45 steel
8 Raw material of cutting blade Cr12mould steel with quenched treatment
9 controlling system Mitsubishi PLC& converter
10 Suitable industrial voltage According to your special requirement
11 Machine dimensions(L*W*H) 6.8m×1.8m×1.52m
12 Machine weight About 9-10tons


Metal Cold Roll Forming Process Totally Automatic Stud And Track Roll Forming Machine
