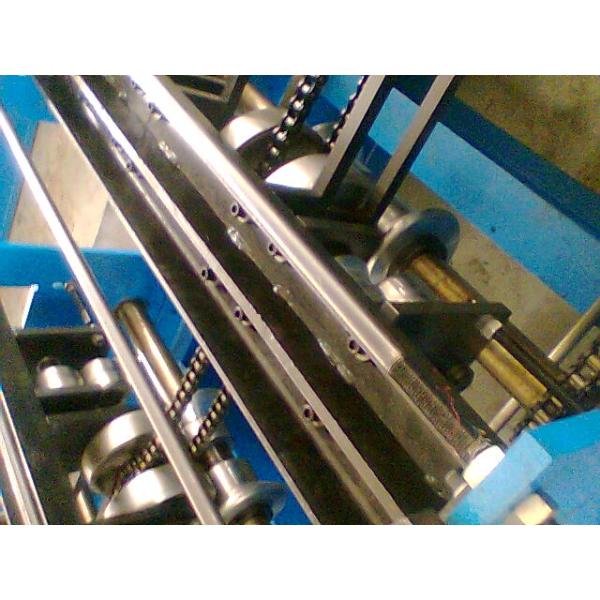

High Grade No.45 Forged Steel Clip Lock Standing Seam Metal Roof Sheet Making Roll Forming Machine
High Grade No.45 Forged Steel Clip Lock Standing Seam Metal Roof Sheet Making Roll Forming Machine
High Grade No.45 Forged Steel Clip Lock Standing Seam Metal Roof Sheet Making Roll Forming Machine
High Grade No.45 Forged Steel Clip Lock Standing Seam Metal Roof Sheet Making Roll Forming Machine
High Grade No.45 Forged Steel Clip Lock Standing Seam Metal Roof Sheet Making Roll Forming Machine
High Grade No.45 Forged Steel Clip Lock Standing Seam Metal Roof Sheet Making Roll Forming Machine
Specifications
Brand Name :
ZBR
Model Number :
ZBR-S-112
Certification :
CE ISO
Place of Origin :
Jiangsu
MOQ :
1 SET
Price :
Negotiated
Payment Terms :
Negotiated
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
export package
After-Sale Service :
Lifetime
Material Width :
Up to 1500mm
Total Power :
About 22KW
Shaft Diameter :
Up to 120mm
Operation Worker :
one
Production Type :
Automatically
Description
Technical Parameters

Size 8200*1400*1500mm
Weight 6500KGS
Voltage 380V/50HZ/3PH
Motor Power 5.5KW
Hydraulic Power 2.2KW
Forming Steps 16Steps
Working Speed 8-12m/min
Height of Roofing 40mm
Effective Width 729mm
Feeding Material Width 914mm
Thickness 0.3-0.6mm
Thickness for common use and test 0.4mm,0.5mm
Tolerance ±2mm
Roller material

High grade 45# forged steel, Plated hard chrome

on the surface of rollers, polished all the rollers;
Material of principal axis High grade 45# forged steel
Main Accessories

No Items Quantity Remarks
1 Manual/Hydraulic Uncoiler 1set Up to customer
2 Main forming machine Pre-cutting device 1set Up to customer
Feeding device 1set
Hydraulic system 1set
Roll forming system 1set
Post cutting device 1set
Protective cover 1set Up to customer
3 PLC control system with touch screen 1set
4 Run out table 4pcs Up to customer
