0.8mm Standing Seam Roof Roll Forming Machine 50HZ Standing Seam Panel Equipment
0.8mm Standing Seam Roof Roll Forming Machine 50HZ Standing Seam Panel Equipment
Specifications
Brand Name :
DLY
Model Number :
Snap Lock Metal Roofing Machine
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
40 days
Packaging Details :
naked or wooden
name :
Snap Lock Metal Roofing Machine
Plc :
mitsubishi/delixi/siemens
Tile type :
roll forming machine
Control system :
PLC(imported Brand)
Cutting blade material :
Cr 12 Mov
Cutting type :
automatic cutter
Thickness :
0.3mm - 0.8mm
Product name :
Metal Sand stone coated decra roofing tile making machine
Description

Automatic Metal Bead Ribs Snap Lock Metal Roofing Machine For Wall And Roof

1. Description of Snap Lock Metal Roofing Machine

  • Manually operated E-Z cut shear
  • One steel reel
  • Two reel decoiler with friction brake
  • Automatic screw/nail hole slotter
  • All forming rollers industrial hard chrome plated
  • Length control limit switch
  • 40 feet of run-out-table
  • 10 forming stations

2. Specifications of Snap Lock Metal Roofing Machine

Item Parameter
Material Type 600mm Aluminum magnesium manganese
Thickness 0.7-1.2mm
Machine material Active shaft No.45 steel tempered,φ70mm diameter,HRC treading and polishing
Roller No.45 steel chorme plated,heat treating,polishing,CNC machining two times Roughing and finishing
Cutting blade Cr12 quenched,polishing two times
Power requirement Type 380V/3PH/50HZ Customized
Main motor About 7.5Kw Simens
Hydraulic About 4Kw,china famous brand:shanghai li chao
Speed Forming speed Single 8-15mm/min,speed can be adjusted by transducer
Manual decoiler Type Manual decoiler Expand by hand
Max capacity 5 tons
Suitable OD 600mm
Suitable ID 508mm
Max width 600mm
Forming stand 13steps roller forming L*W*H:6.2*1.4*1.3m
Type of cutting Length-set cutting

Guiding pipe

 Hydraulic cutter

Eac side one Oil cylinder

Main body:steel panel welding
Transmission 1.0inch drive GB stander
Control system Delta PLC& tansducer Touch screen (delta)
Side middle plate 18mm thickness steel GB stander
Main body Frame 400 H steel,Gb stander
Auto pre-cutting device Full automatic,setting any length in PLC,Hydraulic cutting system
Film guard stand 1 piece
Machine color Main body is sky blue color,cutting blade pillar is orange
Machine operating program Touch scree Delta

3. Features of Snap Lock Metal Roofing Machine
  • 6 Urethane drive rollers
  • Free-floating forming rollers mounted
  • Two sets of bead rollers included
  • Easy adjustable width of panel from 12” - 24”
  • Includes clip relief rollers
  • Easy change to different various profiles (custom design available)
  • Manual Exit end shear
  • Material width 11” to 30.5”
  • Limit switch for length control
  • Liberty wireless control For/Rev Start/Stop
  • This advanced machine comes with the any available profile up to your choice.
  • Tooling rollers are interchangeable so you can order extra tool set or few.

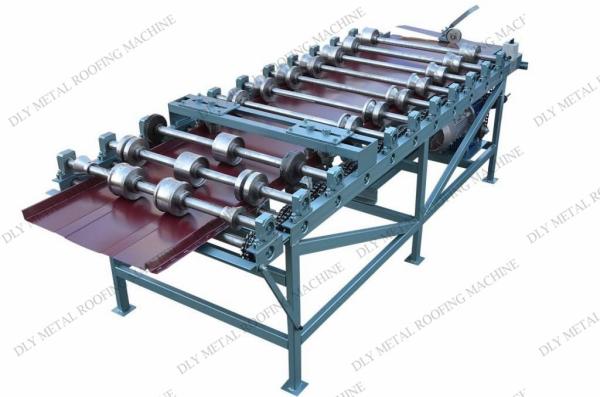

4. Detail pictures of Snap Lock Metal Roofing Machine

0.8mm Standing Seam Roof Roll Forming Machine 50HZ Standing Seam Panel Equipment0.8mm Standing Seam Roof Roll Forming Machine 50HZ Standing Seam Panel Equipment0.8mm Standing Seam Roof Roll Forming Machine 50HZ Standing Seam Panel Equipment0.8mm Standing Seam Roof Roll Forming Machine 50HZ Standing Seam Panel Equipment
