Hydraulic Cutting Siemens Double Layer Forming Machine H400 15t Metal Roofing Roll
Hydraulic Cutting Siemens Double Layer Forming Machine H400 15t Metal Roofing Roll
Specifications
Brand Name :
DLY
Model Number :
double layer machine
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
40 days
Packaging Details :
naked or wooden
name :
double Layer Forming Machine
Voltage :
380V/50Hz/3phases
Weight :
10T
Warranty :
1 year
Cutting blade material :
cr12 with quenched treatment
Control system :
PLC,Siemens PLC control with touch screen
Color :
BLUE AND YELLOW,Customized
Roller stations :
different profile with different stations
Description

Hydraulic Cutting H400 Double Layer Machine 15T Metal Roofing Roll Forming Machine

1. Brief introduction of Double Layer Forming Machine

Double layer forming machines for roofing and cladding sheets , with the greatest advantage is one double layer machine can make two design sheets.

usually, one layer forming machine or single layer forming machine only make one roofing design.

Therefore, if customer has limited install space and required to make two roofing designs, double deck machine is best choose.

shall we introduce you difference between one layer machine and double layer machine?

one layer machine include 5 ton manual decoiler, forming machine with post cut, hydraulic station, plc controller run out table.

double layer machine have additional set rollers and cut blade for another roofing design. that is , two sets rollers share with one machine base, motor , hydraulic station, plc controller and cut frame.

therefore, double layer forming machine only work one layer at one time.

Recently, double layer machine cut controlled by motor is adopted, it is good use in hot area, because, traditionally, hydraulic station give power to cut action, if in hot area, the oil in hydraulic station will very hot.

while motor control cut in hot area is good idea.

2. Specifications of Double Layer Forming Machine

High quality glazed tile IBR sheet double layer trapezoidal roof press making machine roll forming machinery
1.Formed Material
PPGI,GI,AI
Thickness:0.3-0.8mm
2.Decoiler
Hydraulic decoiler
Manual decoiler(will give you as free)
3.Main body
Roller station
18 rows(As your requirement)
Diameter of shaft
80mm solid shaft
Material of rollers
45# steel, hard chrome plated on the surface
Machine body frame
350 H steel
Drive
Double Chain transmission
Dimension(L*W*H)
7500*1600*1600(customize)
Weight
7.5T
4.Cutter
Automatic
cr12mov material, no scratches, no deformation
5.Power
Main Power
5.5KW
6.Voltage
380V 50Hz 3Phase
As your requirement
7.Control system
Electric Box
Customized(famous brand)
Language
English(Support multiple languages)
PLC
Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed
8-12m/min
15-20m/min
The speed depends on the shape of the tile and the thickness of the material.


3. Customer Feedback of Double Layer Forming Machine

1) Engineer will give free training lessons to labors in buyer's factory.

2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD150 per day for engineer.

3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

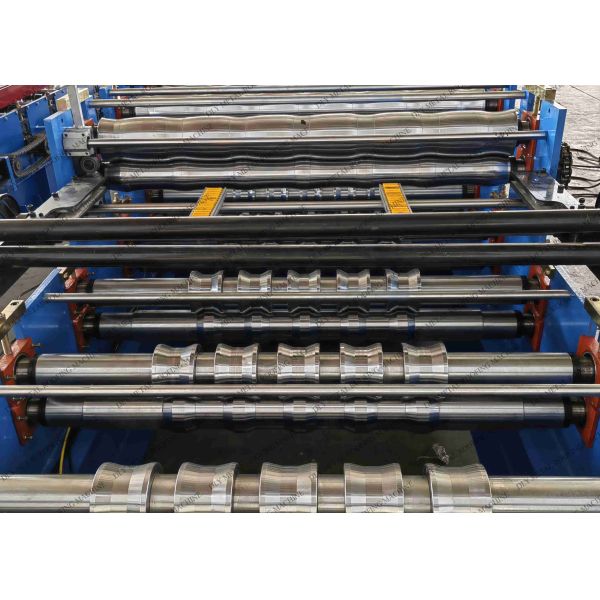

4. details photos of Double Layer Forming Machine

Hydraulic Cutting Siemens Double Layer Forming Machine H400 15t Metal Roofing RollHydraulic Cutting Siemens Double Layer Forming Machine H400 15t Metal Roofing RollHydraulic Cutting Siemens Double Layer Forming Machine H400 15t Metal Roofing RollHydraulic Cutting Siemens Double Layer Forming Machine H400 15t Metal Roofing Roll
