CR12 Roofing Corrugated Sheet Roll Forming Machine PLC For Metal Roof Making
CR12 Roofing Corrugated Sheet Roll Forming Machine PLC For Metal Roof Making
Specifications
Brand Name :
DLY
Model Number :
TR18
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
40 days
Packaging Details :
naked or wooden
name :
Trapezoidal Roll Forming Machine
Warranty :
12 months
Voltage :
380V
Condition :
new
After-sales service provided :
Engineers available to service machinery overseas, Field installation, commissioning and training, Online support, Overseas service center available
Color :
green blue yellow,according to customer's request
Use :
Roof,Wall
Weight :
6000kgs
Description

80V 50HZ PLC Trapezoidal Roll Forming Machine For Metal Roofing

1. Brief introduction of Trapezoidal Roll Forming Machine

Trapezoidal Roll Forming Machine​ was used for corrugate metal sheet to different profiles, then these profiles can be used as roofing, wall, fence, light steel house and etc., our roll forming machine adopt PLC automatic control system, only need one person to operate.

this profile is very popular used for roofing, every month have this profile machine in production.

Our advantage is we have professional design team, we take EU machine quality as our machine standard. We pay attention to every machine details and components, so the quality of our machines has been recognized by our customers and peers.

A roll forming machine (or metal forming machine) fabricates specific configurations out of long strips of metal, most commonly coiled steel. In most applications, the required cross-section profile of the piece is specifically designed for the machine to bend the metal as necessary.

2. Description of Trapezoidal Roll Forming Machine

Machine Specifications
Weight About 9000kgs
Size About 11m x 1.7m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material PPGI and PPGL Coils
Thickness 0.3-0.8mm
Coil width 1220mm & 1450mm
Yield Strength 235Mpa-550Mpa
Main Technical Parameters
Quantity of forming rollers stations 24
Diameter of forming rollers shafts 80mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 7.5kw
Hydraulic unit motor power: 3kw
Electric voltage According to customer’s requirement

3. Certification of Trapezoidal Roll Forming Machine

Tile roofing machine was container load to Bosnia.

Our roll forming machines have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!

CR12 Roofing Corrugated Sheet Roll Forming Machine PLC For Metal Roof Making

4.​ FAQ of Trapezoidal Roll Forming Machine

● What is your machine warranty?

some quick-wear parts will be container together with machine.

if some parts damaged within one year, we will send new one to you for free, just freight up to you.

● Is it complicated to operate the machine?

It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.

● How many different profile roofing one machine can produce?

One machine can produce one or two different profiles.

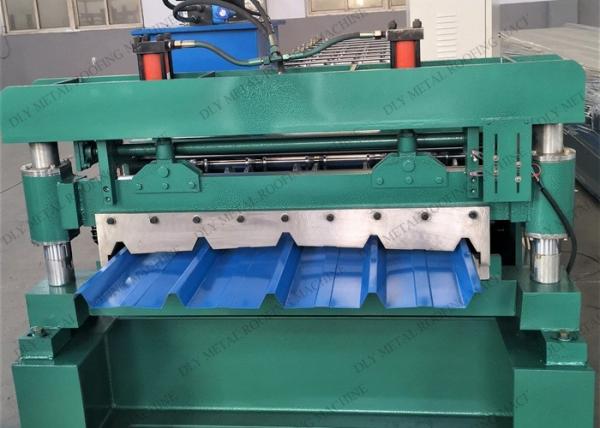

5. Detail photos of Trapezoidal Roll Forming Machine

CR12 Roofing Corrugated Sheet Roll Forming Machine PLC For Metal Roof MakingCR12 Roofing Corrugated Sheet Roll Forming Machine PLC For Metal Roof MakingCR12 Roofing Corrugated Sheet Roll Forming Machine PLC For Metal Roof Making

CR12 Roofing Corrugated Sheet Roll Forming Machine PLC For Metal Roof Making
