Hydraulic 5.5kw Corrugated Iron Making Machine 50HZ Glazed Tile Forming Equipment
Hydraulic 5.5kw Corrugated Iron Making Machine 50HZ Glazed Tile Forming Equipment
Specifications
Brand Name :
DLY
Model Number :
TR18
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
40 days
Packaging Details :
naked or wooden
name :
Trapezoidal Roll Forming Machine
Weight :
5000kgs
Voltage :
380v.50Hz.3P
Control system :
Totally automatic PLC Taiwan Delta or Siemens control system
Use :
roof and wall
Warranty :
12 months
Raw material :
steel sheet
Power(w) :
5.5 kw
Description

380V 50HZ Metal Roofing Trapezoidal Roll Forming Machine With Hydraulic Cutting

1. Brief introduction of Trapezoidal Roll Forming Machine

A trapezoidal sheet roll forming machine is a regular metal sheet roll former that produces metal roofing sheets or roof panels for both individual and industrial building.

Trapezoidal roofing sheets are the most popular metal roof panels not only for residential buildings but also for commercial or industrial buildings. There are so many different profiles for a variety of applications. People like to use low-profile trapezoidal sheets for elevation and IDT roofing, while for wide-span roofing and load-bearing structures, they tend to select high-profile trapezoidal sheets. In addition, trapezoidal sheets have other names in Africa as industrial trough IT4, IT5, IT6 roof profiles, therefore people can barely find two exactly the same trapezoidal sheet roll forming machine in the markets.

2. Description of Trapezoidal Roll Forming Machine

Machine Specifications
Weight About 9000kgs
Size About 11m x 1.7m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material PPGI and PPGL Coils
Thickness 0.3-0.8mm
Coil width 1220mm & 1450mm
Yield Strength 235Mpa-550Mpa
Main Technical Parameters
Quantity of forming rollers stations 24
Diameter of forming rollers shafts 80mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 7.5kw
Hydraulic unit motor power: 3kw
Electric voltage According to customer’s requirement

3. After-Sale Service of Trapezoidal Roll Forming Machine

  • Warranty :Two years,and we will provide technical support for whole life of the equipment.
  • Delivery time: Within 25 days after deposit receipt your payment
  • Guarantee period: 24months free service/ pay service all the machine life
  • Installation and training: If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.

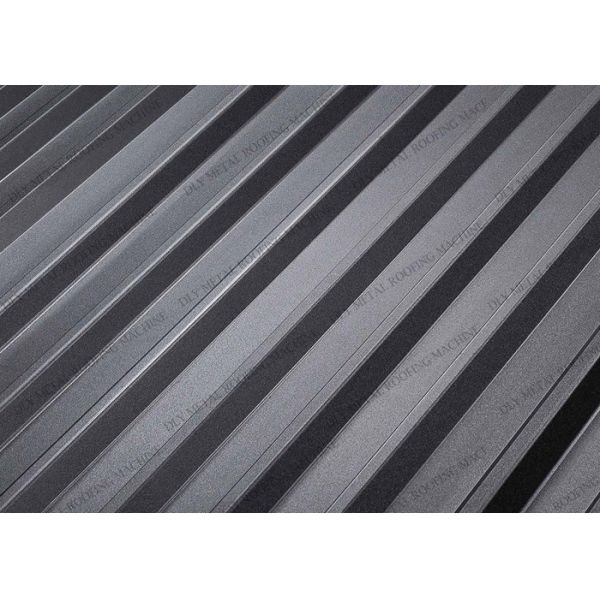

Hydraulic 5.5kw Corrugated Iron Making Machine 50HZ Glazed Tile Forming Equipment

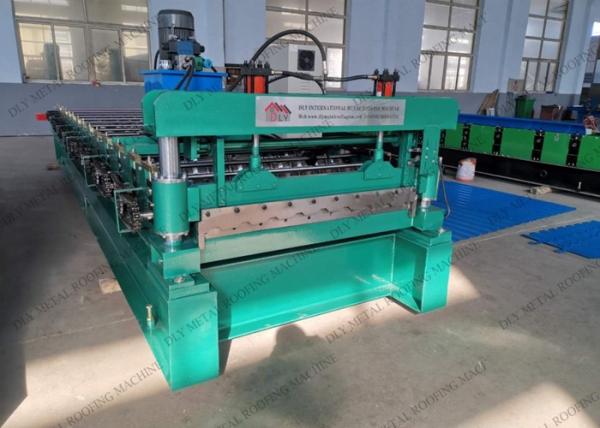

4. Detail photos of Trapezoidal Roll Forming Machine

Hydraulic 5.5kw Corrugated Iron Making Machine 50HZ Glazed Tile Forming EquipmentHydraulic 5.5kw Corrugated Iron Making Machine 50HZ Glazed Tile Forming EquipmentHydraulic 5.5kw Corrugated Iron Making Machine 50HZ Glazed Tile Forming EquipmentHydraulic 5.5kw Corrugated Iron Making Machine 50HZ Glazed Tile Forming Equipment
