Hydraulic Cutting 1.25m Aluminium Corrugating Machine PLC Metal Roofing Roll Former
Hydraulic Cutting 1.25m Aluminium Corrugating Machine PLC Metal Roofing Roll Former
Specifications
Brand Name :
DLY
Model Number :
TR39
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
40 days
Packaging Details :
naked or wooden
name :
Trapezoidal Roll Forming Machine
Weight :
around 6000kgs
Warranty :
12 months
Power(w) :
10 kw
Use :
roof sheet produce
Dimension(l*w*h) :
6..3*1.3*1m
Control system :
PLC(Touch Screen)
Name :
roof sheets trapezoid machine
Description

Hydraulic Cutting 380V Steel Roofing Trapezoidal Roll Forming Machine With PLC

1. Brief introduction of Trapezoidal Roll Forming Machine


Our roll forming machine uses 28 forming stations to make perfect B Deck profile, if the yield strength of steel material is higher than 345MPa, it will need more forming stations. Our machine doby is sturdy and durable. The machine body is about 20 meters long, it can be disassembled into 3-4 sections for easy transportation and installation. The roll forming part has two 22KW motors, Siemens brand, powerful during production. Shafts φ85mm, forming rollers GCr15, chromed plated surface is bright and not easy to rust, and will not cause scrathes on the surface of galvanized steel. The exquisite processing technology makes the machine more smooth in operation and it has a longer service life. The profile produced by our roll forming machine is straight and horizontal, with high accuracy in flatness and distortion, and the length accuracy can be controlled within plus or minus 1mm.

2. Description of Trapezoidal Roll Forming Machine

Metal Deck Roll Forming Machine
Machinable Material : Galvanized Coil Thickness(MM):0.8-1.5
Yield strength : 200 - 350 Mpa
Nominal forming speed(M/MIN): 0-20 * Or according to your requirement (Optional)
Forming station : 28 stands * According to your steel material
Decoiler : Manual decoiler * Hydraulic decoiler 10 tons (Optional)
Main machine motor brand : Simens Brand
Driving system : Chain drive * Gearbox drive (Optional)
Machine structure: Wall panel station * Forged Iron station (Optional)
Rollers’ material : GCr15 * Cr 12 (Optional)
Cutting system : Post-cutting * Pre-cutting (Optional)
Frequency changer brand : Yaskawa * Siemens (Optional)
PLC brand : Siemens
Power supply : 380V 50Hz * Or according to your requirment
Machine color : Industrial blue * Or according to your requirment

3. Packing&Shipping of Trapezoidal Roll Forming Machine

– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

– 2.This producing line is maintained free of charge for 24 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.

– 3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.

– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.

  • Hydraulic Cutting 1.25m Aluminium Corrugating Machine PLC Metal Roofing Roll Former

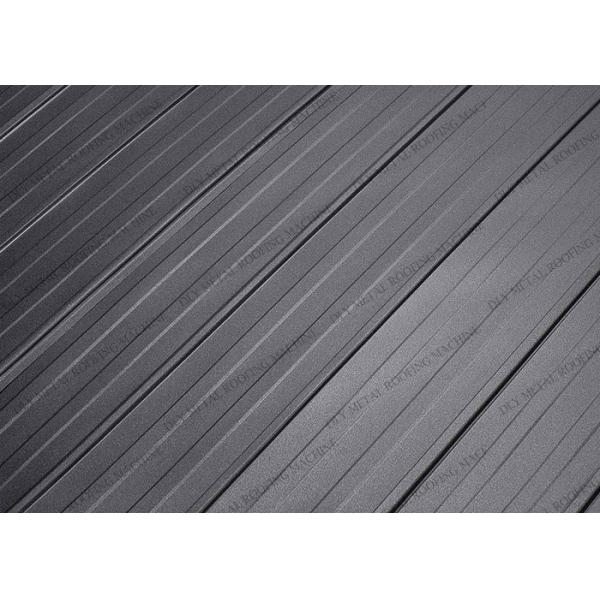

4. Detail photos of Trapezoidal Roll Forming Machine

Hydraulic Cutting 1.25m Aluminium Corrugating Machine PLC Metal Roofing Roll FormerHydraulic Cutting 1.25m Aluminium Corrugating Machine PLC Metal Roofing Roll FormerHydraulic Cutting 1.25m Aluminium Corrugating Machine PLC Metal Roofing Roll FormerHydraulic Cutting 1.25m Aluminium Corrugating Machine PLC Metal Roofing Roll Former
