Cr12 Corrugated Roll Making Machine Sinus Iron Roof Sheet Making Machine
Cr12 Corrugated Roll Making Machine Sinus Iron Roof Sheet Making Machine
Specifications
Brand Name :
DLY
Model Number :
corrugated profiling machine
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
40 days
Packaging Details :
naked or wooden
name :
Corrugated Roofing Machine
Warranty :
1 year
Shaft material :
high grade NO. 45 steel
service :
Engineers available to service machinery overseas
Dimension(L*W*H) :
7500mm * 1300mm * 1300mm
Cutter material :
Cr12 Heat Treatment
feeding material width :
1250mm / 1220mm / 1000mm
Weight :
10000kgs
Description

380V Automatic Hydraulic Cutting Corrugated Roofing Machine For Sinus Profile

1. Description of Corrugated Roofing Machine

Corrugated sheet as a durable and economical product, always popular for customers and makes huge demand in worldwide markets.

We knows well on corrugated machine, we offer 76.2mm(3 inch) pitch as standard profile and also customize heavy duty profile which thickness up to 4mm for agricultural solutions.

This serious including heavy duty profile and standard 76.2mm(3 inch) pitch with 914mm(3ft), 1000mm, 1220mm(4ft) width available for both Coated Coil (PPGI/PPGL) and Galvanized Coil (GI/GL).

2. Specifications of Corrugated Roofing Machine

Main motor power
5.5 KW
Roller material
45# steel with chromed treatment
Roller shaft material
45# steel with quenched treatment
Work speed
0-20 m/min
Dimesion
8500*1650*1500mm
Structure
Middle plate welded frame structure
Main frame
350 H steel welded
Drive mode
Chains drive
Control system
PLC control system
Hydraulic station
4kw with cooling fan system or not
Cutting type
Hydraulic cutting
Cutter material
GCr12 chromed and quenched for good hardness and using



3. Advantages of Corrugated Roofing Machine

o Customized profile and suggestions.
o Material handling solutions.
o Anti-capillary grooves, Embossing, Logo Marking.
o Full safety protection with cover guard, emergency switches, mistake proofing program.

4.​ FAQ

● What is your machine warranty?

some quick-wear parts will be container together with machine.

if some parts damaged within one year, we will send new one to you for free, just freight up to you.

● Is it complicated to operate the machine?

It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.

● How many different profile roofing one machine can produce?

One machine can produce one or two different profiles.

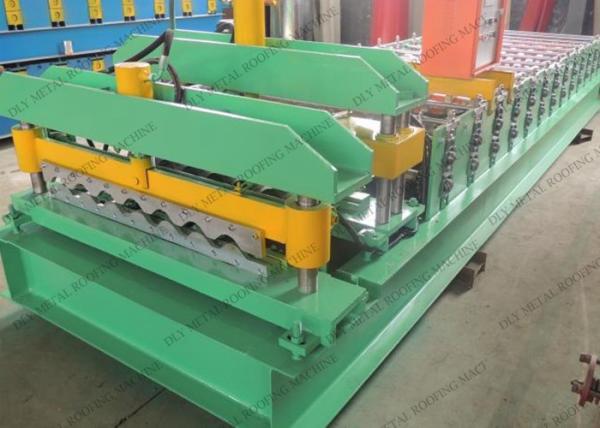

5. details of Corrugated Roofing Machine

Cr12 Corrugated Roll Making Machine Sinus Iron Roof Sheet Making MachineCr12 Corrugated Roll Making Machine Sinus Iron Roof Sheet Making MachineCr12 Corrugated Roll Making Machine Sinus Iron Roof Sheet Making MachineCr12 Corrugated Roll Making Machine Sinus Iron Roof Sheet Making Machine
