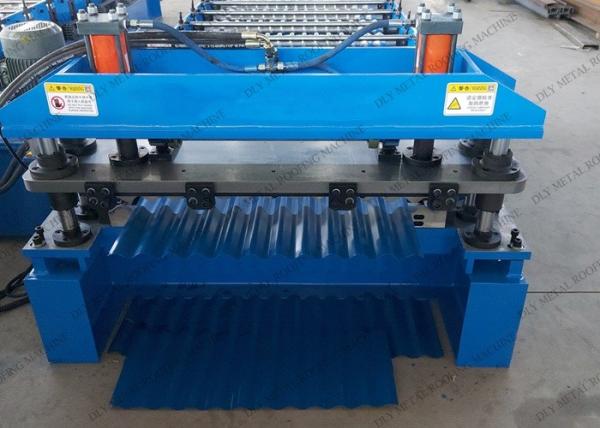

7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former
7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former
Specifications
Brand Name :
DLY
Model Number :
sinus profile
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
40 days
Packaging Details :
naked or wooden
name :
Corrugated Roofing Machine
Warranty :
12 months
Shaft material :
45# Steel
service :
Engineers available to service machinery overseas
Dimension(L*W*H) :
7.5 m*1.3m*1.3m
Raw material :
PPGI PPGL GI GL
feeding material width :
1250mm / 1220mm / 1000mm
Weight :
10000kgs
Description

Sinus 380V Hydraulic Cutting Corrugated Roofing Machine With PLC

1. Description of Corrugated Roofing Machine

Corrugated Roofing Machine was used for corrugate metal sheet to different profiles, then these profiles can be used as roofing, wall, fence, light steel house and etc., our roll forming machine adopt PLC automatic control system, only need one person to operate.

this profile is very popular used for roofing, every month have this profile machine in production.

Our advantage is we have professional design team, we take EU machine quality as our machine standard. We pay attention to every machine details and components, so the quality of our machines has been recognized by our customers and peers.

2. Specifications of Corrugated Roofing Machine

Main motor power
5.5 KW
Roller material
45# steel with chromed treatment
Roller shaft material
45# steel with quenched treatment
Work speed
0-20 m/min
Dimesion
8500*1650*1500mm
Structure
Middle plate welded frame structure
Main frame
350 H steel welded
Drive mode
Chains drive
Control system
PLC control system
Hydraulic station
4kw with cooling fan system or not
Cutting type
Hydraulic cutting
Cutter material
GCr12 chromed and quenched for good hardness and using



3. Work Flow​ of Corrugated Roofing Machine

Our Corrugated Roofing Machine​ have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!

7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former

4.​ FAQ

● What is your machine warranty?

some quick-wear parts will be container together with machine.

if some parts damaged within one year, we will send new one to you for free, just freight up to you.

● Is it complicated to operate the machine?

It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.

● How many different profile roofing one machine can produce?

One machine can produce one or two different profiles.

5. details of Corrugated Roofing Machine

7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former 7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former 7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former 7.5m Corrugated Sheet Manufacturing Machine 10000kg Corrugated Roll Former
