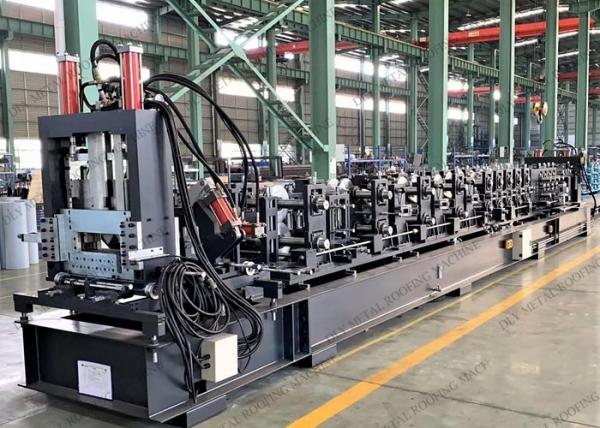

Hydraulic Cutting C Purlin Forming Machine 15KW U Channel Roll Forming Equipment
Hydraulic Cutting C Purlin Forming Machine 15KW U Channel Roll Forming Equipment
Specifications
Brand Name :
DLY
Model Number :
C/Z machine
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
40 days
Packaging Details :
naked or wooden
name :
Purlin Roll Forming Machine
Warranty :
one year
Weight :
11Ton
Type :
C profile roll forming machine
Control system :
Mitsubishi PLC and transducer
Thickness :
1.5-3mm
Color :
blue or according to customer's need
Applicable industries :
Construction works
Description

CZ80-300 PLC 15KW Purlin Roll Forming Machine With Hydraulic Cutting

1. Description of C U Z Purlin Roll Forming Machine

Purlin roll forming machine is the most popular and has an extensive use in Metal Building Systems, Huge RoofingSolutions, Construction and Renovation Projects etc. Our Purlin roll forming machine could produce C purlin, U purlin, Z purlin, machineable size range as follow: Width:0-300mm, Height: 50-100mm, Thickness:1.5-3mm. Raw material could be: cold-rolled steel, Galvanized steel, PPGI, high-tensil steel. The finished purlins meet JIS G standard, ASTM International Standard, AS/NZS International Standard etc. Simply the best purlin machine for your project.

2. Specifications of C U Z Purlin Roll Forming Machine

Purlin Roll Forming Machine
Machinable Material : A) Galvanized Coil Thickness(MM): 1.5-3
B) PPGI
C) Carbon steel Coil
Yield strength : 250 - 550 Mpa
Tensil stress : G350 Mpa-G550 Mpa
Decoiler : Manual decoiler * Hydraulic decoiler (Optional)
Punching system : Hydraulic punching station * Punching press (Optional)
Forming station : 18-20 stations
Main machine motor brand : Shanghai Dedong (Sino-Germany Brand) * Siemens (Optional)
Driving system : Chain drive * Gearbox drive (Optional)
Machine structure: Wall panel station * Forged Iron station (Optional)
Forming speed : 10-20 (M/MIN) * Or according to your profile drawings
Rollers’ material : Steel #45 * GCr 15(Optional)
Cutting system : Pre-cutting * Post- universal cutting (Optional)
Frequency changer brand : Yaskawa * Siemens (Optional)
PLC brand : Panasonic * Siemens (Optional)
Power supply : 380V 50Hz * Or according to your requirment
Machine color : Industrial blue * Or according to your requirment

3. Profiles of ​C U Z Purlin Roll Forming Machine

Hydraulic Cutting C Purlin Forming Machine 15KW U Channel Roll Forming Equipment

4.​ Characteristics of ​C U Z Purlin Roll Forming Machine

According to your section profile, size range, thickness range we could provide you different solutions of purlin roll forming machine to manufacturer a complete range of structual purlins(height and width change using automatic system by motors:
Only to produce C/U section, change time: few seconds
C/U/Z section-manual change whole line from C to Z, change time: 10 minutes
C/U/Z/M section-manual change 4 stations from C to Z, change time: 2 minutes
C/U/Z/M section-automatically change from C to Z, change time: few seconds
Regarding the cutting unit ,you can choose the pre-cut, post cut or both. Gearbox driving system with cast iron stands are more durable and recommendable.
If you only need to produce few sizes, we also suggest manually change sleeves, it’s more affordable.

We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Linbay Machinery will ensure you obtain perfectly functional profiles.

5. Detail photos of ​C U Z Purlin Roll Forming Machine

Hydraulic Cutting C Purlin Forming Machine 15KW U Channel Roll Forming Equipment

Hydraulic Cutting C Purlin Forming Machine 15KW U Channel Roll Forming Equipment

Hydraulic Cutting C Purlin Forming Machine 15KW U Channel Roll Forming EquipmentHydraulic Cutting C Purlin Forming Machine 15KW U Channel Roll Forming Equipment
