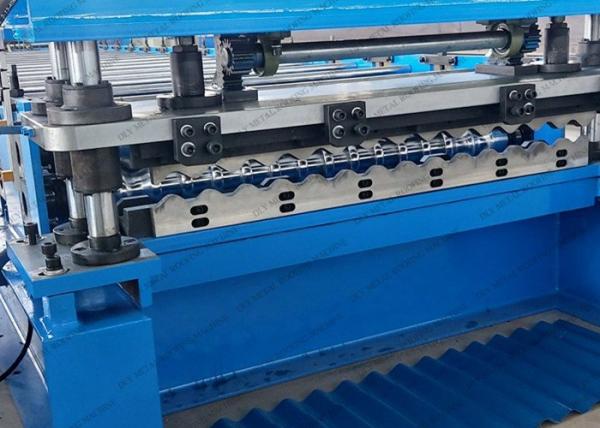

10 Ton Corrugated Sheet Forming Machine PLC Metal Roofing Sheet Roll Former
10 Ton Corrugated Sheet Forming Machine PLC Metal Roofing Sheet Roll Former
Specifications
Brand Name :
DLY
Model Number :
sinus
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
40 days
Packaging Details :
naked or wooden
name :
Corrugated Roofing Machine
control system :
PLC(imported Brand)
Color :
green blue yellow or request
Forming speed :
15 m/min
Roller material :
45# Hard chrome coated
Rolling thinckness :
0.3mm - 0.8mm
Use :
roof or wall
weight :
10T
Description

15m / Minute PLC Automatic Corrugated Roofing Machine With Hydraulic Cutting

1. Description of Corrugated Roofing Machine

Features
1. The Corrugated roll forming machine can produce corrugated sheets with different thicknesses.
2. The Corrugated roll forming machine can work at 40m/min. The normal speed is 16-20m/min.
3. The material thickness can be from 0.2mm to 4.0-5.0mm , according to your requirement.


Application
The products of the corrugated panel roll forming machine are used as roofing and wall sheets for factories, warehouses, garages, exhibition centers, cinemas, gardens, etc.

2. Specifications of Corrugated Roofing Machine

Machine Specifications
Weight About 7500kgs
Size About 10m x 1.7m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Colored Steel Coils
Thickness 0.3-0.7mm
Coil width 960mm
Yield Strength 550Mpa
Main Technical Parameters
Quantity of forming rollers stations 20-22
Diameter of forming rollers shafts 75mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 7.5kw
Hydraulic unit motor power: 3kw
Electric voltage According to customer’s requirement

3. workflow of Corrugated Roofing Machine

Manual decoiler——Feeding——Roll forming——Hydraulic stamp and cutting——Output table

10 Ton Corrugated Sheet Forming Machine PLC Metal Roofing Sheet Roll Former

4.​ FAQ

● What is your machine warranty?

some quick-wear parts will be container together with machine.

if some parts damaged within one year, we will send new one to you for free, just freight up to you.

● Is it complicated to operate the machine?

It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.

● How many different profile roofing one machine can produce?

One machine can produce one or two different profiles.

5. details of Corrugated Roofing Machine

10 Ton Corrugated Sheet Forming Machine PLC Metal Roofing Sheet Roll Former10 Ton Corrugated Sheet Forming Machine PLC Metal Roofing Sheet Roll Former10 Ton Corrugated Sheet Forming Machine PLC Metal Roofing Sheet Roll Former10 Ton Corrugated Sheet Forming Machine PLC Metal Roofing Sheet Roll Former
