20000kg 300mm C Channel Roll Forming Machine Metal Roof Tile Making With Touch Screen
20000kg 300mm C Channel Roll Forming Machine Metal Roof Tile Making With Touch Screen
Specifications
Brand Name :
DLY
Model Number :
CU machine
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
40 days
Packaging Details :
naked or wooden
name :
Purlin Roll Forming Machine
Weight :
About 20000KGS
Power(w) :
15 kw
Roller material :
GCr15
Voltage :
380V Or As Customize
Type :
C profile roll forming machine
Production capacity :
10-25 m/min
Control system :
Mitsubishi PLC and transducer
Description

20000kg C Channel Roll Forming Machine 300mm Metal Roof Tile Making Machine

1. Description of C U Z Purlin Roll Forming Machine

C Z purlin forming machine can be designed with Z , that is CZ purlin forming machine, with different sizes of 100-300mm, three sets of punching, and raw material thickness of 1.5-3.0mm, which basically meets the needs of different purlins on the market.or only C purlin machine from 3 inch to 10 inch, or punch holes or what thickness of raw material.

2. Specifications of C U Z Purlin Roll Forming Machine

Purlin Roll Forming Machine
Machinable Material : A) Galvanized Coil Thickness(MM): 1.5-3
B) PPGI
C) Carbon steel Coil
Yield strength : 250 - 550 Mpa
Tensil stress : G350 Mpa-G550 Mpa
Decoiler : Manual decoiler * Hydraulic decoiler (Optional)
Punching system : Hydraulic punching station * Punching press (Optional)
Forming station : 18-20 stations
Main machine motor brand : Shanghai Dedong (Sino-Germany Brand) * Siemens (Optional)
Driving system : Chain drive * Gearbox drive (Optional)
Machine structure: Wall panel station * Forged Iron station (Optional)
Forming speed : 10-20 (M/MIN) * Or according to your profile drawings
Rollers’ material : Steel #45 * GCr 15(Optional)
Cutting system : Pre-cutting * Post- universal cutting (Optional)
Frequency changer brand : Yaskawa * Siemens (Optional)
PLC brand : Panasonic * Siemens (Optional)
Power supply : 380V 50Hz * Or according to your requirment
Machine color : Industrial blue * Or according to your requirment

3. Profiles of ​C U Z Purlin Roll Forming Machine

20000kg 300mm C Channel Roll Forming Machine Metal Roof Tile Making With Touch Screen

4.​ Flow chart of Purlin Roll Forming Machine

Decoiling – Feeding - Flattening — Lip forming - Flange forming - Angle forming – Straightening - Punching - Cutting – Stacking

20000kg 300mm C Channel Roll Forming Machine Metal Roof Tile Making With Touch Screen

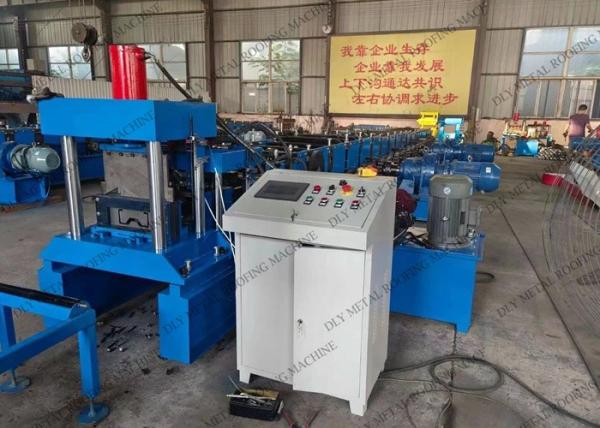

5. Detail photos of ​C U Z Purlin Roll Forming Machine

20000kg 300mm C Channel Roll Forming Machine Metal Roof Tile Making With Touch Screen

20000kg 300mm C Channel Roll Forming Machine Metal Roof Tile Making With Touch Screen20000kg 300mm C Channel Roll Forming Machine Metal Roof Tile Making With Touch Screen20000kg 300mm C Channel Roll Forming Machine Metal Roof Tile Making With Touch Screen
