Tr37 Trapezoidal Roofing Forming Machine 380v Steel Stud Roll Forming Machine
Tr37 Trapezoidal Roofing Forming Machine 380v Steel Stud Roll Forming Machine
Specifications
Brand Name :
DLY
Model Number :
paneling machine
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
40 days
Packaging Details :
naked or wooden
name :
Roofing Forming Machine
Weight :
around 5.5T
Voltage :
380V Or As Customize
Tile type :
roll forming machine/building material machinery
Use :
roof /wall tile
Control system :
PLC,Totally Automatic
Warranty :
12months
Cutting blade material :
cr12 with quenched treatment
Description

TR37 Trapezoidal Roofing Forming Machine 380V Steel Stud Roll Forming Machine

1. Description of Roofing Forming Machine

Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.

2. Specifications of Roofing Forming Machine

The total length of the equipment Length 6200mm width 1300mm height 1200mm
Equipment weight 3 tons
The motor power Motor 4Kw pump station 4Kw working voltage 380V or customized
Production speed 10--18 m/min
The transmission way 1 inch chain drive
rack Large frame: 400H section steel
The thickness of the plate 20 mm
Set of Galvanized pipe finishing, electrostatic spraying
Wheel material 45# steel hard chrome plating
The molding part Divided into precision wheel rotation forming, forming effect is good, reduce the friction between wheels and raw materials, debugging convenient, fast.
Numerical control system Easy control king, letter letter press button screen, counter,
shear Iron plate welding frame, hydraulic cylinder automatic shear, hydraulic cylinder automatic pressure
In the thickness of the plate 0.3 mm - 0.8 mm
Into the plate width 1250 mm
accessories Two sets of feeding rack, vulnerable parts
Warranty period 12 months

3. Feathers of Roofing Forming Machine
  • We Will use the rubber roller at leveling part to protect the coil surface.
  • We will add two more gears for feeding coil smoothly.
  • For the roller, we will do the chroming for long time use and beautiful.
  • For cutting, we use 4 pillar post cutting system to make sure the cutter can use long time.
  • Use special special design of cutting system for cutting fast and the cutter can use long time.
  • Good quality hydraulic jacks.
  • Use strong thickness frame and holder.
  • We will give remoter for control machine easily.

4. Production Flow of Roofing Forming Machine

Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products

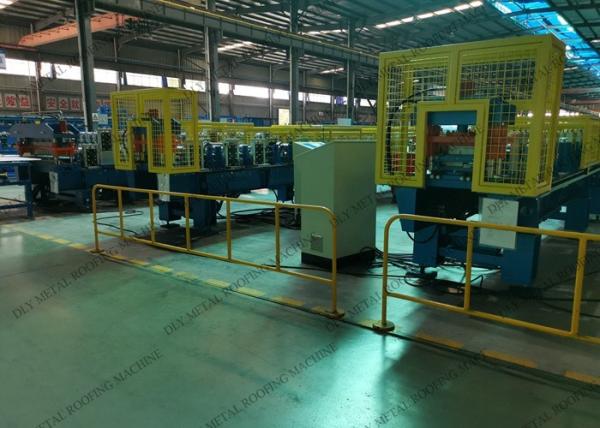

Tr37 Trapezoidal Roofing Forming Machine 380v Steel Stud Roll Forming Machine

5. Details of Our Roofing Forming Machine

Tr37 Trapezoidal Roofing Forming Machine 380v Steel Stud Roll Forming MachineTr37 Trapezoidal Roofing Forming Machine 380v Steel Stud Roll Forming MachineTr37 Trapezoidal Roofing Forming Machine 380v Steel Stud Roll Forming MachineTr37 Trapezoidal Roofing Forming Machine 380v Steel Stud Roll Forming Machine
