Tr40 Cr12 Chain Drive Corrugated Iron Rolling Machine Trapezoidal Ibr Metal Roll Former
Tr40 Cr12 Chain Drive Corrugated Iron Rolling Machine Trapezoidal Ibr Metal Roll Former
Tr40 Cr12 Chain Drive Corrugated Iron Rolling Machine Trapezoidal Ibr Metal Roll Former
Tr40 Cr12 Chain Drive Corrugated Iron Rolling Machine Trapezoidal Ibr Metal Roll Former
Specifications
Brand Name :
DLY
Model Number :
paneling machine
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
40 days
Packaging Details :
naked or wooden
name :
Roofing Forming Machine
Weight :
around 6.5T
Roller material :
hard chromed,Cr12
Warranty :
1 year
Voltage :
380V 50Hz 3phases,50HZ
After-sales service provided :
Online support,Field maintenance and repair service
Color :
Customized
Product name :
Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine
Description

TR40 Cr12 Corrugated Iron Rolling Machine Trapezoidal Ibr Metal Roll Former

1. Description of Roofing Forming Machine

Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.

2. Specifications of Roofing Forming Machine

1

Power Requirement

 Voltage (380V 50HZ),or according client require
Main Motor power 5.5kw
Cutter power 5.5kw
2 Forming speed 0-15m/min
3 Forming stations 11/12 rows
4 Main Frame 300H beam
5 Sidewall thickness 14mm
6 Forming shaft diameter 70mm 0.01mm-0.03mm(Grinding)
7 Chains 1inch chain drive
8 Type of cutting Roll formed and length-set cutting
9 Control system PLC control
10 Install dimension(depend on the final design) 6.3m×1.3m×1.2m
11 Total weight (Approx) 5T
12 Roller High grade 45# steel, hard chrome plated
13 Feeding system Guide type
14 Cutting blade Cr12Mov
15 Frequency changer Delta


3. Feathers of Roofing Forming Machine

  • We Will use the rubber roller at leveling part to protect the coil surface.
  • We will add two more gears for feeding coil smoothly.
  • For the roller, we will do the chroming for long time use and beautiful.
  • For cutting, we use 4 pillar post cutting system to make sure the cutter can use long time.
  • Use special special design of cutting system for cutting fast and the cutter can use long time.
  • Good quality hydraulic jacks.
  • Use strong thickness frame and holder.
  • We will give remoter for control machine easily.

4. Production Flow of Roofing Forming Machine

Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products

Tr40 Cr12 Chain Drive Corrugated Iron Rolling Machine Trapezoidal Ibr Metal Roll Former

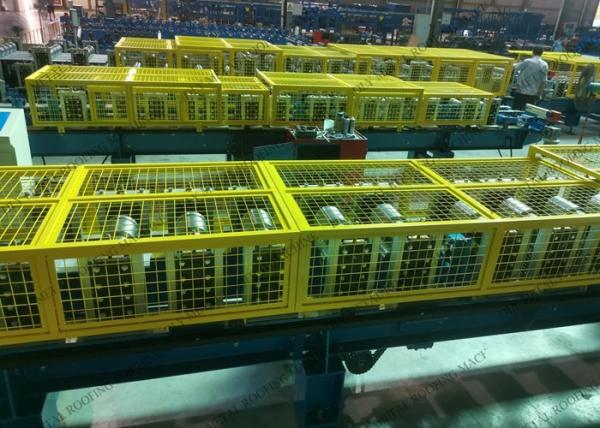

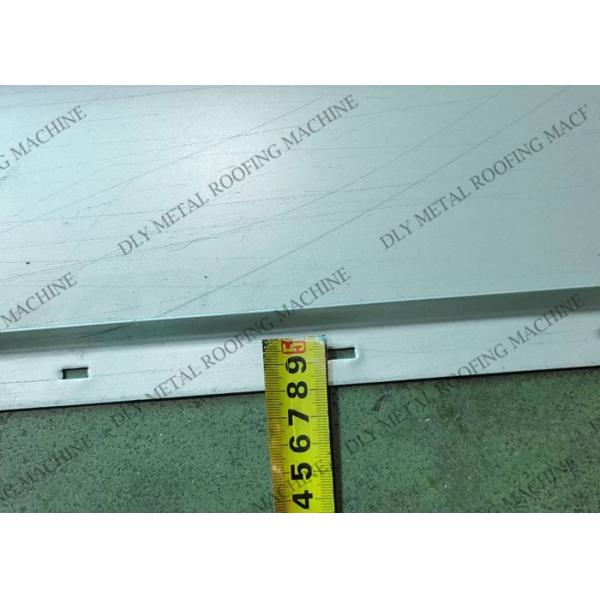

5. Details of Our Roofing Forming Machine

Tr40 Cr12 Chain Drive Corrugated Iron Rolling Machine Trapezoidal Ibr Metal Roll FormerTr40 Cr12 Chain Drive Corrugated Iron Rolling Machine Trapezoidal Ibr Metal Roll FormerTr40 Cr12 Chain Drive Corrugated Iron Rolling Machine Trapezoidal Ibr Metal Roll FormerTr40 Cr12 Chain Drive Corrugated Iron Rolling Machine Trapezoidal Ibr Metal Roll Former
