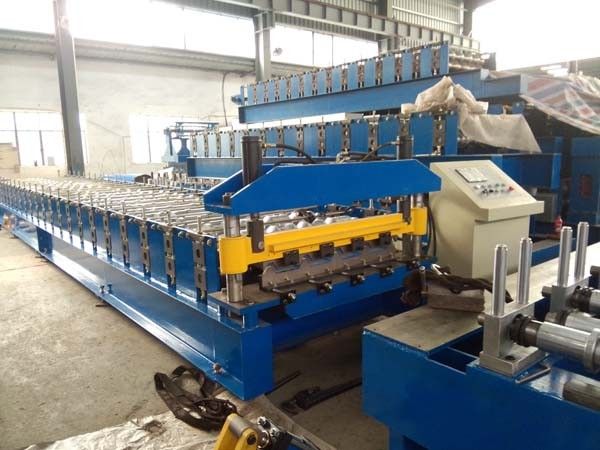

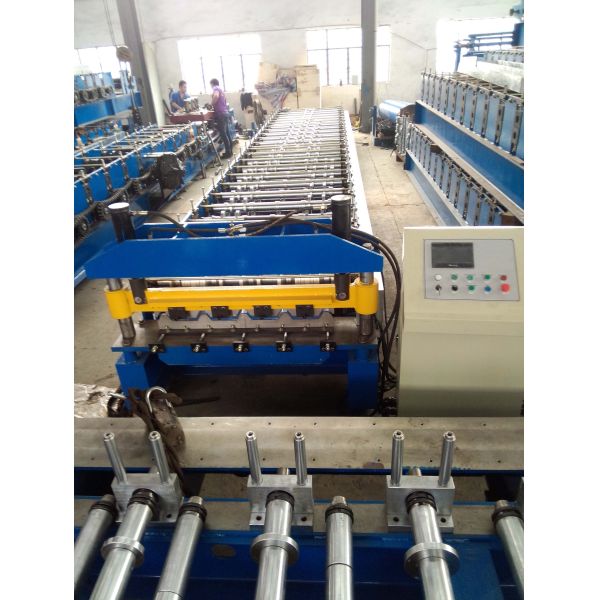

Individual IBR Roof Panel Roll Forming Machine 0.3-0.7mm Thickness
Individual IBR Roof Panel Roll Forming Machine 0.3-0.7mm Thickness
Individual IBR Roof Panel Roll Forming Machine 0.3-0.7mm Thickness
Individual IBR Roof Panel Roll Forming Machine 0.3-0.7mm Thickness
Specifications
Brand Name :
bluesteel
Model Number :
bl
Certification :
ce
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T or L/C
Supply Ability :
50sets /month
Delivery Time :
45days
Packaging Details :
spare partsin wooden box,other plastic film cover
thickness range :
0.3-0.7mm
material stress :
235MPa 345MPa and 550MPa.
roller material :
No.45steel
system :
PLC control automatic system
Description

Individual Steel Struction Use Roof Panel Roller Former IBR Roof Panel Roll Forming Machine For Sale

Usage Of Roof Panel :

The roofing panel machines can produce various of steel roof and wall panel, it is a new building materials,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium,exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short buildi-ng period , beauty, light weight but high strength.

Feature Of Our Machines:

1.Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material

plate.

2. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,

maintenance-free

3. We can make and design will kinds of roll forming machine according to customer's request.

roll forming machine main parameter table.

Suitable material

color steel sheet;0.3-0.7mm,

Working speed

about10-25m/min

stress

235MPa,345MPa,550MPa.

Power

Main motor power: 5.5 Kw(Depend on final design)

Hydraulic station power: 4Kw(Depend on final design)

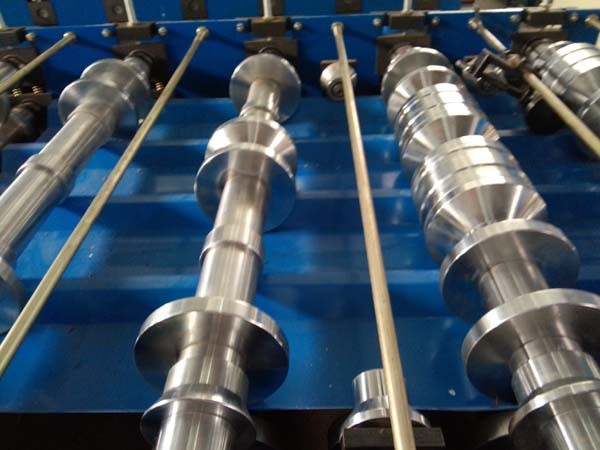

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter,pressing die

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, Roller grinder milling.

Shaft diameter

72mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 9500KGS

Machine’s size

about 18m×1.8m× 1.5m (Depend on final design)

producing process:

Individual IBR Roof Panel Roll Forming Machine 0.3-0.7mm Thickness

Individual IBR Roof Panel Roll Forming Machine 0.3-0.7mm Thickness

Individual IBR Roof Panel Roll Forming Machine 0.3-0.7mm Thickness

Product:

Individual IBR Roof Panel Roll Forming Machine 0.3-0.7mm Thickness

We can also customize the products according to customer ' s requirements

Application:

Individual IBR Roof Panel Roll Forming Machine 0.3-0.7mm ThicknessIndividual IBR Roof Panel Roll Forming Machine 0.3-0.7mm Thickness

Packaging Detail of steel sheet roll forming machine :

1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
