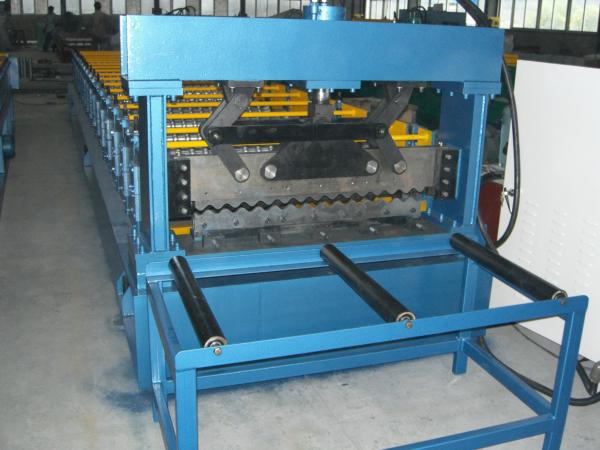

988 Type High Speed Corrugated Roll Forming Machine With Remote Control
988 Type High Speed Corrugated Roll Forming Machine With Remote Control
988 Type High Speed Corrugated Roll Forming Machine With Remote Control
988 Type High Speed Corrugated Roll Forming Machine With Remote Control
988 Type High Speed Corrugated Roll Forming Machine With Remote Control
988 Type High Speed Corrugated Roll Forming Machine With Remote Control
988 Type High Speed Corrugated Roll Forming Machine With Remote Control
988 Type High Speed Corrugated Roll Forming Machine With Remote Control
988 Type High Speed Corrugated Roll Forming Machine With Remote Control
988 Type High Speed Corrugated Roll Forming Machine With Remote Control
988 Type High Speed Corrugated Roll Forming Machine With Remote Control
988 Type High Speed Corrugated Roll Forming Machine With Remote Control
988 Type High Speed Corrugated Roll Forming Machine With Remote Control
988 Type High Speed Corrugated Roll Forming Machine With Remote Control
Specifications
Brand Name :
bluesteel
Model Number :
bl
Certification :
ce
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T or L/C
Supply Ability :
50sets /month
Delivery Time :
45days
Packaging Details :
spare partsin wooden box,other plastic film cover
thickness range :
0.3-0.7mm
material stress :
235MPa 345MPa and 550MPa.
roller material :
No.45steel
system :
PLC control automatic system
weight :
about 6000~8000Kgs
Description

988 Type Roof Sheet Roll Forming Machine / Corrugated Roller Forming Machine

Specification

The corrugated roll forming machine can produce corrugated sheets with any kinds of thickness. The

products of the corrugated roll forming maichine are widely used as roofing and wall sheets for factories,

warehouses, garages, exhibition centers, cinemas, gardens, etc.

Technical data of metal roof tile roll forming machine

Suitable material

color steel sheet;0.3-0.7mm,

Working speed

about1.5-5m/min

stress

 235MPa,345MPa,550MPa.

Power

Main motor power: 5.5 Kw(Depend on final design)

Hydraulic station power: 4Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter,pressing die

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, Roller grinder milling.

Shaft diameter

72mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 9500KGS

Machine’s size

about 18m×1.8m× 1.5m (Depend on final design)

Layout drawing of machine

988 Type High Speed Corrugated Roll Forming Machine With Remote Control

Our Roll Forming Machine’s advantages

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong

2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.

3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.

5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.

6. powerful driving system: big inch train,or gear box driving system.

6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

producing process:

988 Type High Speed Corrugated Roll Forming Machine With Remote Control

988 Type High Speed Corrugated Roll Forming Machine With Remote Control

988 Type High Speed Corrugated Roll Forming Machine With Remote Control

Product:

988 Type High Speed Corrugated Roll Forming Machine With Remote Control

Application

988 Type High Speed Corrugated Roll Forming Machine With Remote Control

We can also customize the products according to customer ' s requirements

988 Type High Speed Corrugated Roll Forming Machine With Remote Control

988 Type High Speed Corrugated Roll Forming Machine With Remote Control988 Type High Speed Corrugated Roll Forming Machine With Remote Control

988 Type High Speed Corrugated Roll Forming Machine With Remote Control

Feature Of Our Machines:

1.Our machines can uses galvanized steel sheet, colored armor plate or

aluminum plate as the material plate.

2. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,

maintenance-free

3. We can make and design will kinds of roll forming machine according to customer's request.
