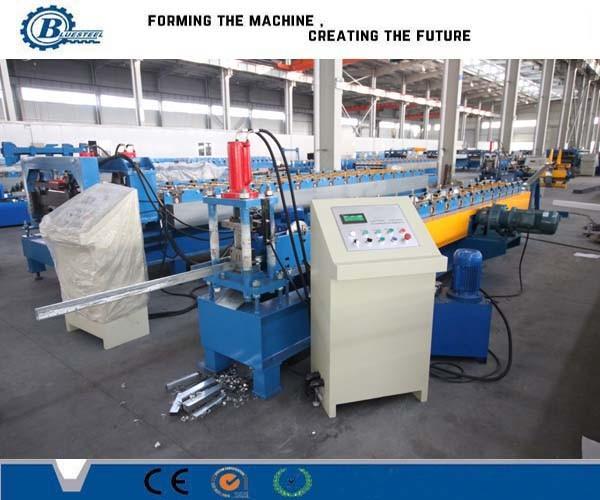

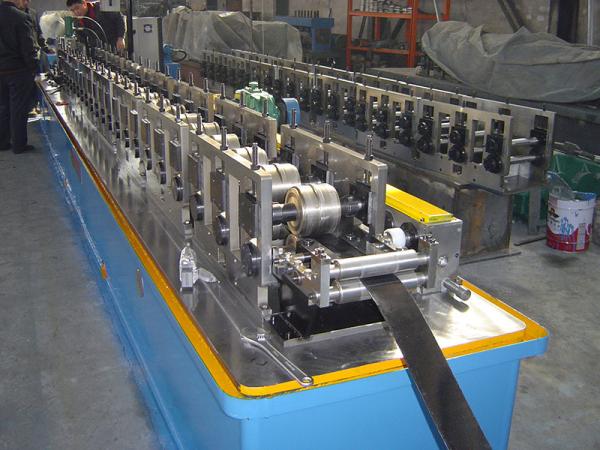

Aluminum Color Steel Sheet Roller Shutter Door Machine 8-25m/min For Garage
Aluminum Color Steel Sheet Roller Shutter Door Machine 8-25m/min For Garage
Aluminum Color Steel Sheet Roller Shutter Door Machine 8-25m/min For Garage
Aluminum Color Steel Sheet Roller Shutter Door Machine 8-25m/min For Garage
Specifications
Brand Name :
bluesteel
Model Number :
bl
Certification :
ce
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T or L/C
Supply Ability :
50sets /month
Delivery Time :
45days
Packaging Details :
spare parts in wooden box,other plastic film cover
thickness range :
0.3-0.7mm
material stress :
235MPa 345MPa and 550MPa.
roller material :
No.45steel
system :
PLC control automatic system
Description

Aluminum Color Steel Sheet Roller Shutter Door Roll Forming Machine 8-25m/min

lower cost

high efficiency

reliable working

low energy consumption

Technical data of roller shutter door roll forming machine

Suitable material

color steel sheet;0.7-1.0mm,1.5mm, 2mm

Working speed

about8-25m/min

stress

 235MPa,345MPa,550MPa.

Power

Main motor power: 12 Kw(Depend on final design)

Hydraulic station power: 3Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter,pressing die

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, Roller grinder milling.

Shaft diameter

72mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 9500KGS

Machine’s size

about 18m×1.8m× 1.5m (Depend on final design)

Layout drawing of machine

Aluminum Color Steel Sheet Roller Shutter Door Machine 8-25m/min For Garage

producing process:

Aluminum Color Steel Sheet Roller Shutter Door Machine 8-25m/min For Garage

Product:

Aluminum Color Steel Sheet Roller Shutter Door Machine 8-25m/min For Garage

We can also customize the products according to customer ' s requirements

Our Roll Forming Machine’s advantages

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong

2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.

3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.

5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.

6. powerful driving system: big inch train,or gear box driving system.

6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
