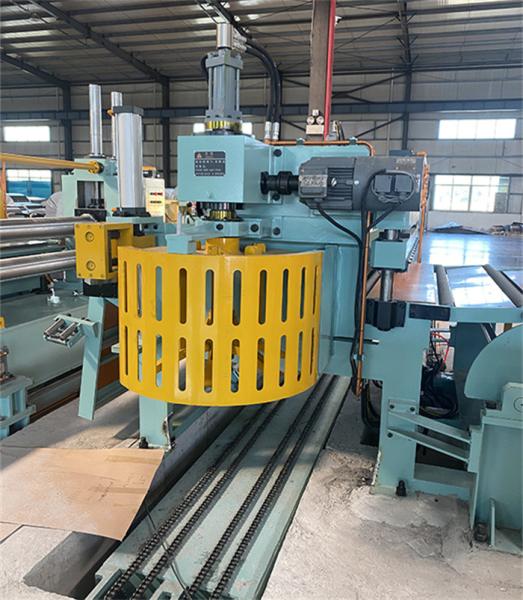

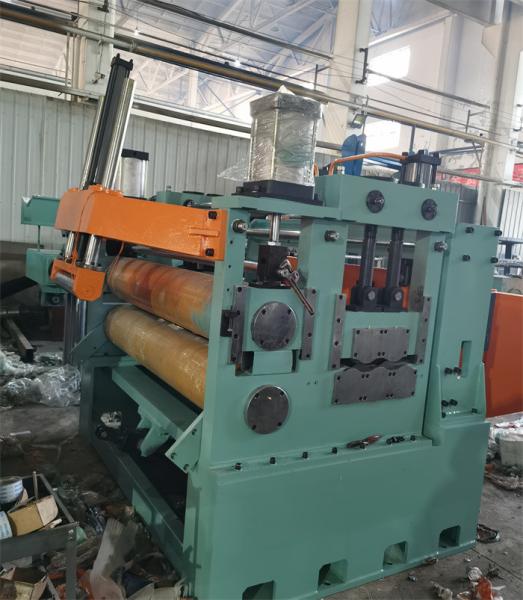

Big Aluminum Coil Plate High Precision Aluminum Slitting Line Machine

Aluminum sheet is softer in body and smooth in surface, some aluminum sheet is hard and high tensile, so aluminum Coil sheet slitting must be:
1. high precision, machinining precision must be high, rollers surface is hard chrome coated or PU rubber coated,
2. each machine must cater to specific aluminum coil materials, harder or softer, the machine must consider each technical details in production process.
3. Machine power match with line speed, number of slitting, slitting precision.
4. the slitting tools for aluminum sheet is unique, slitting speed is high when aluminum sheet gauge is small.
aluminum sheets can be pure aluminum or aluminum alloy, most frequently 1xxx, 3xxx, 5xxx, 7xxx series aluminum sheets.
Aluminium sheet coils can be very big: coil width up to 2500mm, coil outer diameter up to 2600mm, weight up to 20-30T, the big aluminum coil slitting line has big capacity uncoiler and recoiler, cooperative with the middle precise slitting machine, the special point needs good technical design and control to give stable slitting process.

Features of aluminum sheet:

1. it has good plasticity, easy to be processed
2. aluminum sheet is light, its density is 2.7g/cm3, about one third of steel sheet
3. The strength of aluminum sheet can be improved by cold rolling and annealing.
4. Aluminum sheet has solid Al2O3 protection surface, is anti- corrosion.
5. Aluminum sheet is softer in body and smooth in surface, must be well processed.

Composition and Parameters:

General Parameters:
1)Material:(AA3105,1100,8011)Aluminum coils
2)Coil thickness:0.3–3.5mm
coil width: 800–2200 mm
3)Coil inner diameter: Φ508 mm
4)Coil outer diameter:Φ2600 mm
5)Coil weight:30000kg max
6)Finished products width:20-500mm
7)Minimum slitting width:normal slit width above 30mm.
8)Slitting speed:Max 120m/min
9)Number of strips:max15 strips in thickness 3mm,
max 30strips in 0.3mm to 1.0mm,
max 20strips in the rest of the thickness,
10).Area occupied:10m X 30m
11) slitting motor: 132KW AC,
uncoiling motor: 30KW AC
leveling motor: 37KW AC
Recoiling motor: 160KW
