Straight Seam Welding Galvalized Steel Black Steel Tube Mill Line HG 60
Straight Seam Welding Galvalized Steel Black Steel Tube Mill Line HG 60
Straight Seam Welding Galvalized Steel Black Steel Tube Mill Line HG 60
Straight Seam Welding Galvalized Steel Black Steel Tube Mill Line HG 60
Specifications
Brand Name :
Jinye
Model Number :
Galvanized HG60
Place of Origin :
Wuxi, China
MOQ :
1Set
Payment Terms :
T/T
Delivery Time :
120-150Days
Packaging Details :
3 x 40HC
Name :
Straight Seam Welding Steel Tube Mill Line
Input :
black steel, galvanized steel coil
Output :
Φ20~Φ63.5 x 3mm pipes
Producing speed :
30- 80m/min
Land area :
60m x 6m
HF welder :
Solid state 250KW
Cutting :
Computer Fly saw
Tooling :
Cr12 rollers
Forming technology :
7 + 5 horizontal rolls
Roller shaft :
Horizontal 65mm
Description

Straight Seam Welding Galvalized Steel Black Steel Tube Mill Line ( HG 60 )

Configuration of pipe mill line

  • 1.Pipe forming and sizing by DC motor controlled by Parker DC driver
  • 2.High frequency welding equipment: Baoding Redstar
  • 3.Flying saw: hot friction or cold cutting
  • 4. Horizontal Spiral accumulator and its operator panel
  • 5. Rollers are Cr12 (D3) HRC 60 ± 2

Sepcification of HG 60 Pipe Production Line:

Raw material
low carbon steel, low alloy steel, HR or CR.
Tensile strength: σb≤600Mpa
Yield point: σs≤315MPa
0.8 - 3.0 x φ 20 - 63.5mm, ID508mm OD1600mm, 3.5T
Finished Pipes

Round pipe size: Φ20mm ~ Φ63.5mm * 0.8 mm~ 3.0mm.
Square, rectangular pipe size:

15×15mm~50×50mm * 0.8mm~3.0mm(a:b≤2:1)
Producing length: 4~10m (can be designed by customer request)
Cutting length precision: ±3mm (by hot friction computer saw)
Machine Parameters
Double heads Decoiler, double heads hydraulic expansion, air brake
Shear & butt welding device, automatic 16-200A
Horizontal spiral accumulator, Φ4.5m, 150m/min feeding

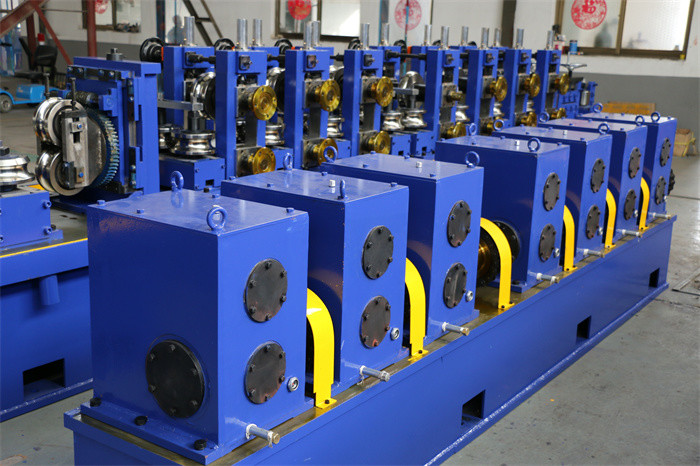

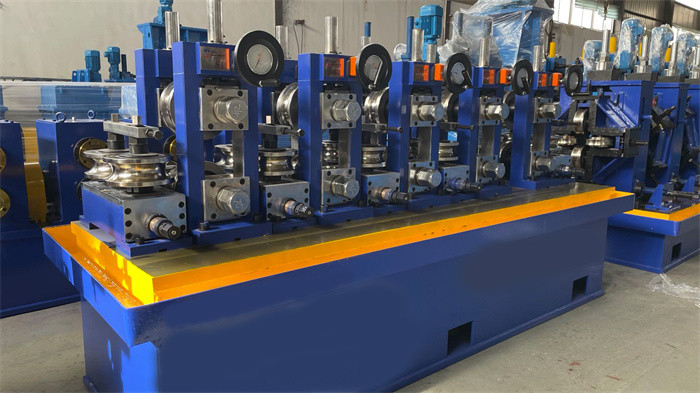

Forming & Sizing unit, 160KW DC, 8+5 horizontal rollers, 9+5 vertical rolls
Hot friction flying saw,Φ500×70×3.0 saw blade, 30KW
Run out table (double sides discharging),2.2KW
250KW High frequency welder, 1 set
Rollers,according to customers pipe sizes
Total installation power: 450KW
Line speed: 30-80m/min


ERW Pipe Machines Specification:

Model Pipe size HF welder (KW) Motor power(KW) Speed (m/min)
Фmm x mm
HG16 Ф(7-20) x (0.2-0.5) 60 22 80-140
HG25 Ф(8-32)x(0.35-1.3) 100 45 70-130
HG32 Ф(15-50) x (0.6-2.0) 150 110 60-120
HG50 Ф(20-63)x(0.8-2.5) 200 160 50-100
HG63 Ф(20-76)x(0.8-3.0) 250 200 30-90
HG76 Ф(25-80) x (1.2-4.0) 300 110x2 30-80
HG89 Ф(32-102)x(1.5-4.5) 300 132 x 2 30-80
HG114 Ф(38-127) x (1.5-4.5) 300 160 x 2 30-70
HG125 Ф(50-165)x(2.0-5.0) 400 185x2 20-60
HG165 Ф(76-165)x(2.0-6.0) 600 200x2 15-50

Straight Seam Welding Galvalized Steel Black Steel Tube Mill Line HG 60

Straight Seam Welding Galvalized Steel Black Steel Tube Mill Line HG 60
