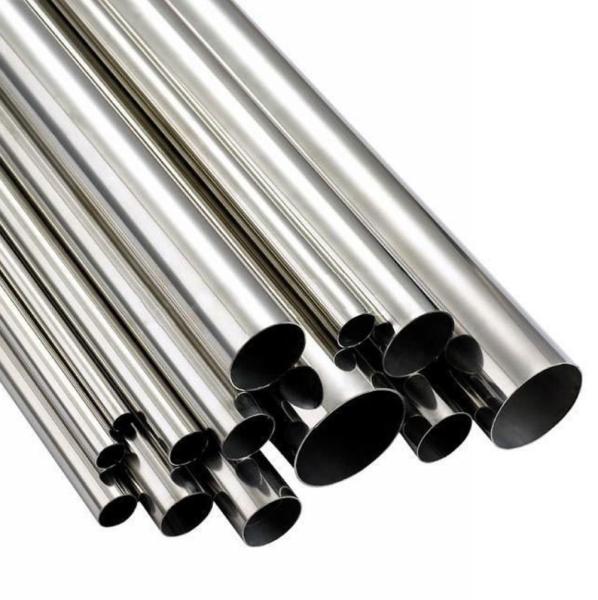

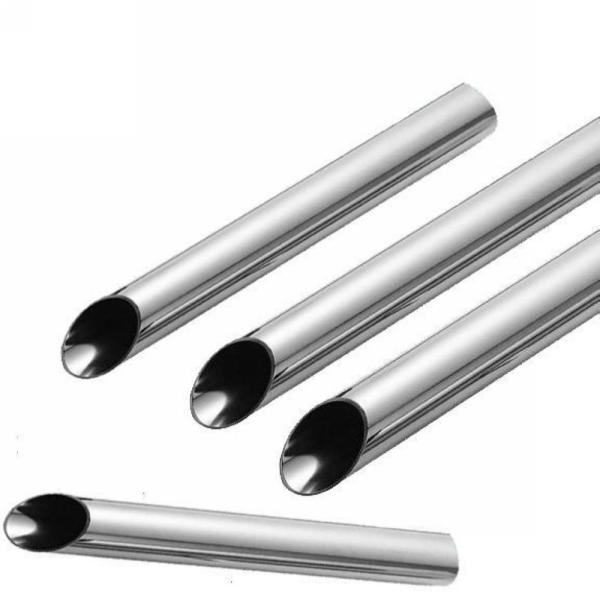

304 316 Mirror Polished Stainless Steel Metal Tube Food Grade 38mm
304 316 Mirror Polished Stainless Steel Metal Tube Food Grade 38mm
304 316 Mirror Polished Stainless Steel Metal Tube Food Grade 38mm
304 316 Mirror Polished Stainless Steel Metal Tube Food Grade 38mm
Specifications
Brand Name :
ShengQuan
Model Number :
201/304/304L/316/316L/321/309/310/32750/32760/904
Certification :
ISO9001:2000
Place of Origin :
china
MOQ :
1ton
Price :
USD1500-USD6000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15000Tons
Delivery Time :
5-15days
Packaging Details :
Standard Export Sea-Worthy Packing
Application :
Construction,Kitchenware,Decoration,chemical,Industry
Width :
or as required
Type :
Plate,Coil,stainless steel sheet
Standard :
ASTM,JIS,AISI,EN,GB
Length :
Customer's Request
Grade :
201/202/304 /304L/316/316L321/310s/410/420/430/440/439ect
Product name :
ASTM JIS SUS 201 202 301 304 304l 316 316l 310Stainless Steel Sheet
Thickness :
0.3mm-120mm,0.18-1.5mm,0.2-60mm,0.45-5mm,0.01-200mm
Description

316LN X2CrNiMoN17-11-2 1.4406 Seamless Stainless Steel Tubing 3.5 Inch 4 Inch 5 Inch​

Manufacturing of Stainless Steel Tubing

The different techniques of stainless steel tubing include:

Tube Mill Process

This process has operations such as:

Rolling and Welding

With rolling and welding, stainless steel coils are continuously roll formed on a tube mill. The strip edges are welded together using welding techniques such as TIG, high frequency, and laser. Depending on the welding method, the strip edges may have to be prepared to yield a high quality weld. As part of the finishing process, weld beads on the ID and OD of the tube are removed with scarfing, sanding, bead rolling or other means depending on the final application and specification of how the tube is to be made.

Chemical Properties of Frequently-used Stainless Steel Material Grade
UNS ASTM EN JIS C% Mn% P% S% Si% Cr% Ni% Mo%
S20100 201 1.4372 SUS201 ≤0.15 5.5-7.5 ≤0.06 ≤0.03 ≤1.00 16.0-18.0 3.5-5.5 -
S20200 202 1.4373 SUS202 ≤0.15 7.5-10.0 ≤0.06 ≤0.03 ≤1.00 17.0-19.0 4.0-6.0 -
S30100 301 1.4319 SUS301 ≤0.15 ≤2.00 ≤0.045 ≤0.03 ≤1.00 16.0-18.0 6.0-8.0 -
S30400 304 1.4301 SUS304 ≤0.08 ≤2.00 ≤0.045 ≤0.03 ≤0.75 18.0-20.0 8.0-10.5 -
S30403 304L 1.4306 SUS304L ≤0.03 ≤2.00 ≤0.045 ≤0.03 ≤0.75 18.0-20.0 8.0-12.0 -
S30908 309S 1.4833 SUS309S ≤0.08 ≤2.00 ≤0.045 ≤0.03 ≤0.75 22.0-24.0 12.0-15.0 -
S31008 310S 1.4845 SUS310S ≤0.08 ≤2.00 ≤0.045 ≤0.03 ≤1.50 24.0-26.0 19.0-22.0 -
S31600 316 1.4401 SUS316 ≤0.08 ≤2.00 ≤0.045 ≤0.03 ≤0.75 16.0-18.0 10.0-14.0 2.0-3.0
S31603 316L 1.4404 SUS316L ≤0.03 ≤2.00 ≤0.045 ≤0.03 ≤0.75 16.0-18.0 10.0-14.0 2.0-3.0
S31703 317L 1.4438 SUS317L ≤0.03 ≤2.00 ≤0.045 ≤0.03 ≤0.75 18.0-20.0 11.0-15.0 3.0-4.0
S32100 321 1.4541 SUS321 ≤0.08 ≤2.00 ≤0.045 ≤0.03 ≤0.75 17.0-19.0 9.0-12.0 -
S34700 347 1.4550 SUS347 ≤0.08 ≤2.00 ≤0.045 ≤0.03 ≤0.75 17.0-19.0 9.0-13.0 -
S40500 405 1.4002 SUS405 ≤0.08 ≤1.00 ≤0.04 ≤0.03 ≤1.00 11.5-14.5 ≤0.60 -
S40900 409 1.4512 SUS409 ≤0.08 ≤1.00 ≤0.045 ≤0.03 ≤1.00 10.5-11.75 ≤0.50 -
S43000 430 1.4016 SUS430 ≤0.12 ≤1.00 ≤0.040 ≤0.03 ≤0.75 16.0-18.0 ≤0.60 -
S43400 434 1.4113 SUS434 ≤0.12 ≤1.00 ≤0.040 ≤0.03 ≤1.00 16.0-18.0 - -
S44400 444 1.4521 SUS444L ≤0.025 ≤1.00 ≤0.045 ≤0.03 ≤1.00 17.5-19.5 ≤1.00 -
S40300 403 - SUS403 ≤0.15 5.5-7.5 ≤0.04 ≤0.03 ≤0.50 11.5-13.0 ≤0.60 -
S410000 410 1.40006 SUS410 ≤0.15 ≤1.00 ≤0.035 ≤0.03 ≤1.00 11.5-13.5 ≤0.60 ≤1.00
S42000 420 1.4021 SUS420J1 0.16~0.25 ≤1.00 ≤0.04 ≤0.03 ≤1.00 12.0-14.0 ≤0.75 ≤1.00
S440A 440A 1.4028 SUS440A 0.60~0.75 ≤1.00 ≤0.04 ≤0.03 ≤1.00 16.0-18.0 - ≤0.75
S32750 SAD2507 1.4410 ≤0.03 ≤1.2 ≤0.035 ≤0.02 ≤0.80 24.0-26.0 6.0-8.0 3.0-5.0
S31803 SAF2205 1.4462 ≤0.03 ≤2.0 ≤0.03 ≤0.02 ≤1.00 21.0-23.0 4.0-6.5 2.5-3.5
N08904 904L 1.4539 ≤0.0.3 ≤2.0 ≤0.035 ≤0.03 ≤1.00 18.0-20.0 23.0-25.0 3.0-4.0

Packing & Delivery
1. Who are we?
We are based in wuxi, China, start from 2021,sell to Mid East(35.00%),South America(20.00%),Southeast Asia(20.00%),Africa(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
steel sheet coil,ppgi ppgl,galvanized steel coil,aluminum steel coil sheet,stainless steel
4. Why should you buy from us not from other suppliers?
Integrating the superior resources of China's steel industry, we provide customers with high-quality steel products at preferential prices, and can ensure that the goods are delivered to customers in a timely manner.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Weste
