Stainless Steel Wire is composed of a metal alloy that contains chromium, nickel, and other elements. It is highly resistant to corrosion and heat, with excellent mechanical properties. It is widely used in a variety of applications, such as fishing wire, spring, screw, manufacturing, and weaving. Our stainless steel wire is available in various lengths and sizes, and can be customized according to customer requirements. The standard specifications we offer include GB, DIN, ASTM, AISI, and JIS. We also offer a variety of finishes, including black matt and bright. Our 316 SS wire is ideal for marine environments due to its superior resistance to corrosion and heat.
Property | Value |
---|---|
Material | 1MM Stainless Steel Wire, 316 SS Wire, 316 SS Wire, AISI 316 Wire |
Length | No Limited,or As Per Requested |
Shape | Wire |
Finish | Black Matt,bright |
Application | Spring, Screw, Manufacturing, Weaving |
Heat Resistance | Excellent |
Corrosion Resistance | Excellent |
Flexibility | Excellent |
Durability | Excellent |
Standard | GB,DIN,ASTM,AISI,JIS |
We provide custom Stainless Steel Wire services with the following properties:
We offer technical support and service for Stainless Steel Wire. Our experienced team of professionals can provide you with the necessary advice and guidance throughout the entire process. We will assist you in selecting the right type of steel wire for your application, help with installation, and provide ongoing maintenance and repair services. We are also available to answer any questions you may have about our products.

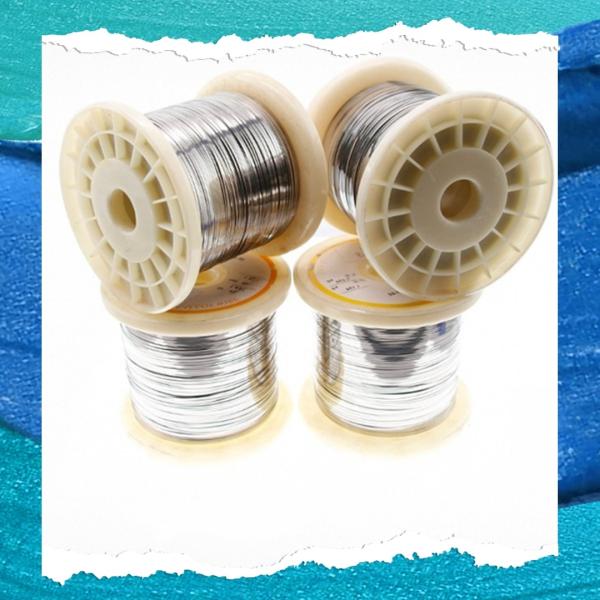

Stainless steel wire is usually packaged in spools, coils, or straightened lengths. The spooled wire is wound on cardboard or plastic spools and sealed in plastic or shrink wrap. The coiled wire is packed in a cardboard, wooden, or plastic box and sealed with tape. Straightened lengths are usually placed in cardboard boxes and sealed with tape.
The packaging of stainless steel wire is designed to protect the wire from damage during shipping and storage. The packaging should also ensure that the wire is adequately protected from the elements.
Shipping of stainless steel wire is typically done via truck, rail, or air. The wire is loaded in boxes or on pallets to ensure safe transport. The shipping company should be informed of any special requirements for the handling of the wire.
Soft Annealed Stainless Steel Wire:
mm Dia. | N/mm2 T/S | EL % |
0.05-0.10 | 650-900 | >15 |
0.10-030 | 640-880 | >20 |
0.30-0.60 | 590-860 | >30 |
0.60-1.60 | 540-820 | >30 |
1.60-5.00 | 520-770 | >30 |
Hardness Stainless Steel Wire:
1/4H stainless steel wire | ||
Type | Dia. MM | T/S N/MM2 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 0.05-1.60 | 830 -1180 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 1.60-3.00 | 780 -1130 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 3.00-6.00 | 730 -1080 |
1/2H stainless steel wire | ||
Type | Dia. MM | T/S N/MM2 |
Sus304/sus304H/sus316L/sus201/430 | 0.05-1.60 | 1130 -1470 |
Sus304/sus304H/sus316L/sus201/430 | 1.60-3.00 | 1080 -1420 |
Sus304/sus304H/sus316L/sus201/430 | 3.00-6.00 | 1080 -1420 |
3/4H full hardness stainless steel wire | ||
mm Dia. | (N/mm2)T/S | |
WPA3/4 | WPB | |
0.08-0.20 | 1650-1900 | 2150-2400 |
0.23-0.40 | 1600-1850 | 1950-2300 |
0.45-1.00 | 1530-1780 | 1850-2100 |
1.20-2.00 | 1400-1700 | 1650-2000 |
2.30-4.00 | 1230-1570 | 1450-1800 |
No. | Spool Model | Outer Diameter (d1) | Trunk Diameter(d2) | Inner Diameter(d3) | Inner Height(L2) | Total height (L1) | Weight of Spool | Rated load weight |
1 | DIN 125 | 125mm | 65mm | 20-25mm | 100mm | 120mm | 0.18kg | 2-3kg |
2 | DIN 160 | 160mm | 99.3mm | 22.03mm | 129mm | 160mm | 0.3kg | 5-7kg |
3 | DIN 200 | 200mm | 125.31mm | 23.06mm | 160mm | 200mm | 0.62-0.66kg | 10-15kg |
4 | DIN 250 | 250mm | 160mm | 20.73mm | 160mm | 200mm | 1kg | 20-25kg |
5 | NS-4 | 118.83mm | 75.4mm | 21.27mm | 129.33mm | 148.14mm | 2-3kg |
