0Cr23Al5 Resistance Heating Wire 0.05mm-10mm For Heater Resistor Furnaces
0Cr23Al5 Resistance Heating Wire 0.05mm-10mm For Heater Resistor Furnaces
0Cr23Al5 Resistance Heating Wire 0.05mm-10mm For Heater Resistor Furnaces
0Cr23Al5 Resistance Heating Wire 0.05mm-10mm For Heater Resistor Furnaces
Specifications
Brand Name :
OEM
Model Number :
1Cr13Al4, 0Cr21Al6, 0Cr25Al5, 0Cr23Al5
Place of Origin :
China
MOQ :
100 KG
Price :
USD 5-20 / KG
Payment Terms :
L/C, T/T
Supply Ability :
25000MT PER YEAR
Delivery Time :
15-30 WORKING DAYS

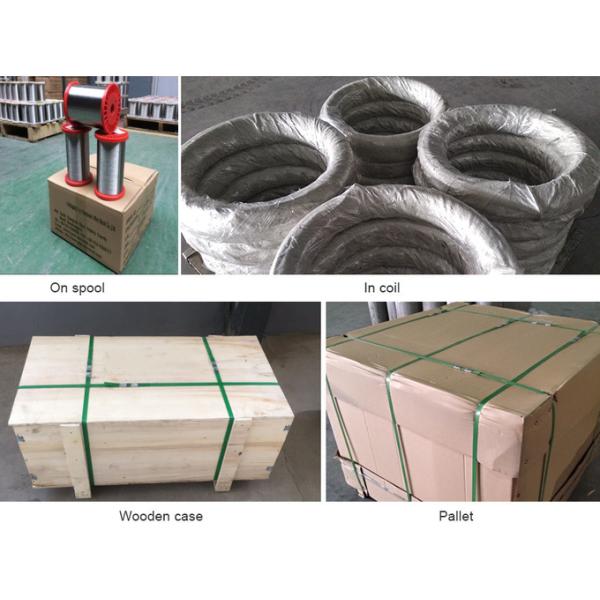

Packaging Details :
STANDARD EXPORT PACKAGE
Product name :
0Cr23Al5 Electrical Resistance Wire For Heater Resistor Furnaces
Type :
0Cr23Al5
Round Wire :
0.05mm-10mm
Ribbon Thickness :
0.1mm -1.0mm
Ribbon Width :
0.5mm - 5.0mm
Carbon Content :
Low Carbon
Condition :
Bright, Annealed
Special Use :
Furnace, Heater, Heating Elements
Description

0Cr23Al5 Electrical Resistance Wire For Heater Resistor Furnaces

What metal is a heating element made of?

Heating elements found in common appliances are made from metallic resistance alloys such as Fe-Cr-Al and Ni-Cr(Fe).

They have the ability to produce temperatures hot enough to get the element to glow red hot, in the neighborhood of 1112°F (600°C) and above.

Main Characteristics of Fe-Cr-Al High Resistance and Electric Heating Alloys

Alloy Nomenclature
Performance
 1Cr13Al4 0Cr25Al5 0Cr21Al6 0Cr23Al5 0Cr21Al4 0Cr21Al6Nb 0Cr27Al7Mo2
Main Chemical Composition Cr 12.0-15.0 23.0-26.0 19.0-22.0 20.5-23.5 18.0-21.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 4.5-6.5 5.0-7.0 4.2-5.3 3.0-4.2 5.0-7.0 6.0-7.0
Cr opportune opportune opportune opportune opportune opportune opportune
Fe Rest Rest Rest Rest Rest Rest Rest
Nb0.5 Mo1.8-2.2
Max. continuous
service temp.
 950 1250 1250 1250 1100 1350 1400
Resistivity at 20ºC
(μΩ·m)
 1.25 1.42 1.42 1.35 1.23 1.45 1.53
Density (g/cm 3 ) 7.4 7.1 7.16 7.25 7.35 7.1 7.1
Thermal conductivity
(KJ/m·h·ºC)
 52.7 46.1 63.2 60.2 46.9 46.1 45.2
Coefficient of lines
expansion (α×10 -6 /ºC)
 15.4 16 14.7 15 13.5 16 16
Melting point
(approx.) (ºC)
 1450 1500 1500 1500 1500 1510 1520
Tensile strength
(N/mm 2 )		 580-680 630-780 630-780 630-780 600-700 650-800 680-830
Elongation atrupture (%) >16 >12 >12 >12 >12 >12 >10
Variation of area (%) 65-75 60-75 65-75 65-75 65-75 65-75 65-75
Repeat bending
frequency (F/R)		 >5 >5 >5 >5 >5 >5 >5
Hardness (H.B.)
 200-260 200-260 200-260 200-260 200-260 200-260 200-260
continuous service
time (Hours/ ºC)
 -- ≥80/1300 ≥80/1300 ≥80/1300 ≥80/1250 ≥50/1350 ≥50/1350
Micrographic structure Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
Magnetic properties Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic

0Cr23Al5 Resistance Heating Wire 0.05mm-10mm For Heater Resistor Furnaces

0Cr23Al5 Resistance Heating Wire 0.05mm-10mm For Heater Resistor Furnaces

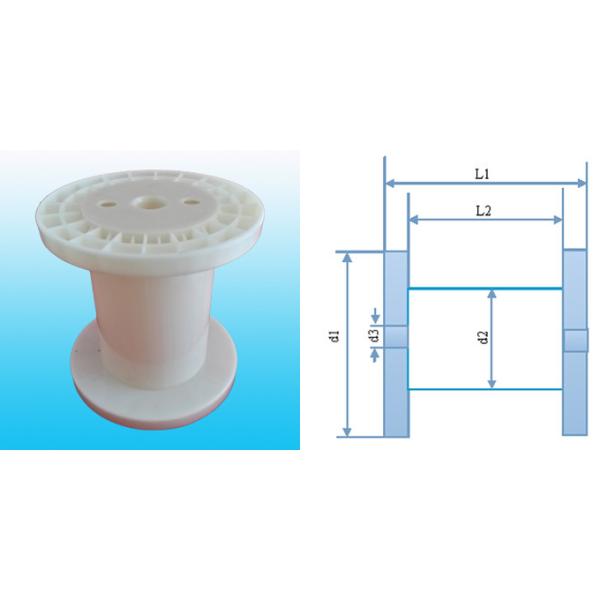

No. Spool Model Outer Diameter
(d1)		 Trunk
Diameter(d2)		 Inner
Diameter(d3)		 Inner Height(L2) Total height
(L1)		 Weight of Spool Rated load weight
1 DIN 125 125mm 65mm 20-25mm 100mm 120mm 0.18kg 2-3kg
2 DIN 160 160mm 99.3mm 22.03mm 129mm 160mm 0.3kg 5-7kg
3 DIN 200 200mm 125.31mm 23.06mm 160mm 200mm 0.62-0.66kg 10-15kg
4 DIN 250 250mm 160mm 20.73mm 160mm 200mm 1kg 20-25kg
5 NS-4 118.83mm 75.4mm 21.27mm 129.33mm 148.14mm 2-3kg

0Cr23Al5 Resistance Heating Wire 0.05mm-10mm For Heater Resistor Furnaces


0Cr23Al5 Resistance Heating Wire 0.05mm-10mm For Heater Resistor Furnaces
1. How can I get a quotation from you?
You can leave us message or send us a email and we will reply every message in time.
Or we may talk on line by skype & wechat.
And you can also find our contact information on contact page.
2. Can I get samples before order?
Yes, of course. Can send you small piece for you to check quality.
3. What is your delivery time?
A. The time of delivery is usually around 7-25 days according to the products you need.
4. What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L.
L/C is also acceptatble .
5. How can you garantee what I got will be good?
First of all, the material origin in TISCO, JISCO, etc and we can offer MTC from the steel mill.
Also, we accept third-party test.
6. How do you make our business long-term and good relationship?
A. We keep good quality and competitive price to ensure our customers benefit ;
B. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from

Looking for resistance wire supplier ? We have a wide selection at good prices to help you get creative. All the resistance wires are quality guaranteed. We are China Origin Factory of resistance wire. If you have any question, please feel free to contact us.
