Specifications
Brand Name :
VANFORGE
Certification :
ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per month
Delivery Time :
30 days
Packaging Details :
Seaworthy package for export
Material :
Austenitic stainless steels, duplex stainless steels
Process :
Forged, machined
Treatment :
Stress-relieved
Surface :
Bright
Application :
Petrochemical, chemical, paper and pulp
Feature :
High precision
Standard :
ANSI, ASTM, ASME, EN, DIN, JIS, GOST
Price :
Negotiable
Description

ASTM A182 ASME B16.5 150LBS forged stainless steel welding neck flange

Vanforge holds a large stock of ANSI/ASME flanges in various types of stainless steels. Our program of stainless ANSI/ASME flanges covers the following materials:

  • Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
  • Duplex stainless steel: UNS S31803 / EN 1.4462
  • Super-duplex stainless steel: UNS S32750 / EN 1.4410

Standard specification for ANSI/ASME flanges from stock

Flanges, forged, ASTM A182, F304/304L or F316/316L (dual marked and certified), ASME B16.5, annealed and fully machined, raised face, smooth finish (125-250 RMS / 3.2-6.3µM) to MSS-SP6, hardness to NACE MR0175 latest edition. IC checked to ASTM A262 E and PMI tested.

Vanforge's ANSI/ASME flanges are certified according to EN 10204/3.1.

Stainless steel welding neck flange, 150LBS

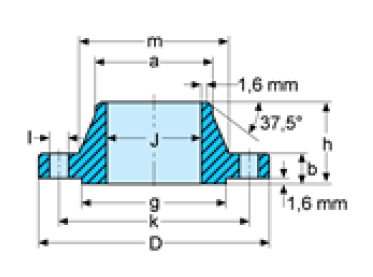

Technical date:

Durable ASTM ASME Annealed Forged Steel Flange Fully Machined High Hardness

ASTM A182, ASME B16.5
Sch10S / 40S / 80S / Std

Raised face, smooth finish (125-250 RMS / 3.2-6.3 µm)

● = Sch 40S/Std
■ = Sch 10S
x = Sch 10S / 40S / 80S

Product code examples:

●: FFWN-F53-2-150-40S
●: FFWN-304L-20-150-STD
■: FFWN-316L-2-150-10S

Pipe

Flange

Hub

Raised face

Drilling template

Weight

Standard

Nom.size

O.D.

D

J

b

h

a

m

g

l

k

No. of
holes

kg/pce

ASTM
304L

ASTM
316L

F51
UNS
S31803

F53
UNS
S32750

in.

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm
1/2
3/4
1
1 ¼		 21.3
26.7
33.4
42.2		 88.9
98.6
108
117.3		 15.7
20.8
26.7
35.1		 11.2
12.7
14.2
15.7		 47.8
52.3
55.6
57.2		 21.3
26.7
33.5
42.2		 30.2
38.1
49.3
58.7		 35.1
42.9
50.8
63.5		 15.7
15.7
15.7
15.7		 60.5
69.9
79.2
88.9		 4
4
4
4		 0.480
0.710
1.010
1.330		 x
x
x
●/■		 x
x
x
●/■		 ●/■
●/■
●/■
●		 ■
●
●/■
■
1 ½
2
2 ½
3		 48.3
60.3
73
88.9		 127
152.4
177.8
190.5		 40.9
52.6
62.7
78		 17.5
19.1
22.4
23.9		 62
63.5
69.9
69.9		 48.3
60.5
73.2
88.9		 65
77.7
90.4
108		 73.2
91.9
104.6
127		 15.7
19.1
19.1
19.1		 98.6
120.7
139.7
152.4		 4
4
4
4		 1.720
2.580
4.110
4.920		 x
x
●/■
x		 x
x
●/■
x		 ●/■
●/■
●/■
●/■		 ●/■
●/■
●/■
-
4
5
6
8		 114.3
141.3
168.3
219.1		 228.6
254
279.4
342.9		 102.4
128.3
154.2
202.7		 23.9
23.9
25.4
28.4		 76.2
88.9
88.9
101.6		 114.3
141.2
168.4
219.2		 134.9
163.5
192
246.1		 157.2
185.7
215.9
269.7		 19.1
22.4
22.4
22.4		 190.5
215.9
241.3
298.5		 8
8
8
8		 6.840
9.200
10.600
17.600		 x
●/■
●/■
●/■		 x
●/■
x
●/■		 ●/■
●/■
●/■
-		 ●/■
●
●
-
10
12
14
16		 273
323.8
355.6
406.4		 406.4
482.6
533.4
596.9		 254.5
304.8
336.5
387.3		 30.2
31.8
34.9
36.5		 101.6
114.3
127
127		 273.1
323.9
355.6
406.4		 304.8
365.3
400
457.2		 323.9
381
412.7
469.9		 25.4
25.4
28.6
28.6		 362
431.8
476.2
539.7		 12
12
12
16		 24.000
36.500
51.000
60.000		 ●/■
●/■
●
●		 ●/■
●/■
●
●		 ●/■
●/■
-
-		 -
-
-
-
18
20
24		 457.2 508.0
609.6		 635.0 698.5
812.8		 438.1 488.9
590.5		 39.6
42.9
47.8		 139.7 144.5
152.4		 457.2 508.0
609.6		 505.0 558.8
663.4		 533.4
584.2
692.2		 31.8
31.8
35.1		 577.9 635.0
749.3		 16
20
20		 68.300 84.500 115.000 ●
●
●		 ●
●
●		 -
-
-		 -
-
-

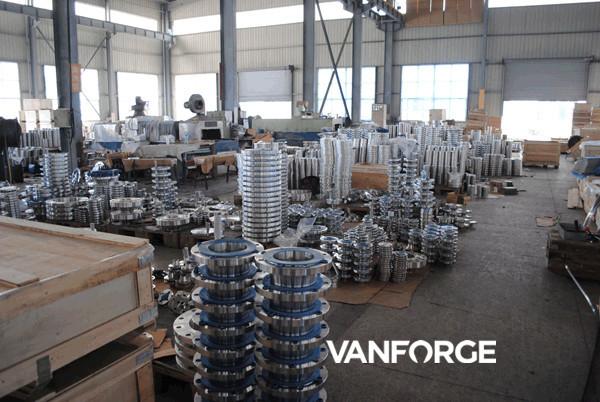

Production facilities:
