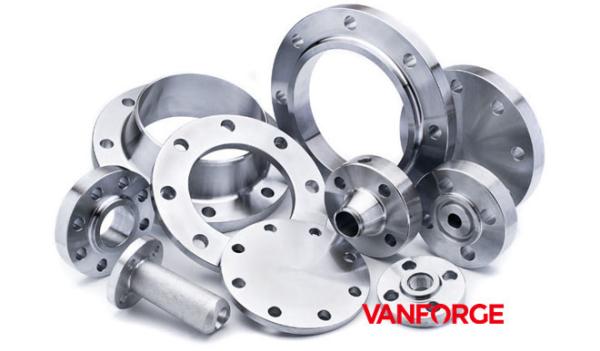

Astm A182 F304l Forged Stainless Steel Flanges , Slip On Forged Steel Flange
Astm A182 F304l Forged Stainless Steel Flanges , Slip On Forged Steel Flange
Astm A182 F304l Forged Stainless Steel Flanges , Slip On Forged Steel Flange
Astm A182 F304l Forged Stainless Steel Flanges , Slip On Forged Steel Flange
Astm A182 F304l Forged Stainless Steel Flanges , Slip On Forged Steel Flange
Astm A182 F304l Forged Stainless Steel Flanges , Slip On Forged Steel Flange
Astm A182 F304l Forged Stainless Steel Flanges , Slip On Forged Steel Flange
Astm A182 F304l Forged Stainless Steel Flanges , Slip On Forged Steel Flange
Specifications
Brand Name :
VANFORGE
Certification :
ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per month
Delivery Time :
30 days
Packaging Details :
Seaworthy package for export
Material :
Austenitic stainless steels, duplex stainless steels
Process :
Forged, machined
Treatment :
Stress-relieved
Surface :
Bright
Application :
Petrochemical, chemical, paper and pulp
Feature :
High precision
Standard :
ANSI, ASTM, ASME, EN, DIN, JIS, GOST
Price :
Negotiable
Description

ASTM A182 ASME B16.5 150LBS forged stainless steel slip on flange

Vanforge holds a large stock of ANSI/ASME flanges in various types of stainless steels. Our program of stainless ANSI/ASME flanges covers the following materials:

  • Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
  • Duplex stainless steel: UNS S31803 / EN 1.4462
  • Super-duplex stainless steel: UNS S32750 / EN 1.4410

Standard specification for ANSI/ASME flanges from stock

Flanges, forged, ASTM A182, F304/304L or F316/316L (dual marked and certified), ASME B16.5, annealed and fully machined, raised face, smooth finish (125-250 RMS / 3.2-6.3µM) to MSS-SP6, hardness to NACE MR0175 latest edition. IC checked to ASTM A262 E and PMI tested.

Vanforge's ANSI/ASME flanges are certified according to EN 10204/3.1.

Stainless steel slip-on flange, 150LBS

Technical date:

Astm A182 F304l Forged Stainless Steel Flanges , Slip On Forged Steel Flange

ASTM A182, ASME B16.5
Schedule 40S / 80S

Raised face, smooth finish (125-250 RMS / 3.2-6.3 µm)

Product code example:

FFSO-304L-2-300

Pipe

Flange

Hub

Raised face

Drilling template

Weight

Standard

Nom.
size

O.D.

D

J

b

h

m

g

l

k

No. of
holes

kg/pce

ASTM
304L

ASTM
316L

in.

mm

mm

mm

mm

mm

mm

mm

mm

mm
1/2
3/4
1
1 ¼		 21.3
26.7
33.4
42.2		 88.9
98.6
108.0
117.3		 22.4
27.7
34.5
43.2		 11.2
12.7
14.2
15.7		 15.7
15.7
17.5
20.6		 30.2
38.1
49.3
58.7		 35.1
42.9
50.8
63.5		 15.7
15.7
15.7
15.7		 60.5
69.9
79.2
88.9		 4
4
4
4		 0.390
0.560
0.780
1.030		 ●
●
●
●		 ●
●
●
●
1 ½
2
2 ½
3		 48.3
60.3
73.0
88.9		 127.0
152.4
177.8
190.5		 49.5
62.0
74.7
90.7		 17.5
19.1
22.4
23.9		 22.4
25.4
28.4
30.2		 65.0
77.7
90.4
108.0		 73.2
91.9
104.6
127.0		 15.7
19.1
19.1
19.1		 98.6
120.7
139.7
152.4		 4
4
4
4		 1.320
2.060
3.280
3.850		 ●
●
●
●		 ●
●
●
●
4
5
6
8		 114.3
141.3
168.3
219.1		 228.6
254.0
279.4
342.9		 116.1
143.8
170.7
221.5		 23.9
23.9
25.4
28.4		 33.3
36.6
39.6
44.5		 134.9
163.6
192.0
246.1		 157.2
185.7
215.9
269.7		 19.1
22.4
22.4
22.4		 190.5
215.9
241.3
298.5		 8
8
8
8		 5.300
6.070
7.450
12.100		 ●
●
●
●		 ●
●
●
●
10
12
14		 273.0
323.8
355.6		 406.4
482.6
533.4		 276.4
327.2
359.2		 30.2
31.8
34.9		 49.3
55.6
57.1		 304.8
365.3
400.0		 323.9
381.0
412.7		 25.4
25.4
28.6		 362.0
431.8
476.2		 12
12
12		 16.500
26.200
36.000		 ●
●
●		 ●
●
●
16
18
20		 406.4
457.2
508.0		 596.9
635.0
698.5		 410.5
461.8
513.1		 36.5
39.6
42.9		 63.5
58.3
73.2		 457.2
505.0
558.8		 469.9
533.4
584.2		 28.6
31.8
31.8		 539.7
577.9
365.0		 16
16
20		 46.000
48.900
61.900		 ●
●
●		 ●
●
●
24 609.6 812.8 616.0 47.8 82.6 698.2 692.2 35.1 749.3 20 86.900 ● ●

Production facilities:

Astm A182 F304l Forged Stainless Steel Flanges , Slip On Forged Steel Flange

Astm A182 F304l Forged Stainless Steel Flanges , Slip On Forged Steel Flange

Astm A182 F304l Forged Stainless Steel Flanges , Slip On Forged Steel Flange

Astm A182 F304l Forged Stainless Steel Flanges , Slip On Forged Steel Flange
